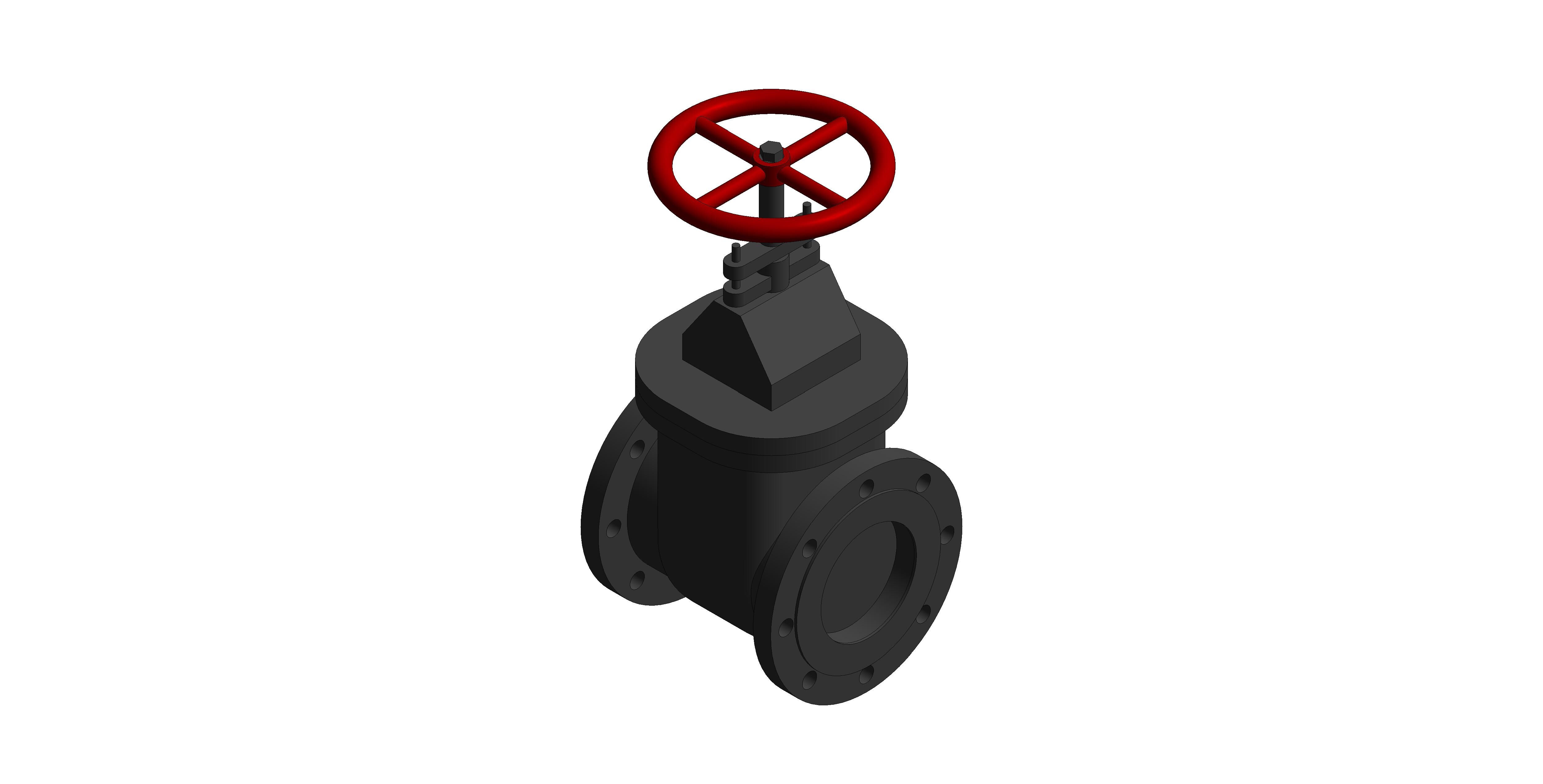

FM57 - Gate Valve - Cast Iron

by Crane Fluid Systems

Download Add to collection

Description

FM57 - 50mm to 300mm

Gate Valve - Cast Iron

PN10 Cast Iron Gate Valve

Features & Benefits

Crane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important
Complete with Bronze trim
Each valve is hydrostatically tested to BS EN 12266-1: 2003
Manufactured in accordance with BS EN 1171: 2002

Size	50mm to 300mm
Pressure Rating	PN10
End Connections	Flanged BS EN 1092-2: PN10
Material	Cast Iron

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

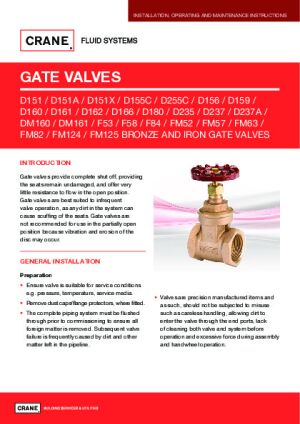

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-fm57/document/object-user-guide
12 HolesNo
4 HolesNo
8 HolesYes
Accessibility Performancen/a
Amm229 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_FM57
Bmm24 mm
Body Radius77 mm
Body Width181 mm
Bonnet Base Height26 mm
Bonnet Disk Depth17 mm
Bonnet Disk Diameter208 mm
Bonnet Gap0 mm
Bonnet Length104 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm220 mm
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionFM57 - Gate Valve - Cast Iron
Dmm369 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-fm57/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-fm57/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-fm57/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-fm57/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-fm57/document/technical-data-sheet
Duration UnitYear
Emm203 mm
End Connector Hole Centre180 mm
End Connector Hole Diameter19 mm
End Connector Raised Height3 mm
Expected Life0
Featuresn/a
Finishn/a
Fmm158 mm
Graden/a
Handle MaterialPVC, Maroon
Handlewheel Radius102 mm
Handwheel Nut Diameter17 mm
Handwheel Nut Height8 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient1125.41
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelFM57 - Gate Valve - Cast Iron
Model NumberFM57
Model ReferenceFM57 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size100mm
Spare Partsn/a
Stem Corner Radius34 mm
Stem Height72 mm
Stem Loop Depth169 mm
Stem Loop Width135 mm
Stem Lower Circle Radius85 mm
Stem Radius10 mm
Top Of Stem132 mm
Type CommentsFM57 - Gate Valve - Cast Iron
Type NameFM57 - Gate Valve - Cast Iron
URLwww.cranefs.com/
Valve MaterialCast Iron - Black
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com

Sustainability & Environmental Data

Not available.
