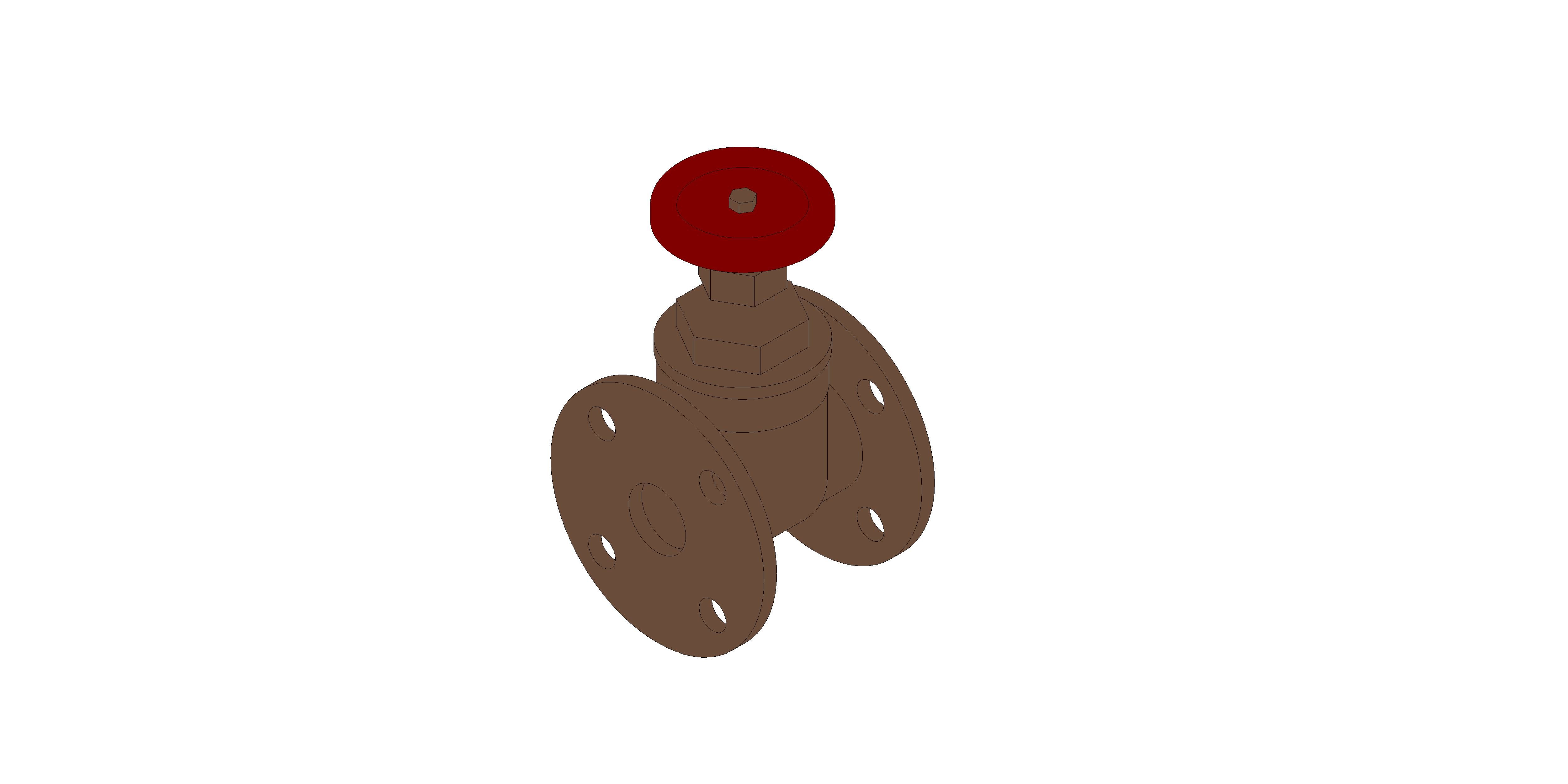

DM160 - Gate Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

DM160 - 20mm to 80mm

Gate Valve - Bronze

PN16 Bronze Gate Valve

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important

Size	20mm to 80mm
Pressure Rating	PN16
End Connections	Flanged BS EN 1092-3 (formerly BS 4504)
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

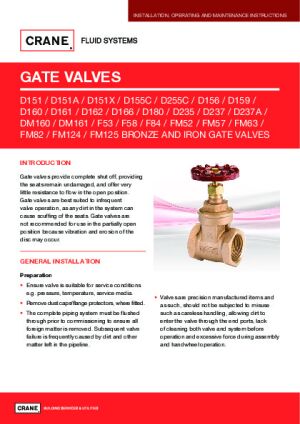

Installation Guide

Maintenance Information

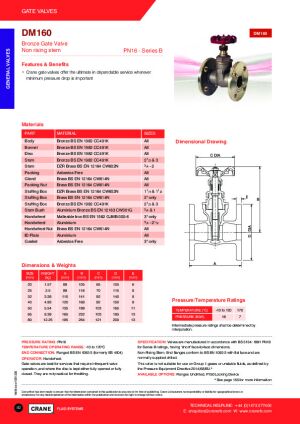

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-dm160/document/object-user-guide
4 HolesYes
8 HolesNo
Accessibility Performancen/a
Amm89 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_DM160
Bmm105 mm
Body Radius23 mm
Body Width77 mm
Bonnet Lower Radius31 mm
Bonnet Lower Thickness13 mm
Bonnet Upper Radius32 mm
Bonnet Upper Thickness4 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm65 mm
Code Performancen/a
Colorn/a
Connection Size20 mm
Connection Size Radius10 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionDM160 - Gate Valve - Bronze
Dmm105 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-dm160/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-dm160/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-dm160/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-dm160/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-dm160/document/technical-data-sheet
Duration UnitYear
Emm6 mm
End Flange Hole Centres75 mm
End Flange Hole Diameter14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel MaterialPVC, Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient38.88
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelDM160 - Gate Valve - Bronze
Model NumberDM160
Model ReferenceDM160 - Gate Valve - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Nut Height17 mm
Packing Nut Hex Height12 mm
Packing Nut Hex Radius14 mm
Packing Ring Height21 mm
Packing Ring Hex Height11 mm
Packing Ring Hex Radius21 mm
Packing Ring Neck Radius11 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size20mm
Spare Partsn/a
Stem Corner Radius9 mm
Stem Loop45 mm
Stem Loop Depth51 mm
Stem Lower Circle Radius26 mm
Stem Radius6 mm
Top Of Stem38 mm
Type CommentsDM160 - Gate Valve - Bronze
Type NameDM160 - Gate Valve - Bronze
URLwww.cranefs.com/
Valve MaterialBronze
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
