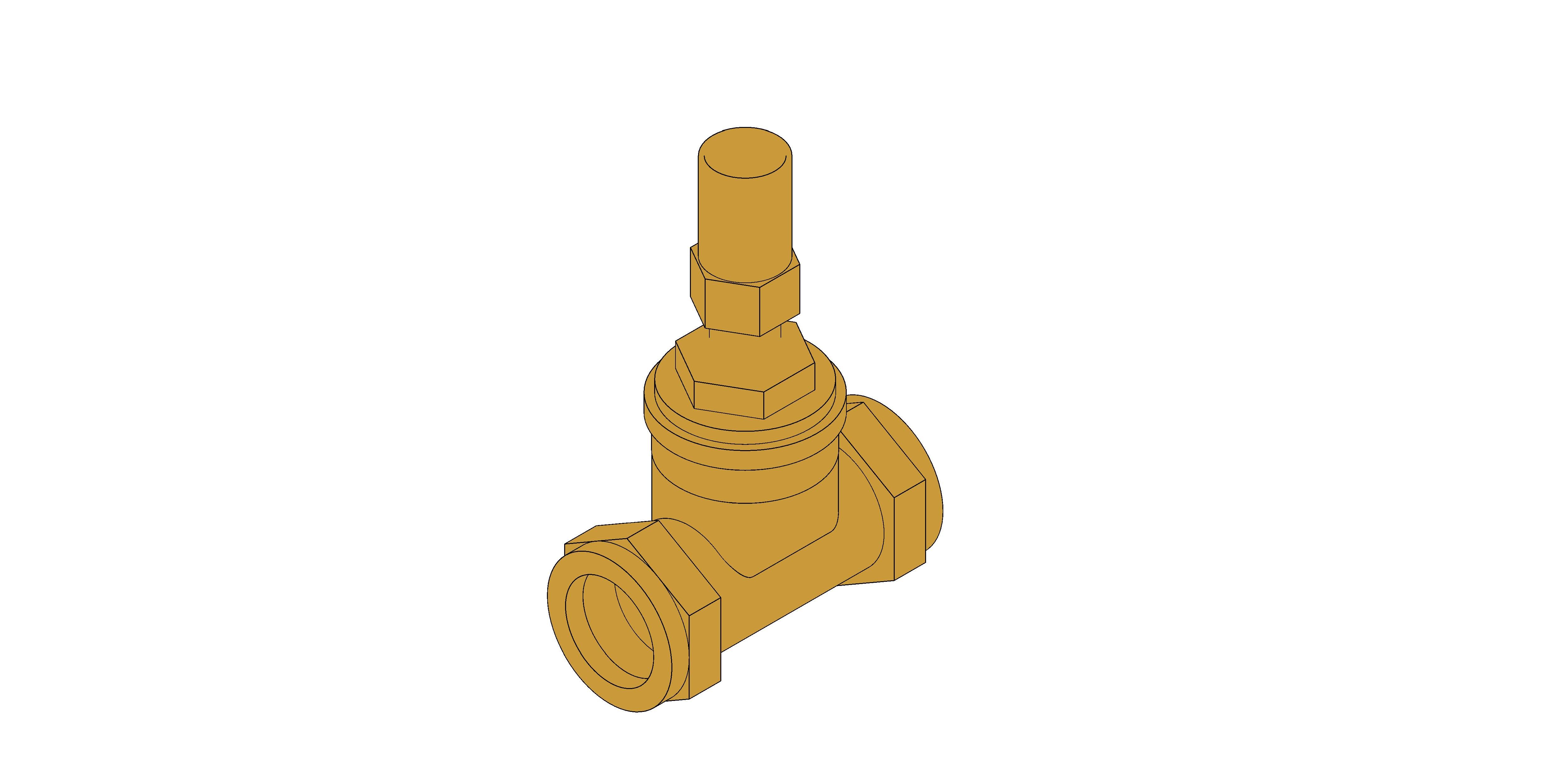

D255C - Gate Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D255C - 15mm to 54mm

Gate Valve - Bronze

PN16 Bronze Gate Valve with Lockshield

Features & Benefits

Robust and high quality bronze body with integral seating surfaces
Offers the ultimate in dependable service wherever minimum pressure drop is important
WRAS approved for use with wholesome (potable) water
Inside screw pattern with non-rising stem

Size	15mm to 54mm
Pressure Rating	PN16
End Connections	Compression ends to BS EN 1057:2006: Half hard R250
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Certificates

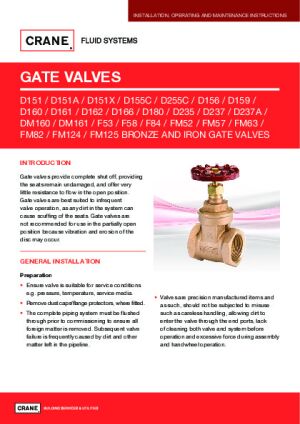

Installation Guide

Maintenance Information

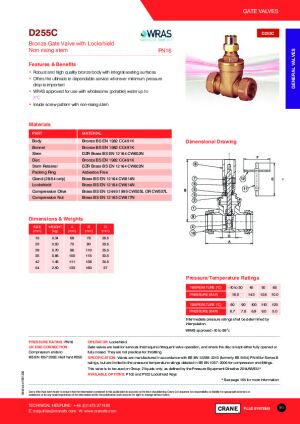

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d255c/document/object-user-guide
Accessibility Performancen/a
Amm69 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_D255C
Bmm78 mm
Body Centre Corner Radius4 mm
Body Centre Depth19 mm
Body Centre Width26 mm
Body Radius11 mm
Body Width40 mm
Bonnet Lower Height8 mm
Bonnet Lower Radius15 mm
Bonnet Middle Height1 mm
Bonnet Middle Radius15 mm
Bonnet Upper Height3 mm
Bonnet Upper Radius13 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Hex Diameter26 mm
Connection Hex Protrusion Depth5 mm
Connection Hex Thickness10 mm
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD255C - Gate Valve - Bronze
Dmm27 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-d255c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d255c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d255c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d255c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d255c/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient21.32
KeynoteS
Lockshield Height33 mm
Lockshield Hex Height11 mm
Lockshield Hex Radius10 mm
Lockshield MaterialAluminum
Lockshield Neck Radius9 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD255C - Gate Valve - Bronze
Model NumberD255C
Model ReferenceD255C - Gate Valve - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Ring Height13 mm
Packing Ring Hex Height8 mm
Packing Ring Hex Radius10 mm
Packing Ring Neck Diameter6 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Spare Partsn/a
Top Of Stem20 mm
Type CommentsD255C - Gate Valve - Bronze
Type NameD255C - Gate Valve - Bronze
URLwww.cranefs.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
