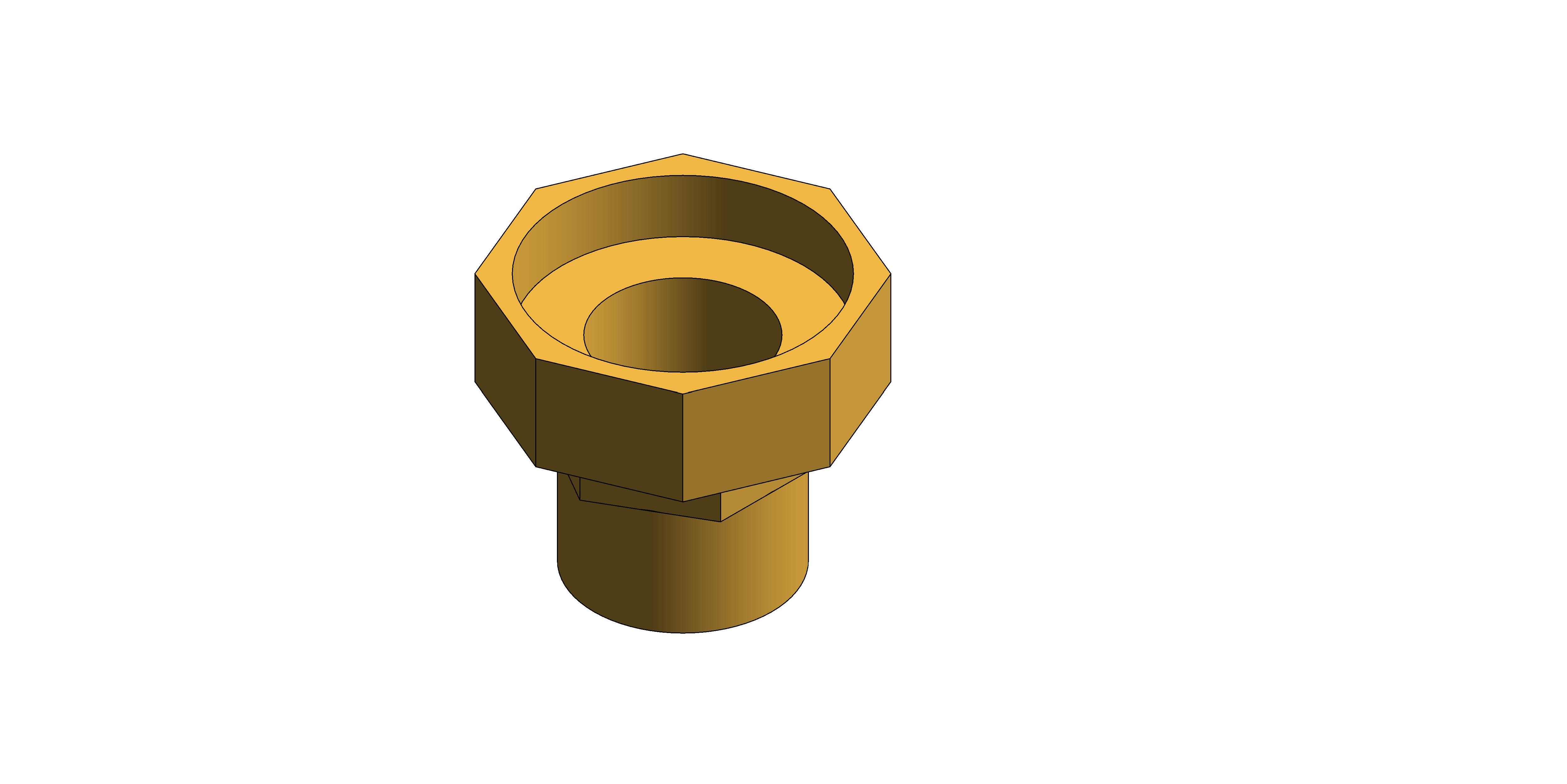

Conical Connection Set (ASV-CS-O-F)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

This product listing is to download the Conical Connection Set (ASV-CS-O-F)

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

01/08/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/object-user-guide
a27.7 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed

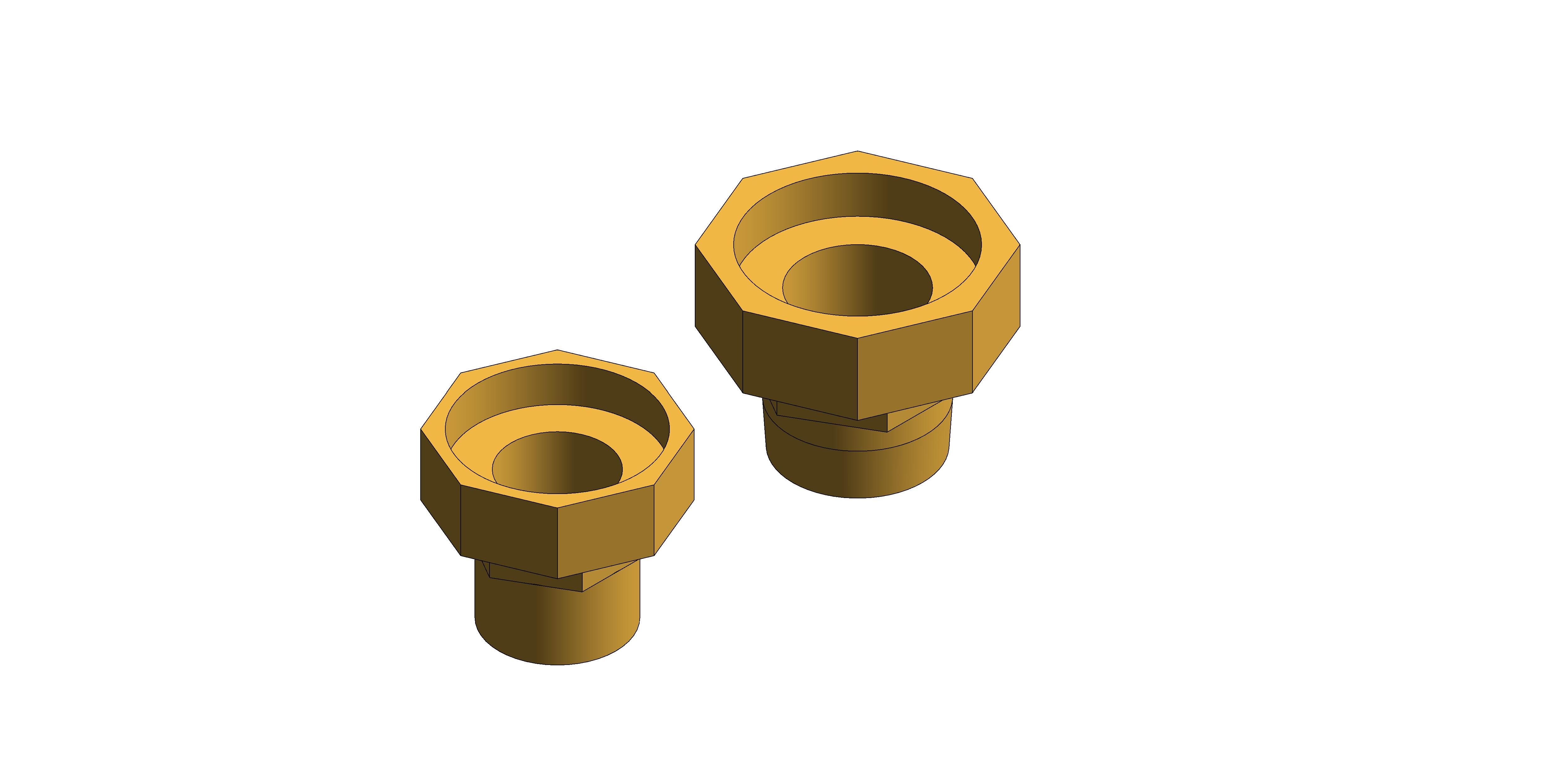

ASV-CS-15-O-FYes
ASV-CS-20-O-FNo
BIM Object NameResideo_ConicalConnectionSet_ASV-CS-O-F
Classification NameUniclass2015
Classification ValuePr_20_29_57_38
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-07-04 T09:00:00
Default Elevation0.0 mm
DescriptionCON. SET TYPE 13, DN15, OT, FLAT
Documentation Certificateswww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/installation-guide
Documentation Literaturewww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/product-literature
Documentation Maintenancewww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/threaded-connection-set-asv-cs-o-f/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
ManufacturerResideo
Manufacturer NameResideo
Materialn/a
ModelASV-CS-15-O-F
Model NumberASV-CS-15-O-F
Model ReferenceCON. SET TYPE 13, DN15, OT, FLAT
NBS DescriptionHex nuts
NBS Noten/a
NBS Object NameResideo - Hex nuts
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth24.0 mm
Nominal Height28.0 mm
Nominal Length28.0 mm
Primary MaterialResideo - Brass
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size28mm (L) x 28mm (H) x 24mm (D)
Spare Partsn/a
Type CommentsCON. SET TYPE 13, DN15, OT, FLAT
Type NameASV-CS-15-O-F
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
