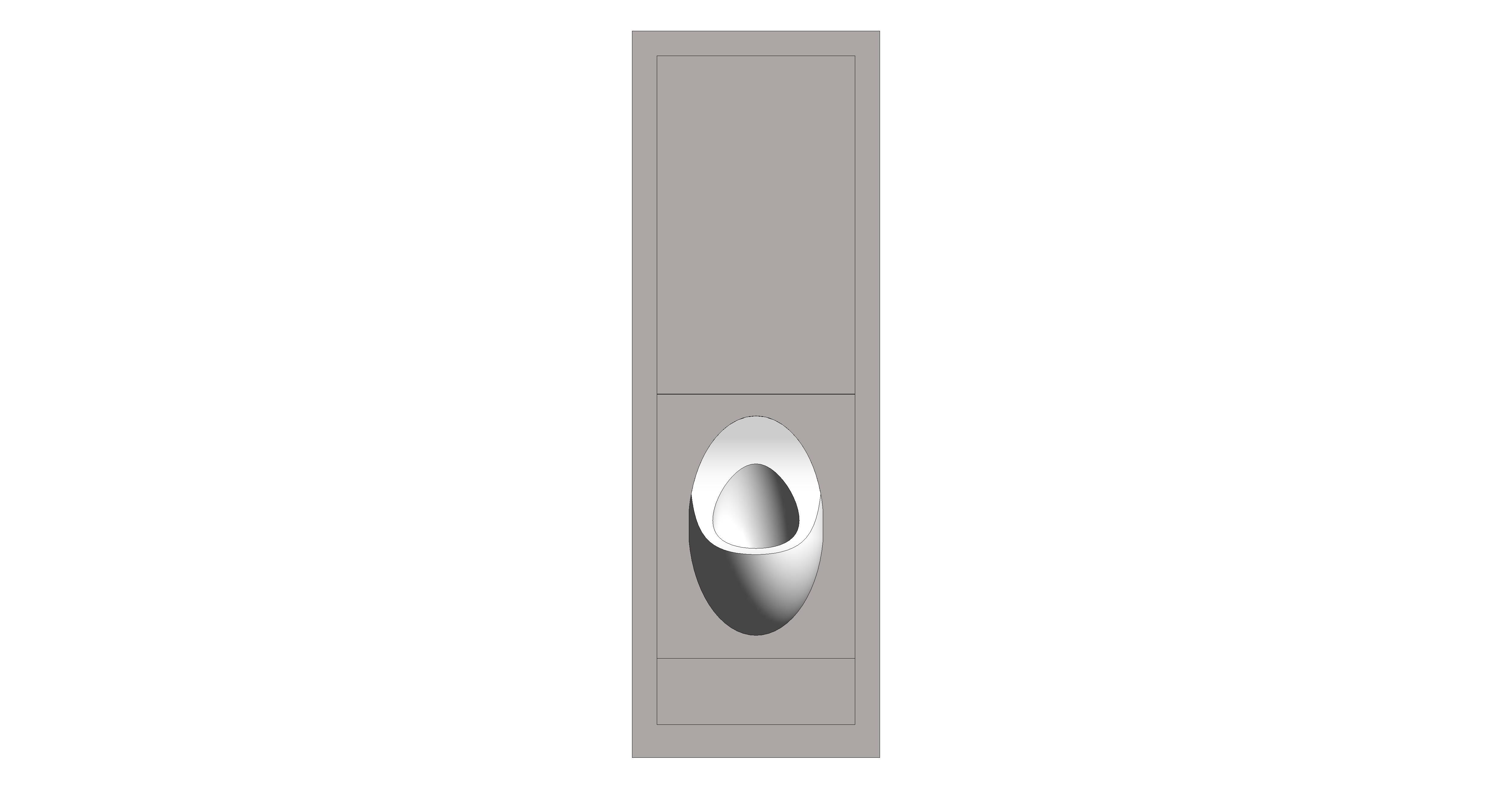

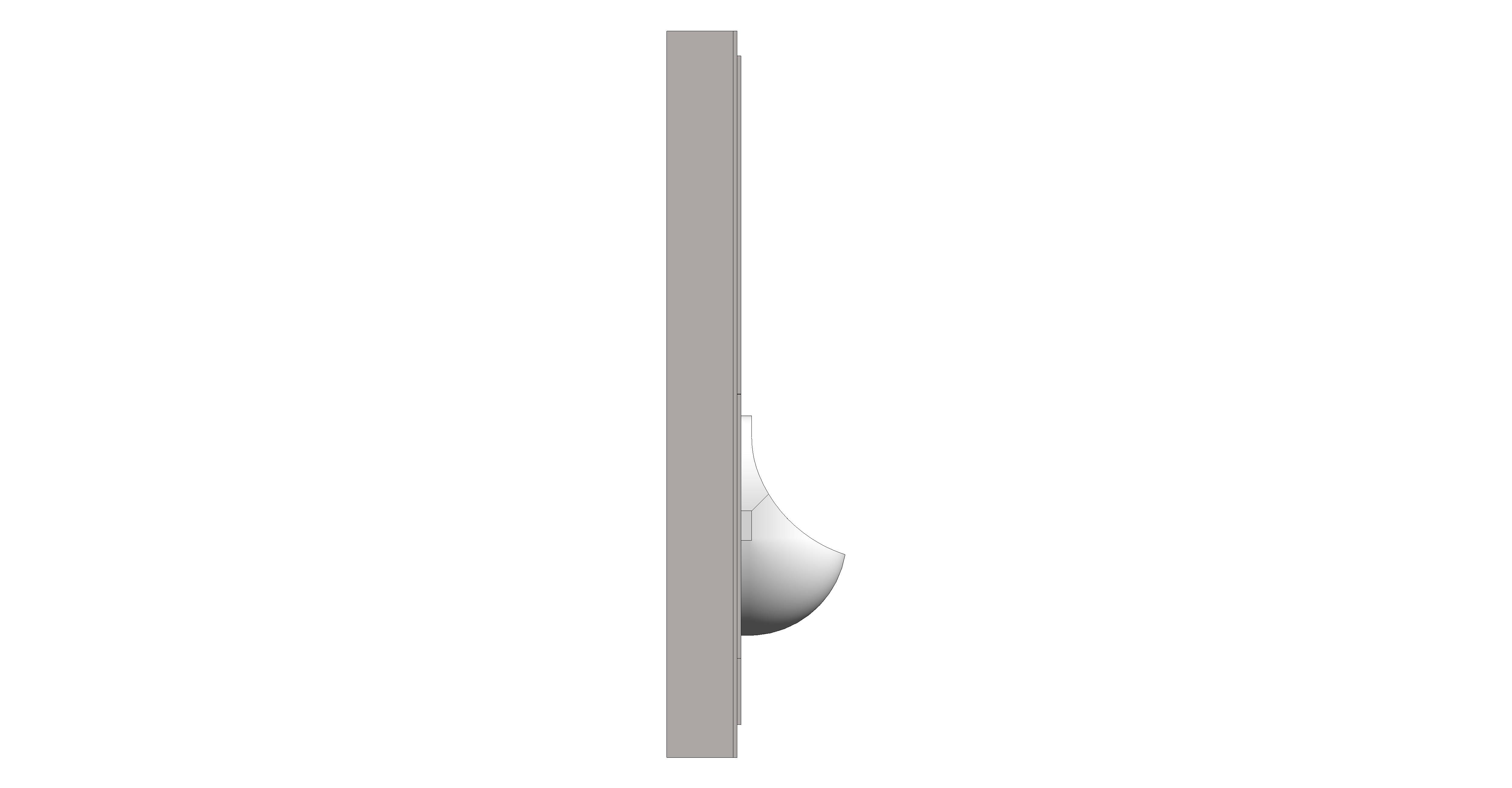

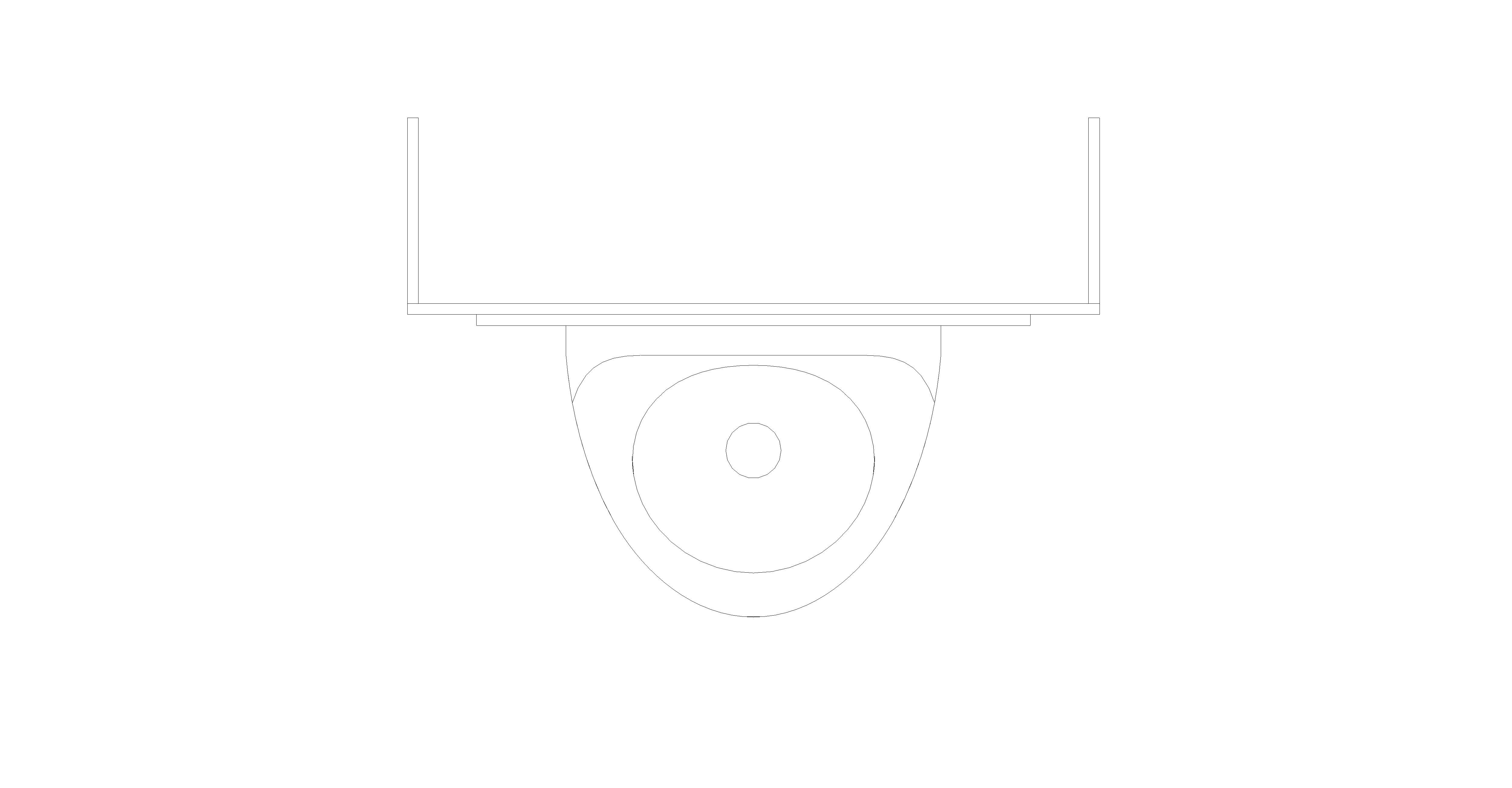

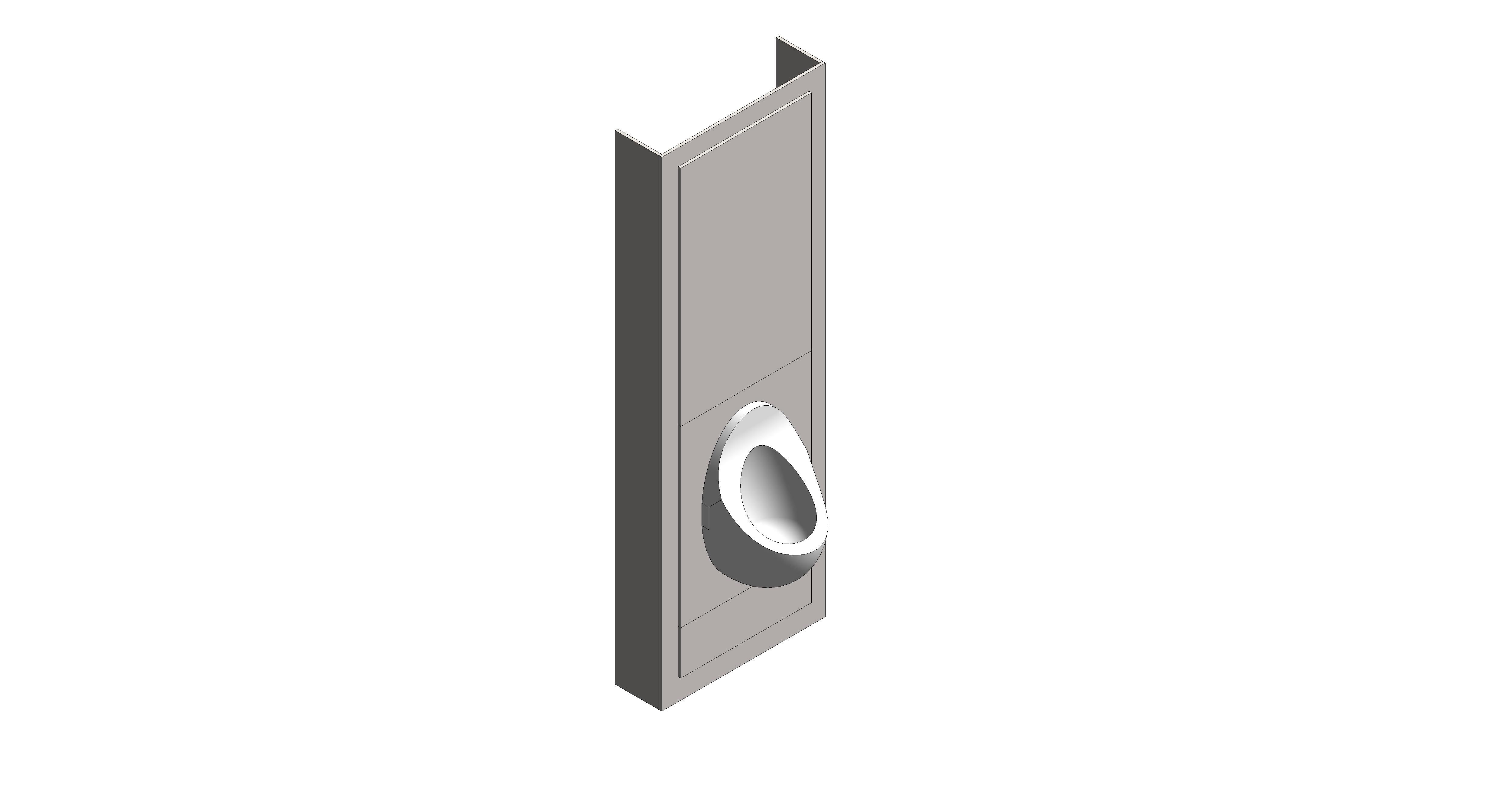

Concealed Trap Urinal Set

Object metadata

• _AuthorRyan Wigham
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Assembly CodeD2010200
• Asset TypeFixed
• BIM Object NameTradeWashrooms_PlumbingFixture_Urinal_1xConcealedTrap
• CategoryPr_40_20_93_82:Wall-hung urinals
• Classification NameUniclass2015
• Classification ValuePr_40_20_93_82
• Code PerformanceBS 5520
• ColorWhite
• ConstituentsUrinal bowl, hanging brackets, concealed urinal cistern, concealed sparge pipework, back inlet spreader and urinal waste
• Created Byspec@tradewashrooms.co.uk
• Created On2020-02-07T09:00:00
• CW ConnectionYes
• CWFU0
• DescriptionPart of our commercial sanitary ware range, this concealed trap urinal set is ideal for individual urinal installations.
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturewww.tradewashrooms.co.uk/urinals/urinal-packs/1-concealed-trap-urinal-set/
• Documentation Maintenancen/a
• Documentation Technicalwww.tradewashrooms.co.uk/urinals/urinal-packs/1-concealed-trap-urinal-set/
• Duration UnitYears
• Expected Life10
• FeaturesConcealed trap urinal bowl for a cleaner washroom look
• FinishVitreous China
• GradeBS 3402
• HW ConnectionYes
• HWFU0
• Ifc Export AsIfcFlowTerminalType
• Ifc Export TypeIfcSanitaryTerminalTypeEnum.URINAL
• KeynoteN13
• Manufacturerspec@tradewashrooms.co.uk
• Manufacturer Nameorders@tradewashrooms.co.uk
• MaterialCeramic
• Material Thickness12 mm
• Model1x Concealed Trap Urinal Set
• Model NumberUR60CONSET1
• Model Reference1x Concealed Trap Urinal Set
• Name1x Concealed Trap Urinal Set
• NBS DescriptionWall-hung urinals
• NBS Object NameTrade Washrooms - Wall-hung urinals
• NBS Office Master Tagn/a
• NBS Reference45-35-70/350
• Nominal Depth410 mm
• Nominal Height665 mm
• Nominal Length315 mm
• Production Year2020
• Referenced StandardBS 3402, BS 5520, EN 13407
• Replacement Costn/a
• Shapen/a
• Size315 x 410 x 665mm
• Spare Partsn/a
• Sustainability PerformanceEN 13407
• Type CommentsUR60CONSET1
• Type Name1x Concealed Trap Urinal Set
• Urinal Height615 mm
• URLwww.tradewashrooms.co.uk/
• Vent ConnectionNo
• Warranty Description25-year warranty on any manufacturing defect
• Warranty Duration Labor0
• Warranty Duration Parts25
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsorders@tradewashrooms.co.uk
• Waste ConnectionYes
• WFU0
