Compression - Female Threaded Elbow

Download Add to collection

Description

BOSS Compression Female Elbow

Object Data

1 Revision

Last Updated

28/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

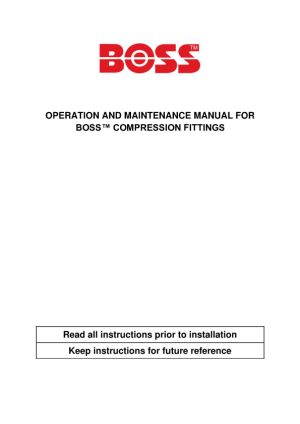

Installation Guide

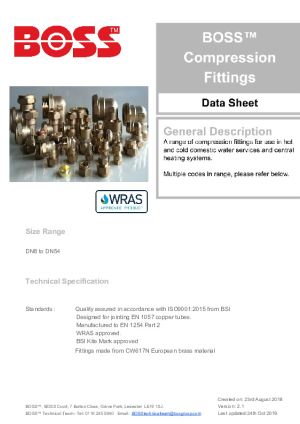

Technical Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirNo
ApplicationFemale Threaded Compression Elbow
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_Compression_FemaleThreadedElbow
BodyDZR
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorDZR
ConnectionCompression
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-12-17 T09:00:00
D121 mm
D1016 mm
D212 mm
D321 mm
D422 mm
D516 mm
D621 mm
D712 mm
D828 mm
D924 mm
DescriptionBOSS Compression Female Elbow 15mm
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings made from CW617N European brass material, Available in sizes 8 to 54 mm, Quality assured in accordance with ISO9001:2008 from BSI,WRAS approved, BSI Kite Mark approved, Designed for jointing EN 1057 copper tubes, Manufactured to EN 1254 Part 2.
FinishDZR
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Hex VisYes
Ifc Export AsIfcPipeFittingType.JUNCTION
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L134 mm
L227 mm
L321 mm
L418 mm
L531 mm
L623 mm
L716 mm
L88 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDZR
Maximum Working Pressure16 Bar
Maximum Working Temperature110°C
ModelBOSS Compression Female Elbow
Model Number62241325
Model ReferenceBOSS Compression Female Elbow 15mm
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth17 mm
Nominal Dia15 mm
Nominal Height17 mm
Nominal Length24 mm
Nominal Thread Dia20 mm
Nominal Width24 mm
Nut Left AF24 mm
Oct VisNo
OilNo
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size15x1/2"
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamNo
Tubing OptionsCopper
Type CommentsBOSS Compression Female Elbow
Type NameBOSS Compression Female Elbow
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
Z114 mm
Z214 mm
