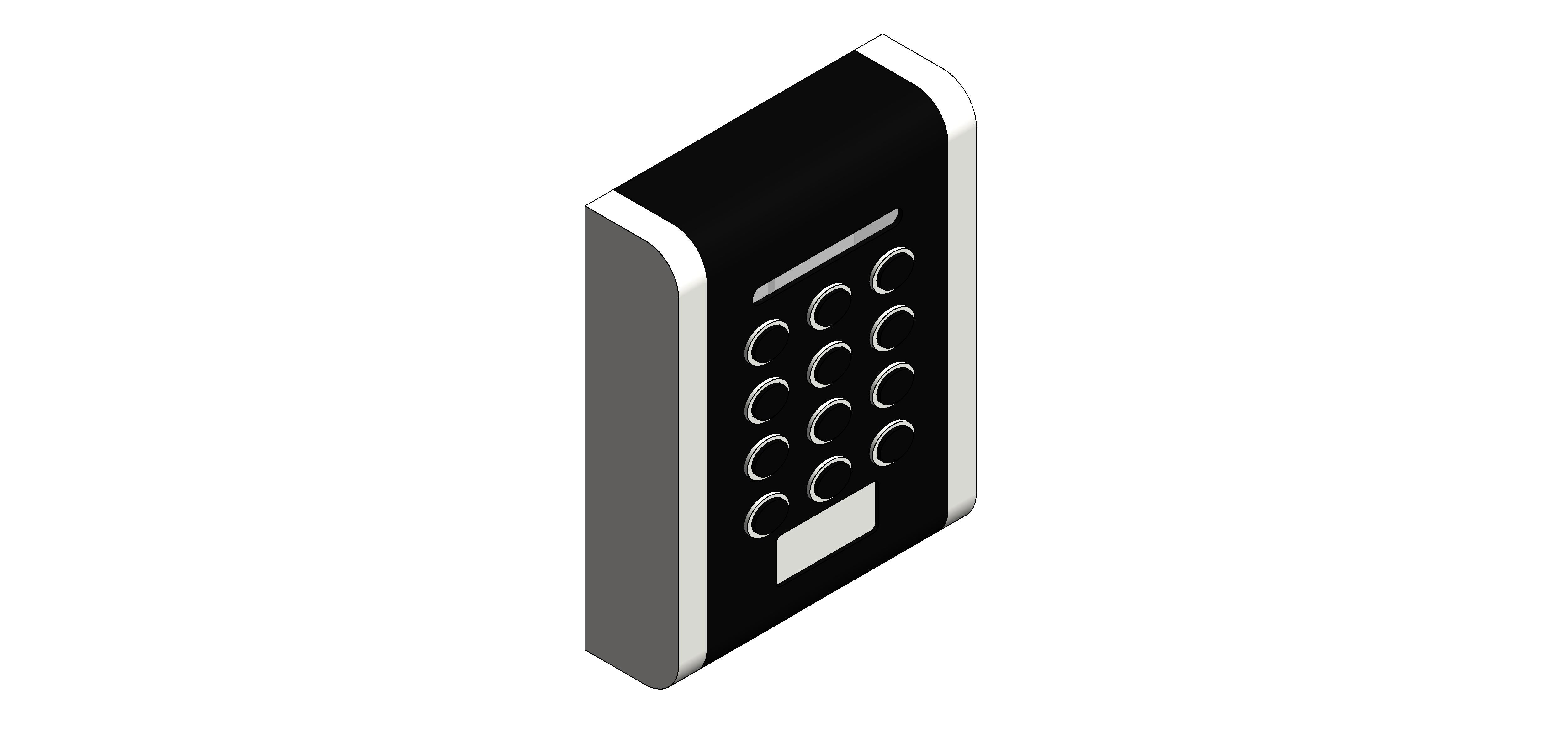

Reader: RFID MT - PIN & Proximity
by Comelit-PAC
Description
SKU: 909020114
Category: Multi-Technology Readers
Tag: 909020114
IP65 rated dual authentication reader designed to fit with most standard electrical backboxes.
Object Data
1 Revision
Last Updated
25/06/2025
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _Authorpacgdxsales@comelit-pac.co.uk
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bypacgdxsales@comelit-pac.co.uk
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/725b2c04-0b2b-445e-a1a6-ab50352e90b3/document/object-user-guide
- Accessibility Performancen/a
- Apparent Load0 VA
- Assembly CodeD50
- Asset TypeFixed
- Audio Visual IndicatorsAudible Sounder and Red/Green LEDs
- BIM Object NameComelit-PAC_AccessControls_(GS3-MT-PIN-Proximity)
- Classification NameUniclass2015
- Classification ValuePr_75_30_30
- Code Performancen/a
- Colorn/a
- Constituentsn/a
- Created Bypacgdxsales@comelit-pac.co.uk
- Created On2025-05-19T09:00:00
- Default Elevation1219 mm
- Depth30 mm
- DescriptionIP65 rated dual authentication reader designed to fit with most standard electrical backboxes.
- Distance To Controller70m / 230ft (reader powered from controller), 500m / 1,640ft (locally powered reader)
- Documentation Certificatescomelit-pac.co.uk/
- Documentation Installation Guidewww.pacgdx.com/wp-content/uploads/pac/instguide/171003_4_MT_PIN_Reader.pdf
- Documentation Literaturecomelit-pac.co.uk/
- Documentation Maintenancecomelit-pac.co.uk/
- Documentation Technicalpacgdx.com/wp-content/uploads/pac/datasheet/909020114_PAC_PIN_MT_DS.pdf
- Duration UnitYears
- Expected Life0
- Featuresn/a
- Finishn/a
- Graden/a
- Height115 mm
- Humidity10% to 85% Relative Humidity
- Ifc Export AsIfcElectricalEquipment
- Ifc Export TypeIfcElectricalEquipmentType
- KeynoteW
- ManufacturerComelit-PAC
- Manufacturer NameComelit-PAC
- Materialn/a
- Maximum Read RangeHF 45 mm / 1.77 in.
- Max Power Consumption0 W
- ModelGS3 MT - PIN & Proximity
- Model Number909020114
- Model ReferenceGS3 MT - PIN & Proximity
- NBS DescriptionElectronic access control and recording products
- NBS Noten/a
- NBS Object NameComelit-PAC - Electronic access control and recording products
- NBS Office Master Tagn/a
- NBS Referencen/a
- Nominal Depth30 mm
- Nominal Height115 mm
- Nominal Length89 mm
- Number Of Poles1
- Power Factor1
- Product Documentation Linkpacgdx.com/wp-content/uploads/pac/datasheet/909020114_PAC_PIN_MT_DS.pdf
- Production Year2025
- Product MaterialComelit-PAC - Polycarbonate - Black
- Product Page URLpacgdx.com/product/reader-rfid-mt-pin-proximity/
- Recommended CablingPAC output 6-core 24 AWG alarm cable (unscreened), Wiegand output 5-core 22 AWG cable
- Referenced Standardn/a
- Replacement Costn/a
- R Fid FrequencyLow Frequency (125kHz and 153.6kHz) and High Frequency (13.56MHz)
- ShapeRectangle
- Size30mm (D) x 115mm (H) x 89mm (W)
- Spare Partspacgdxsales@comelit-pac.co.uk
- Supported ID Device FormatsPAC OPS™, PAC OPS™ Lite, PAC, KeyPAC
- Supported Output ProtocolsPAC64, PAC32, PAC, Wiegand
- Tamper OutputCertified to EN 50131-1 and EN 50131-3
- Temperature Range-40°C to +66°C / -40°F to 151°F
- Type CommentsGS3 MT - PIN & Proximity
- Type NameGS3 MT - PIN & Proximity
- URLcomelit-pac.co.uk/
- Voltage12 – 24V
- Warranty DescriptionLifetime against electronic failure
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborpacgdxsales@comelit-pac.co.uk
- Warranty Guarantor Partspacgdxsales@comelit-pac.co.uk
- Weight Mass0.29 kg
- Width89 mm
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
