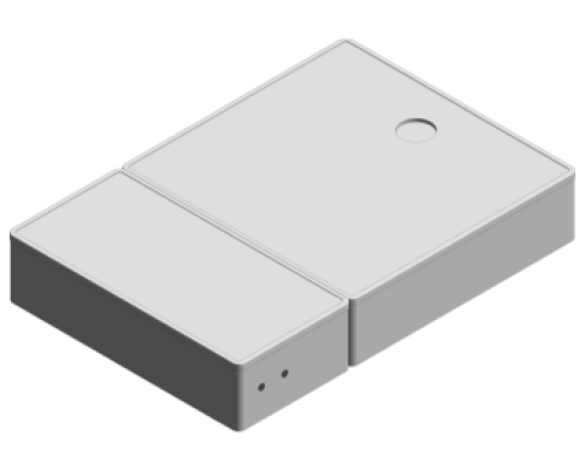

Cold Cabinet

by Aspen Pumps

Download Add to collection

Description

A superior stainless steel refrigeration pump built to last. Designed to fit beneath refrigeration units, it pumps away defrost water and filters debris

This download is for the Cold Cabinet Range of condensate removal pump components and includes the following types;

Top Inlet - FP2119
Side Inlet - FP2120

Object Data

1 Revision

Last Updated

24/05/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

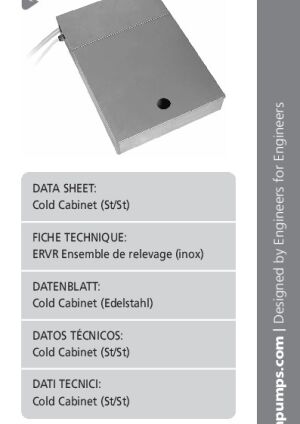

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090
Asset TypeFixed
BIM Object NameMechanicalEquipment_CondensatePump_AspenPumps_ColdCabinet
Classification NameUniclass2015
Classification ValuePr_65_53_86_05
Code Performancen/a
ColorStainless Steel
Conn Angle90.00 °
Conn Length40 mm
Constituentsn/a
Created Bysales@aspenpumps.com
Created On2017-05-16T00:00:00
Default Elevation1219 mm
DescriptionA superior stainless steel refrigeration pump built to last. Designed to fit beneath refrigeration units, it pumps away defrost water and filters debris.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2162
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2161
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPump
Ifc Export TypeIfcPumpType
Inlet Diameter50 mm
Inlet Radius25 mm
KeynoteR
ManufacturerAspen Pumps
Manufacturer NameAspen Pumps
MaterialStainless Steel
ModelCold Cabinet - Top Inlet
Model NumberFP2119
Model ReferenceCold Cabinet - Top Inlet
NBS DescriptionAutomatic condensate pumps
NBS Object NameAspen Pumps - Cold Cabinet - Condensate Removal Pump
NBS Office Master Tagn/a
NBS Reference90-20-75/400
Nominal Depth400 mm
Nominal Height100 mm
Nominal Length585 mm
Production Year2017
ShapeRectangle
Side InletNo
Size585x400x100mm
Top InletYes
Type CommentsFP2119
Type NameCold Cabinet - FP2119 -Top Inlet - Condensate Removal Pump
URLwww.aspenpumps.com/
Warranty Duration Laborsales@aspenpumps.com
Warranty Duration Partssales@aspenpumps.com
Warranty Duration UnitYear
