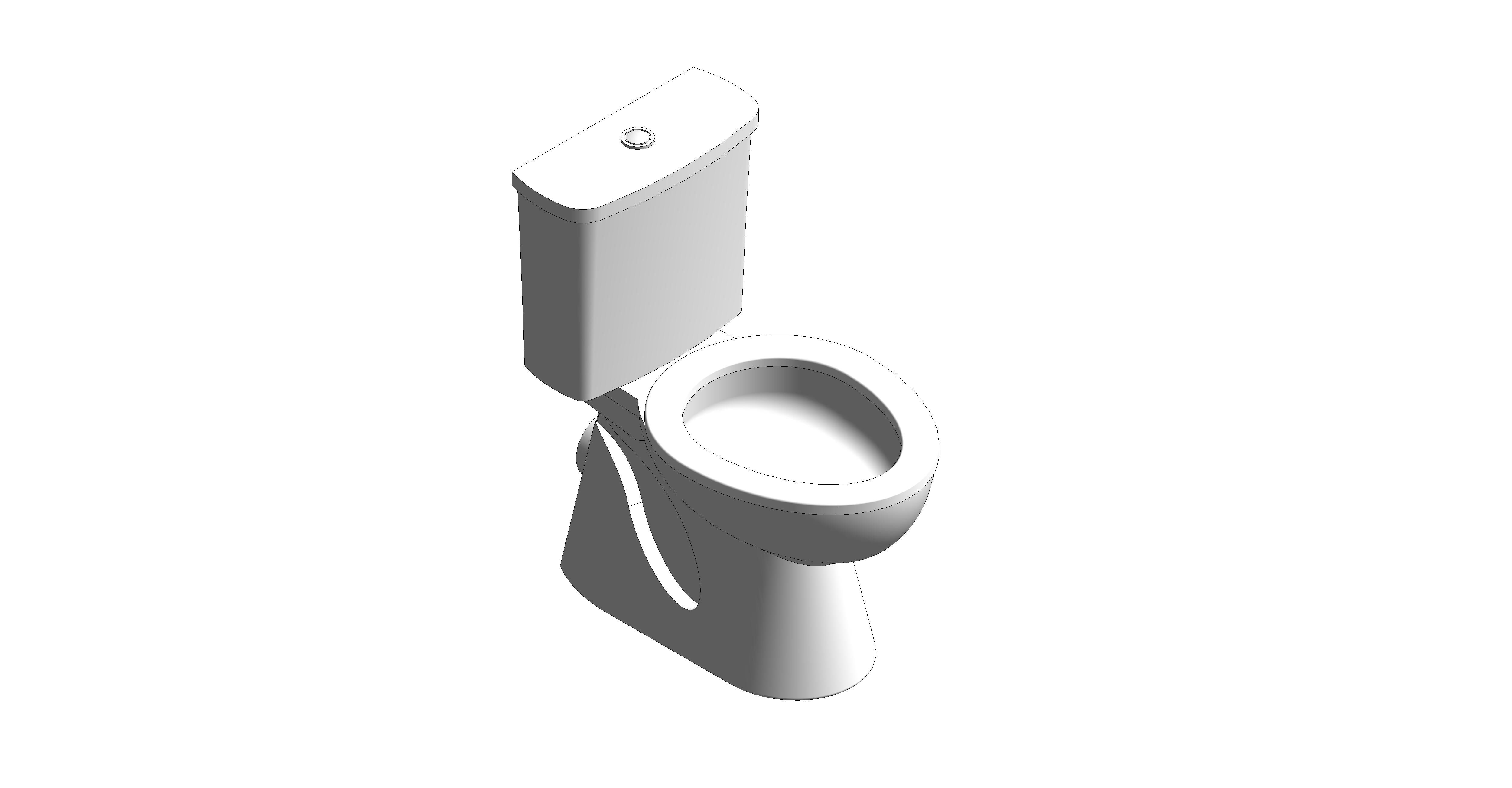

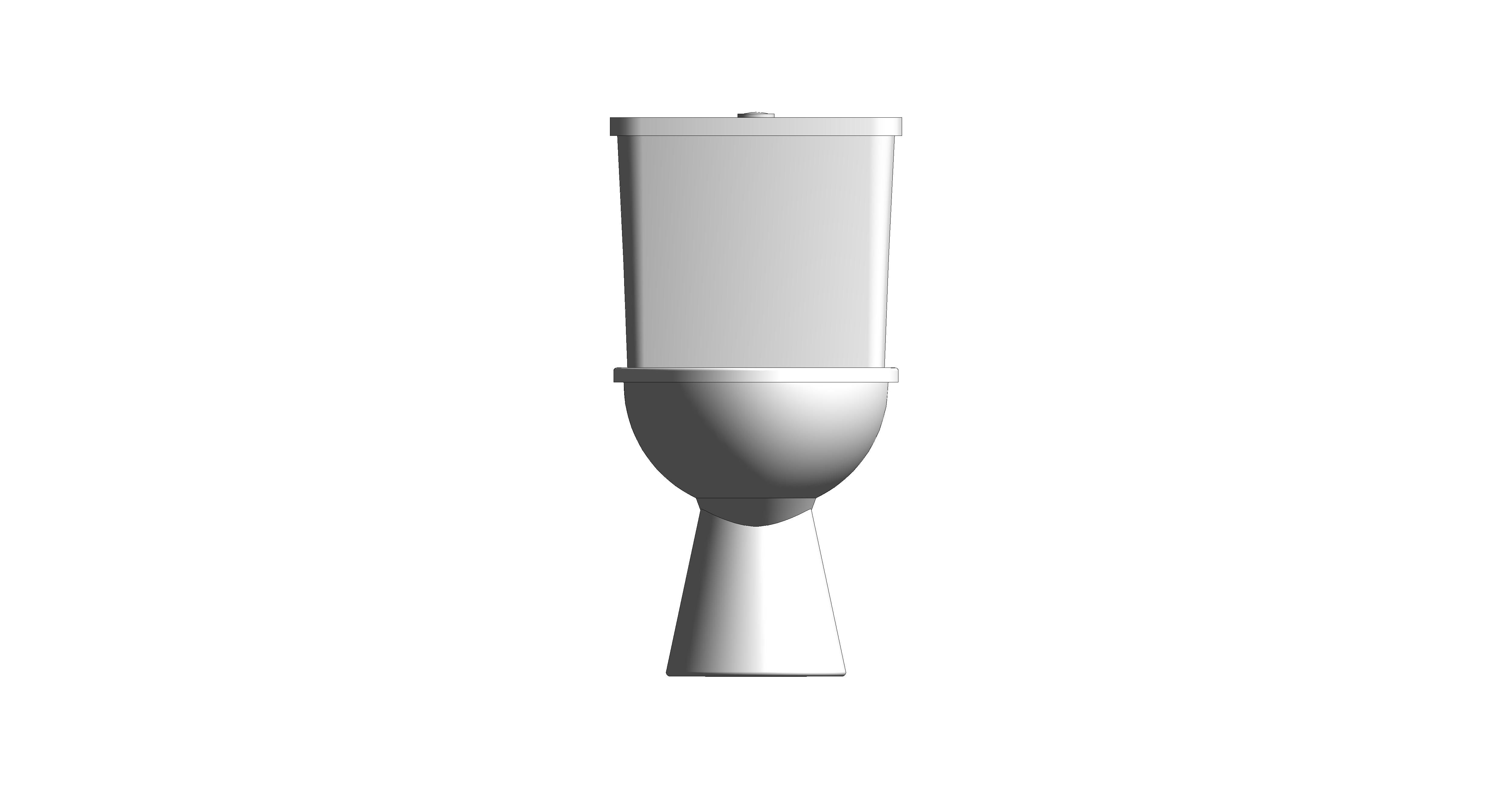

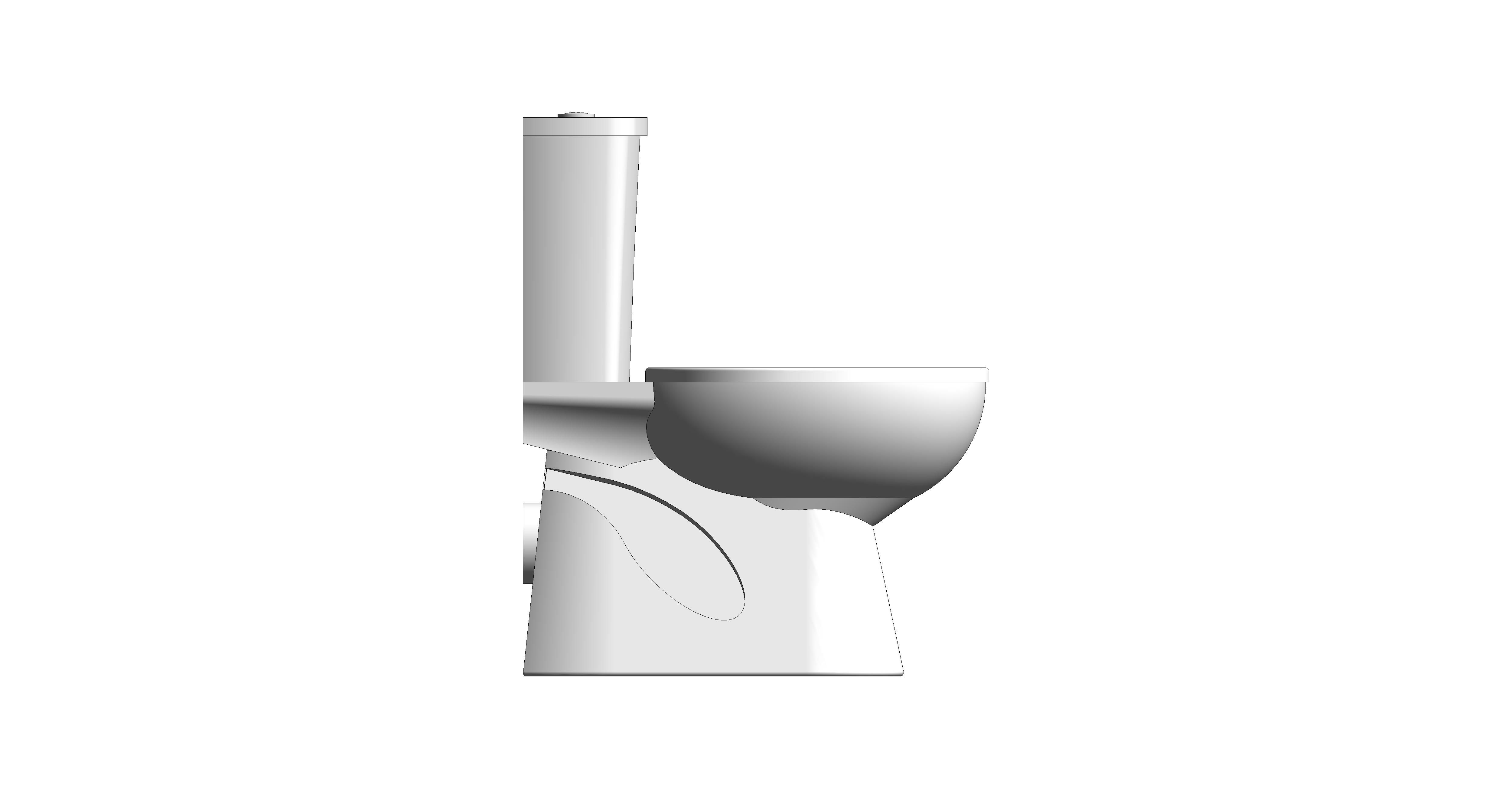

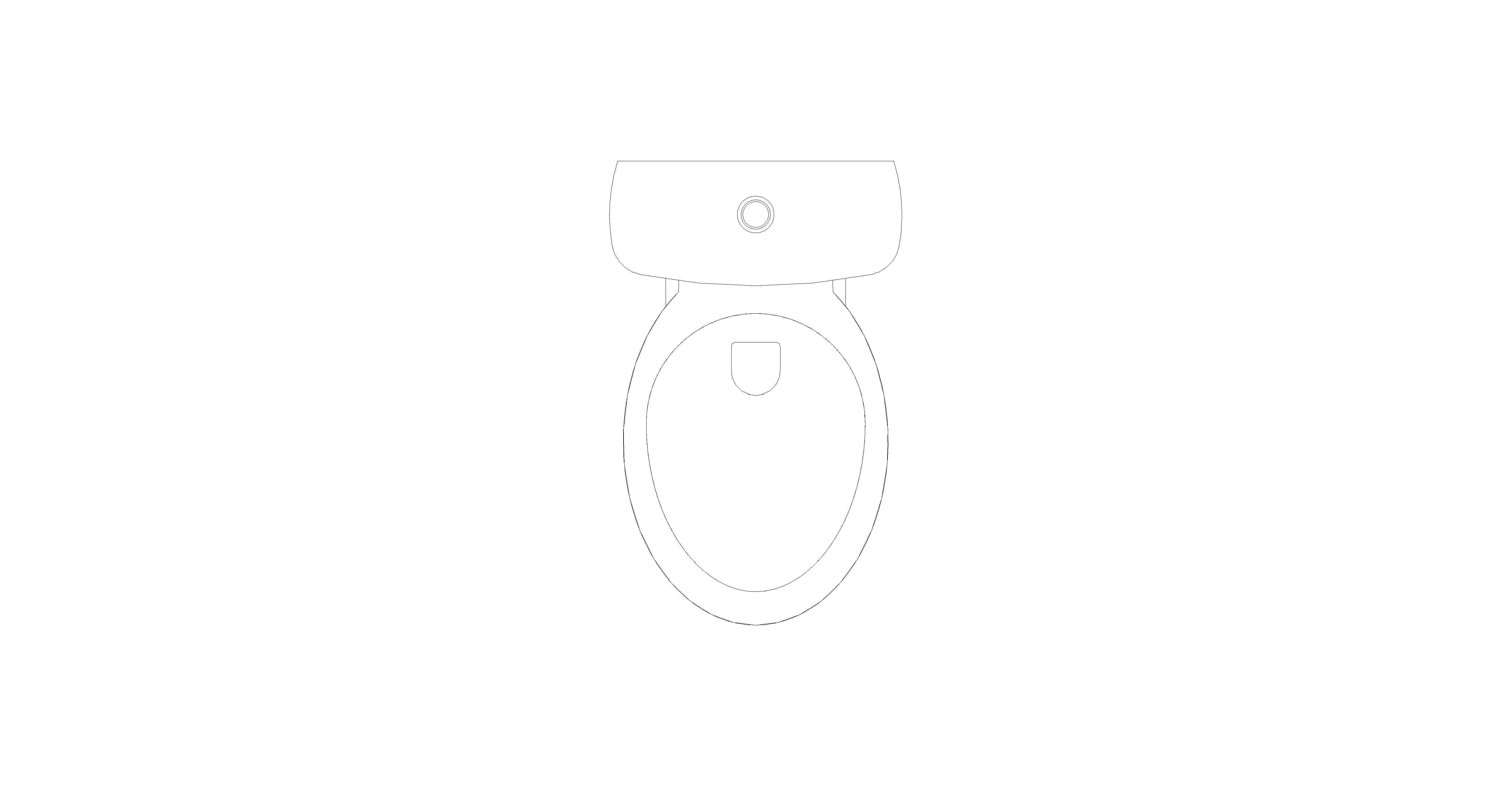

Close Coupled WC Pack

Description

Vitreous china close coupled WC pack including a soft-close toilet seat and 6/4 litre dual flush cistern (push button operation). Cistern is right-hand bottom inlet and pan is horizontal outlet. WC pan fixes to floor using side fixing bracket supplied.

Object Data

1 Revision

Last Updated

05/11/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

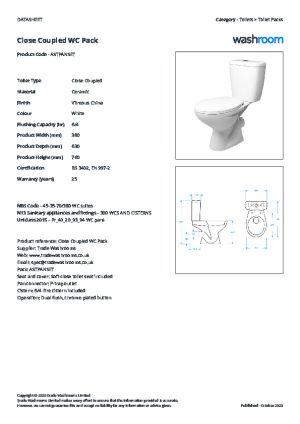

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_WC_CloseCoupledWCPack
CategoryPr_40_20_93_94:WC pans
Classification NameUniclass2015
Classification ValuePr_40_20_93_94
Code PerformanceBS 7358
ColorWhite
ConstituentsWC pan, toilet seat and cistern
Created Byspec@tradewashrooms.co.uk
Created On2019-06-14T09:00:00
CW ConnectionNo
CWFU0
DescriptionVitreous china close coupled WC pack including a soft-close toilet seat and 6/4 litre dual flush cistern (push button operation).
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/toilets/toilet-packs/close-coupled-wc-pack/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/toilets/toilet-packs/close-coupled-wc-pack/
Duration UnitYears
Expected Life10
FeaturesCistern is right-hand bottom inlet and pan is horizontal outlet. WC pan fixes to floor using side fixing bracket supplied.
FinishVitreous China
GradeBS 3402
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.TOILETPAN
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Namespec@tradewashrooms.co.uk
MaterialCeramic
ModelClose Coupled WC Pack
Model NumberASTPANSET
Model ReferenceClose Coupled WC Pack
NameClose Coupled WC Pack
NBS DescriptionWC pans
NBS Object NameTrade Washrooms - WC pans
NBS Office Master Tagn/a
NBS Reference45-35-70/384
Nominal Depth380 mm
Nominal Height760 mm
Nominal Length630 mm
Primary MaterialCeramic, White
Production Year2019
Referenced StandardBS 3402, EN 997-2
Replacement Costn/a
Seat MaterialTrade Washrooms - White (78E)
Shapen/a
Size630 x 380 x 760mm
Spare Partsn/a
Sustainability PerformanceEN 997-2
Type CommentsASTPANSET
Type NameClose Coupled WC Pack
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description25-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
