Cloakroom Basin

by Trade Washrooms

Download Add to collection

Description

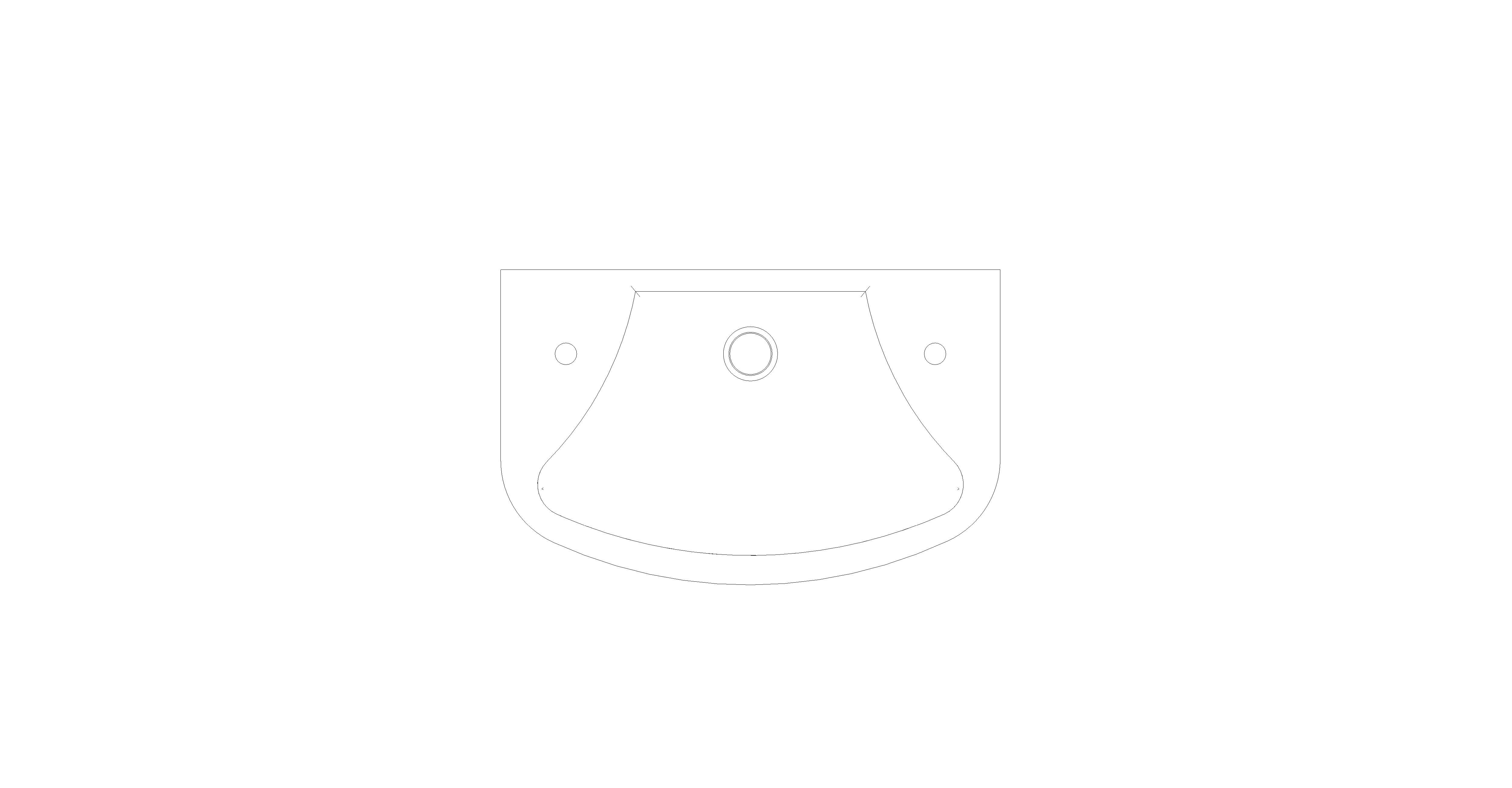

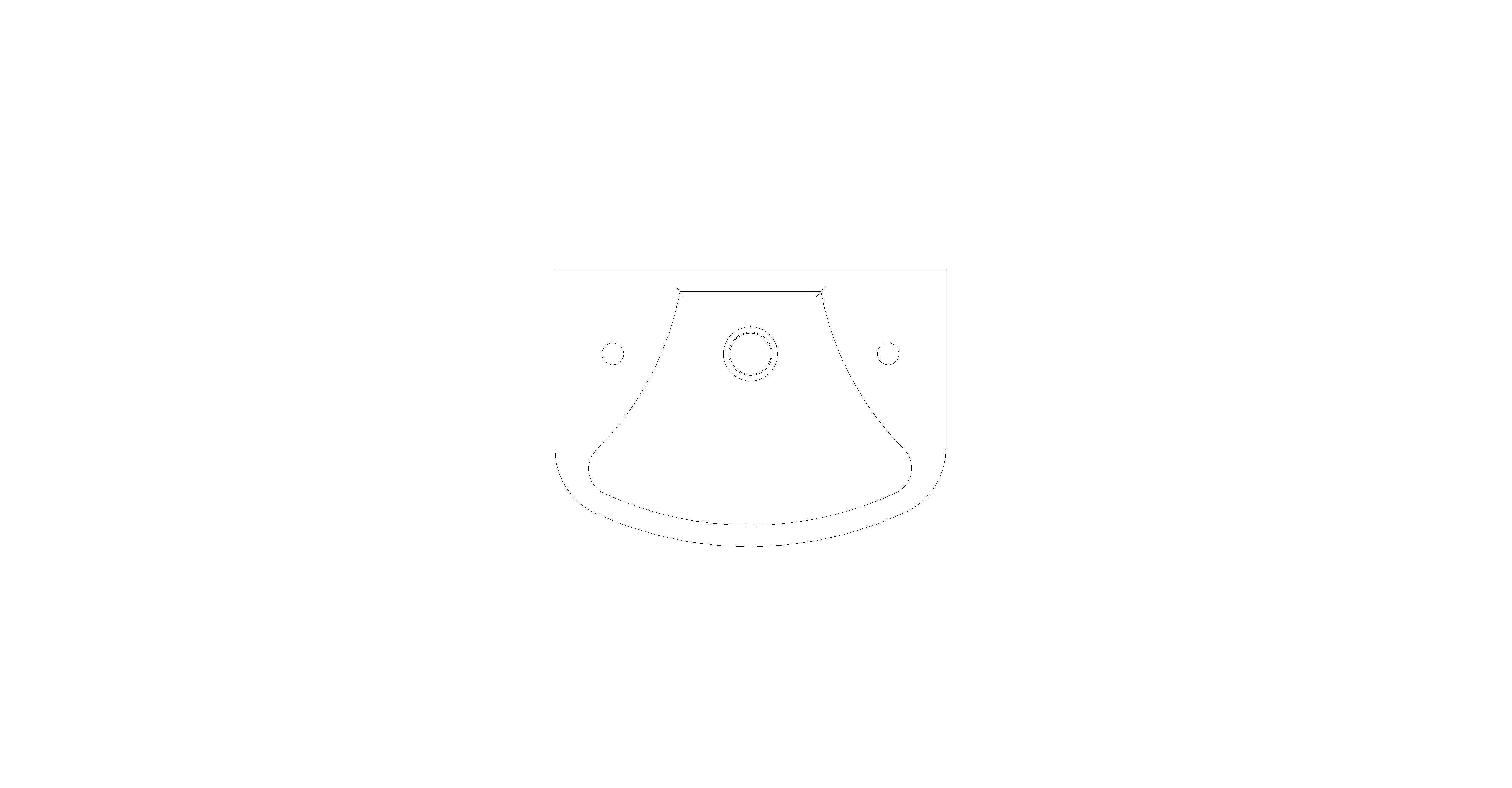

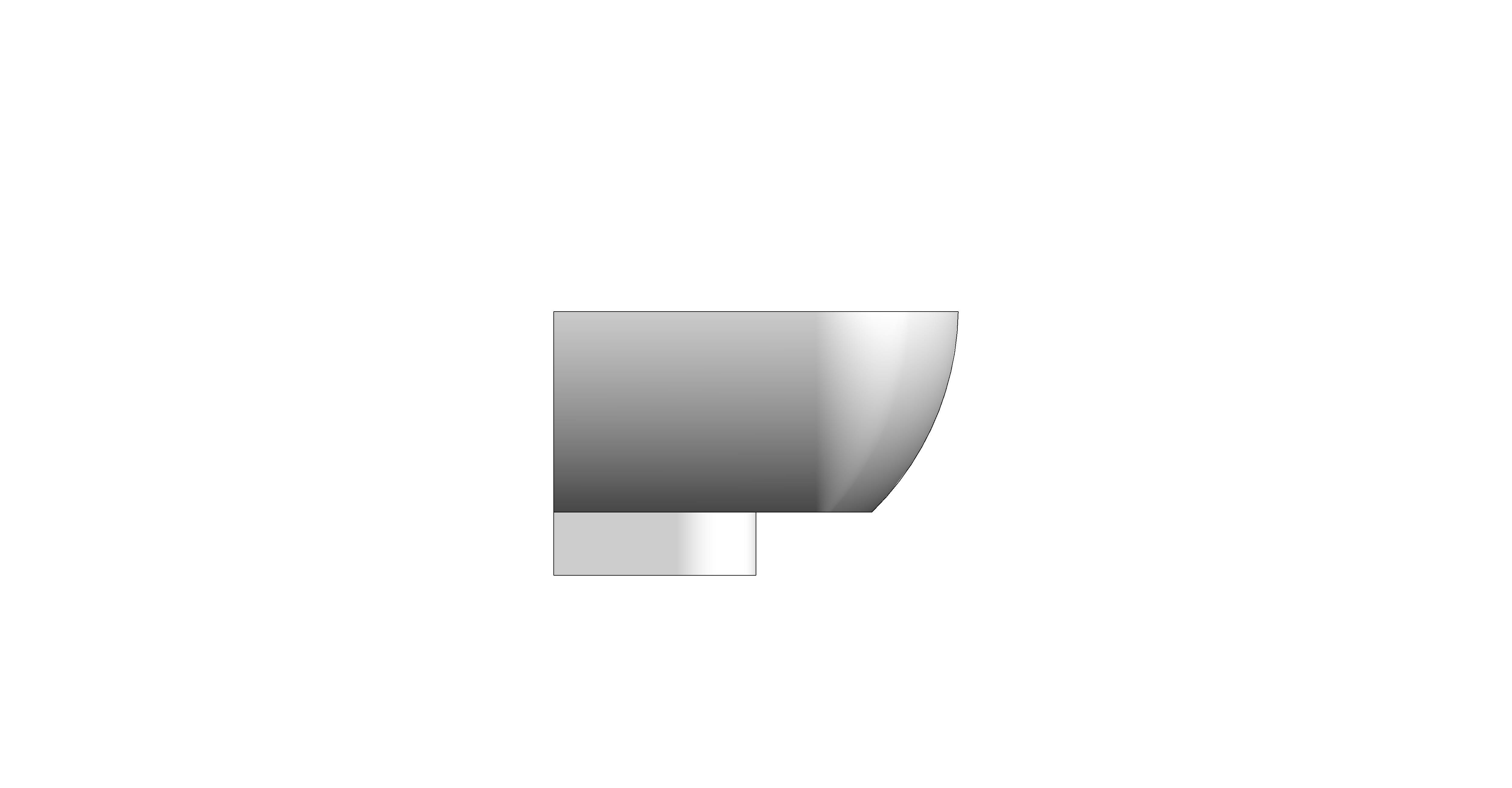

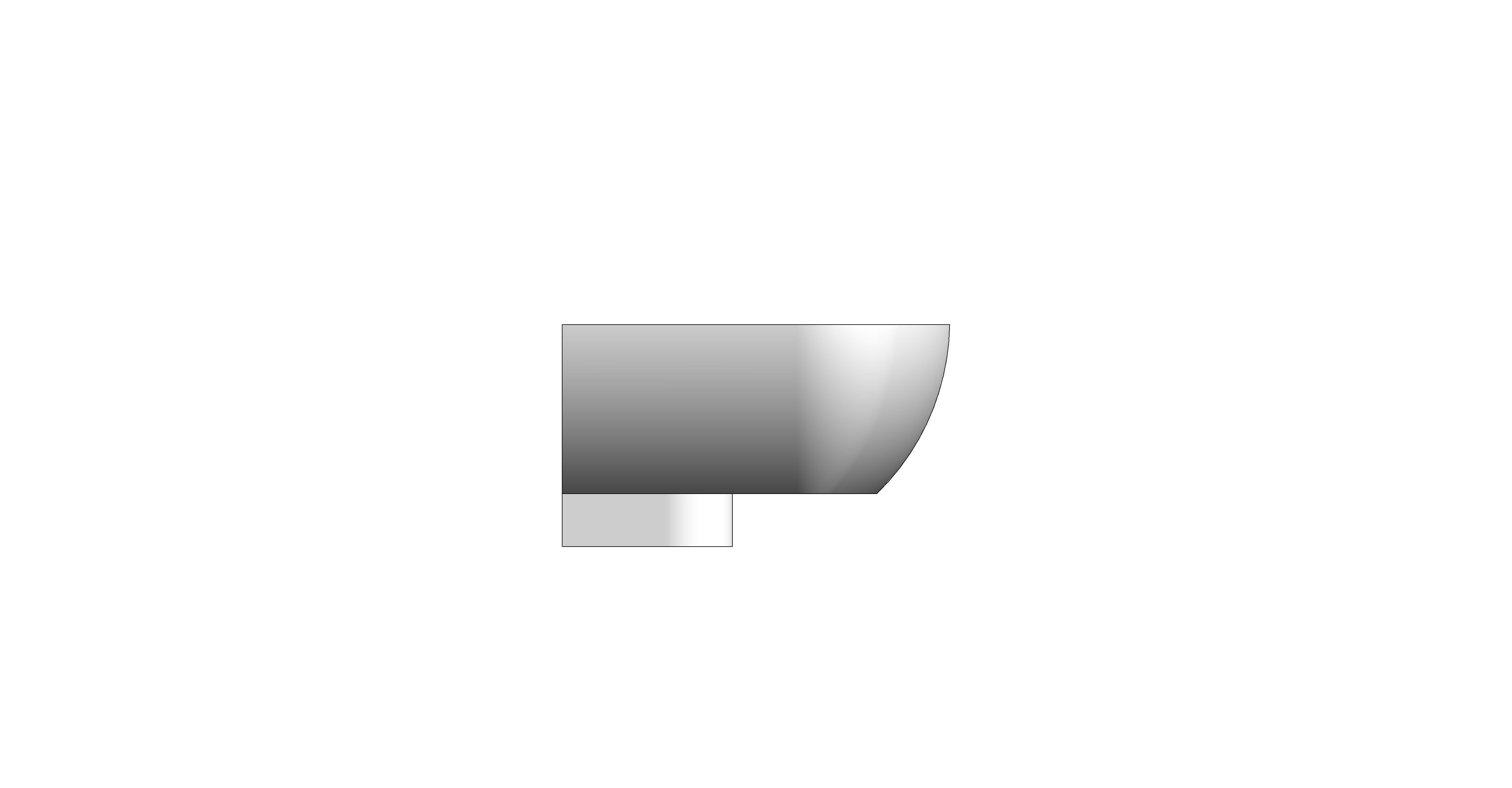

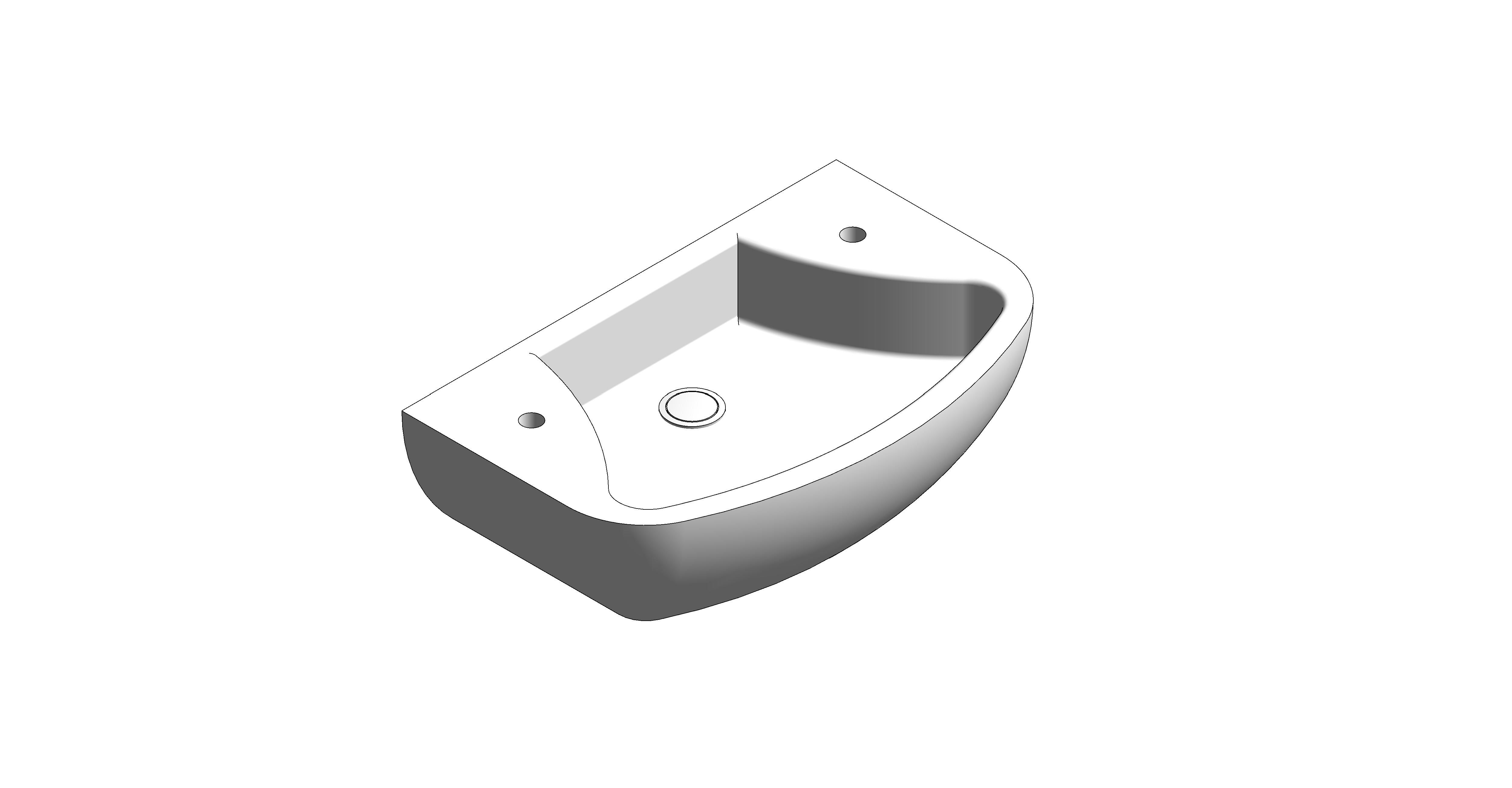

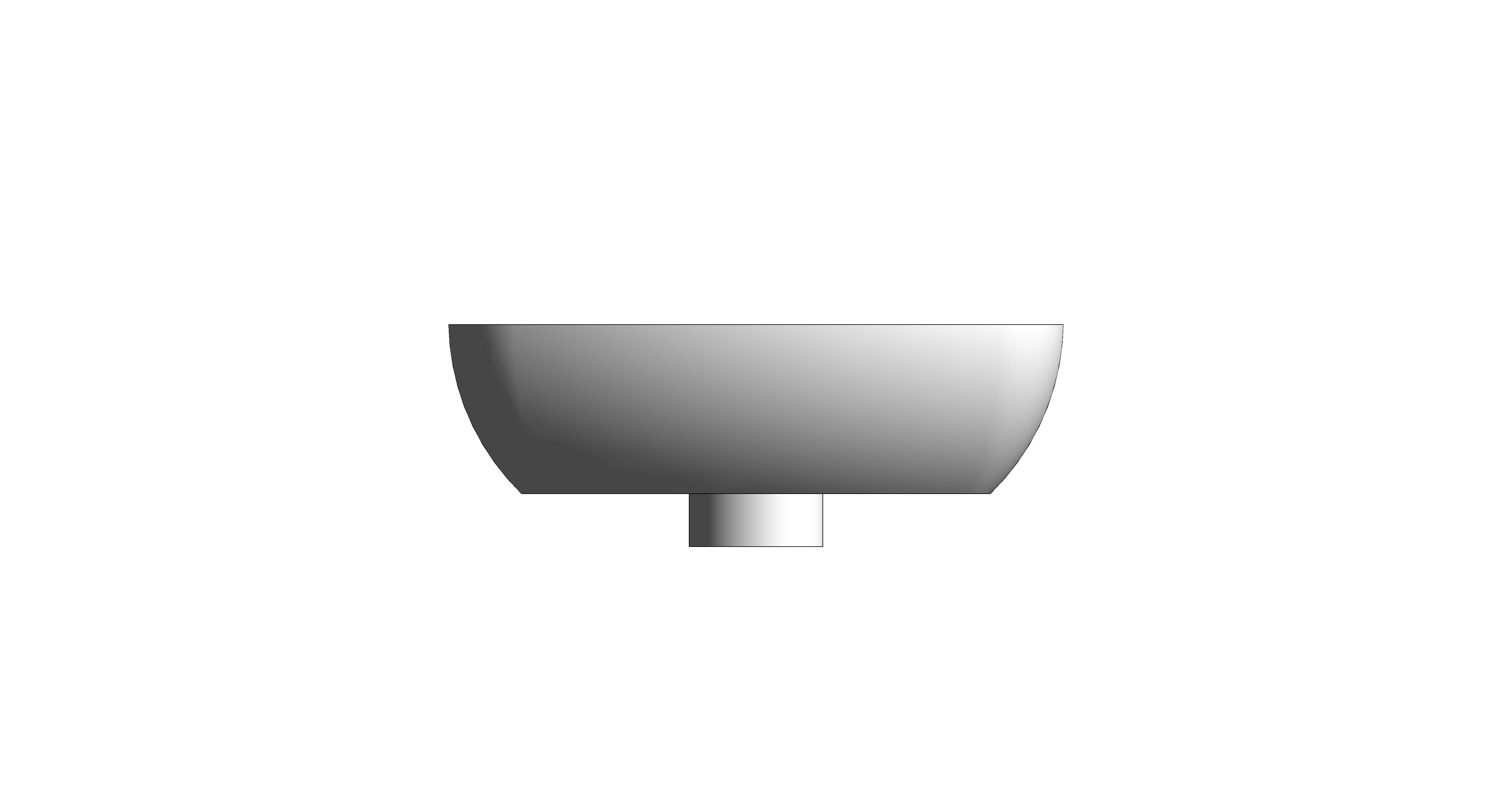

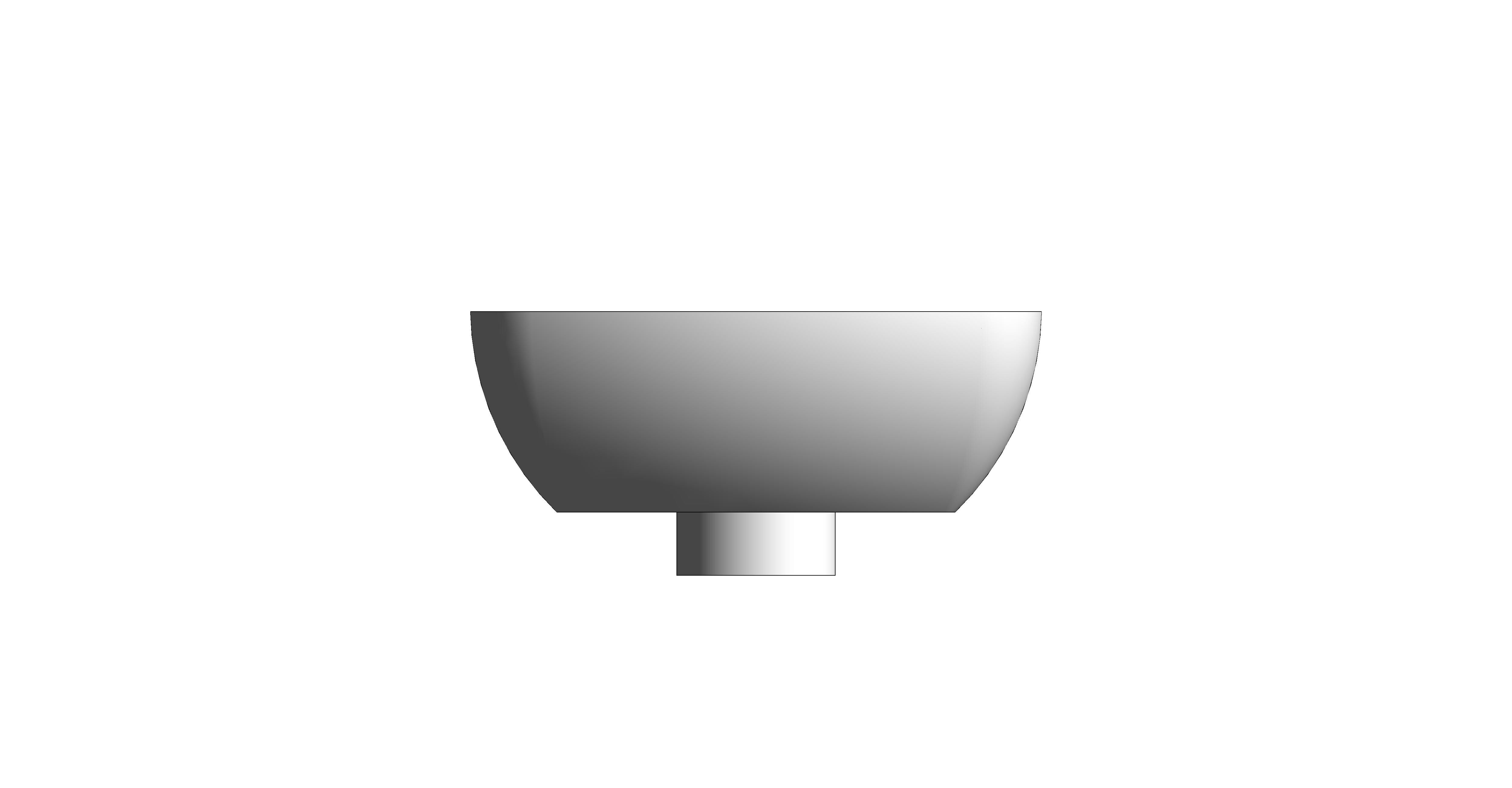

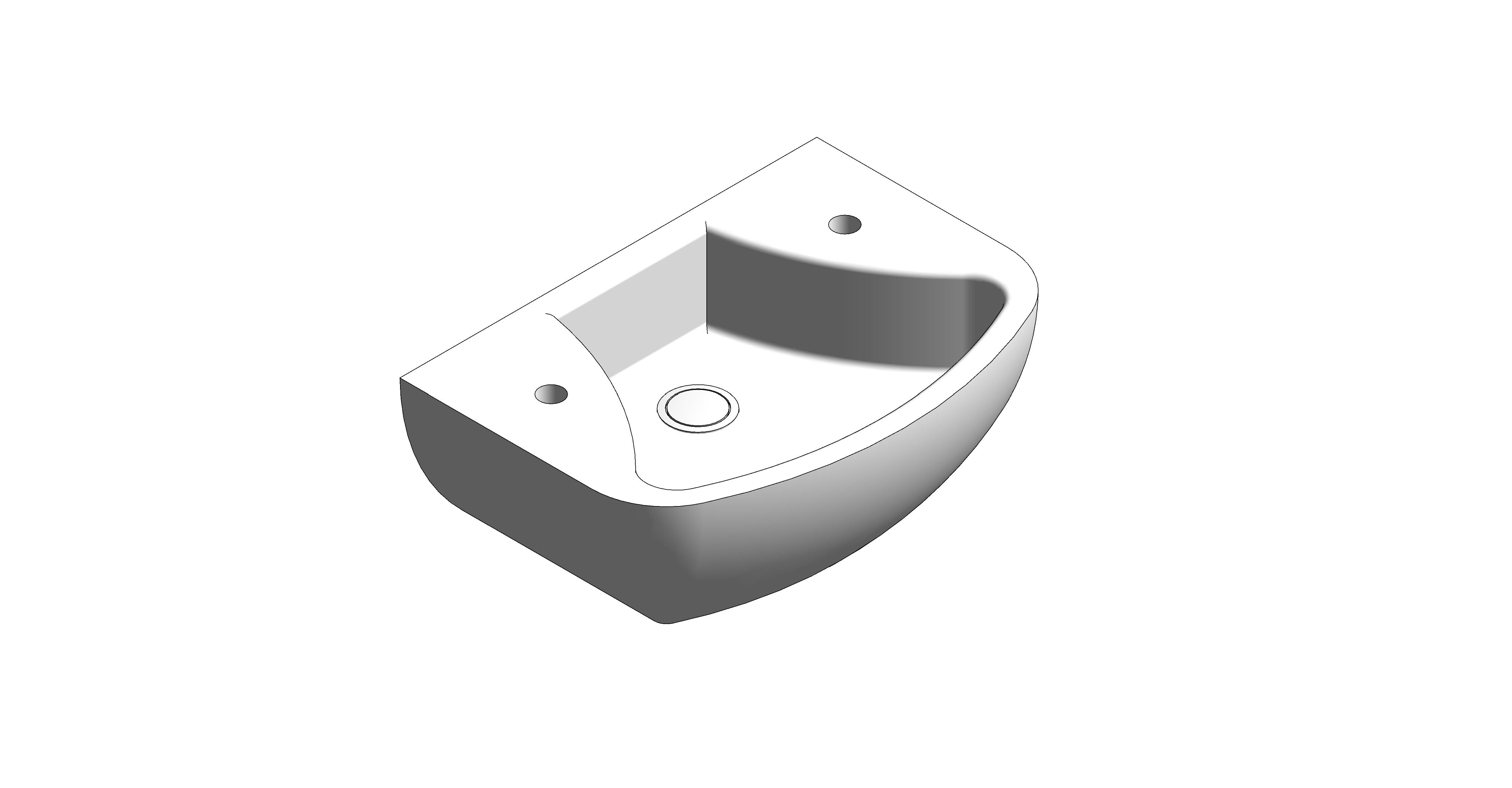

Small, two tap-hole cloakroom basin either 360mm or 460mm wide. Ideal for smaller toilet areas.

Object Data

1 Revision

Last Updated

05/11/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

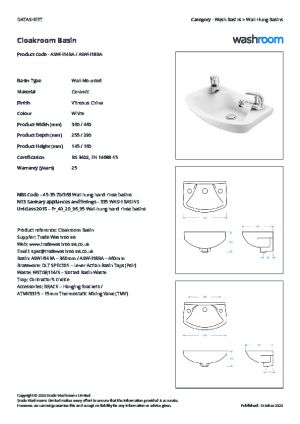

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010400
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_Basin_CloakRoom_360mm
CategoryPr_40_20_96_95:Wall-hung hand rinse basins
Classification NameUniclass2015
Classification ValuePr_40_20_96_95
Code PerformanceBS 5506
ColorWhite
ConstituentsBasin and hanging brackets
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionNo
CWFU0
DescriptionSmall, two tap-hole cloakroom basin ideal for smaller toilet areas
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/wash-basins/clinical-wash-hand-basin/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/wash-basins/clinical-wash-hand-basin/
Duration UnitYears
Expected Life25
FeaturesInternal overflow
FinishVitreous China
GradeBS 3402
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCeramic
ModelCloakroom Basin - 360mm
Model NumberASWH14BA
Model ReferenceCloakroom Basin - 360mm
NameCloakroom Basin - 360mm
NBS DescriptionWall-hung hand rinse basins
NBS Object NameTrade Washrooms - Wall-hung hand rinse basins
NBS Office Master Tagn/a
NBS Reference45-35-70/368
Nominal Depth255 mm
Nominal Height166 mm
Nominal Length360 mm
Plug MaterialTrade Washrooms - Chrome - Polished
Production Year2020
Referenced StandardBS 3402, BS 5506, EN 14688-15
Replacement Costn/a
Shapen/a
Size360 x 255 x 166mm
Spare Partsn/a
Sustainability PerformanceEN 14688-15
Type CommentsASWH14BA
Type NameCloakroom Basin - 360mm
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description25-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
