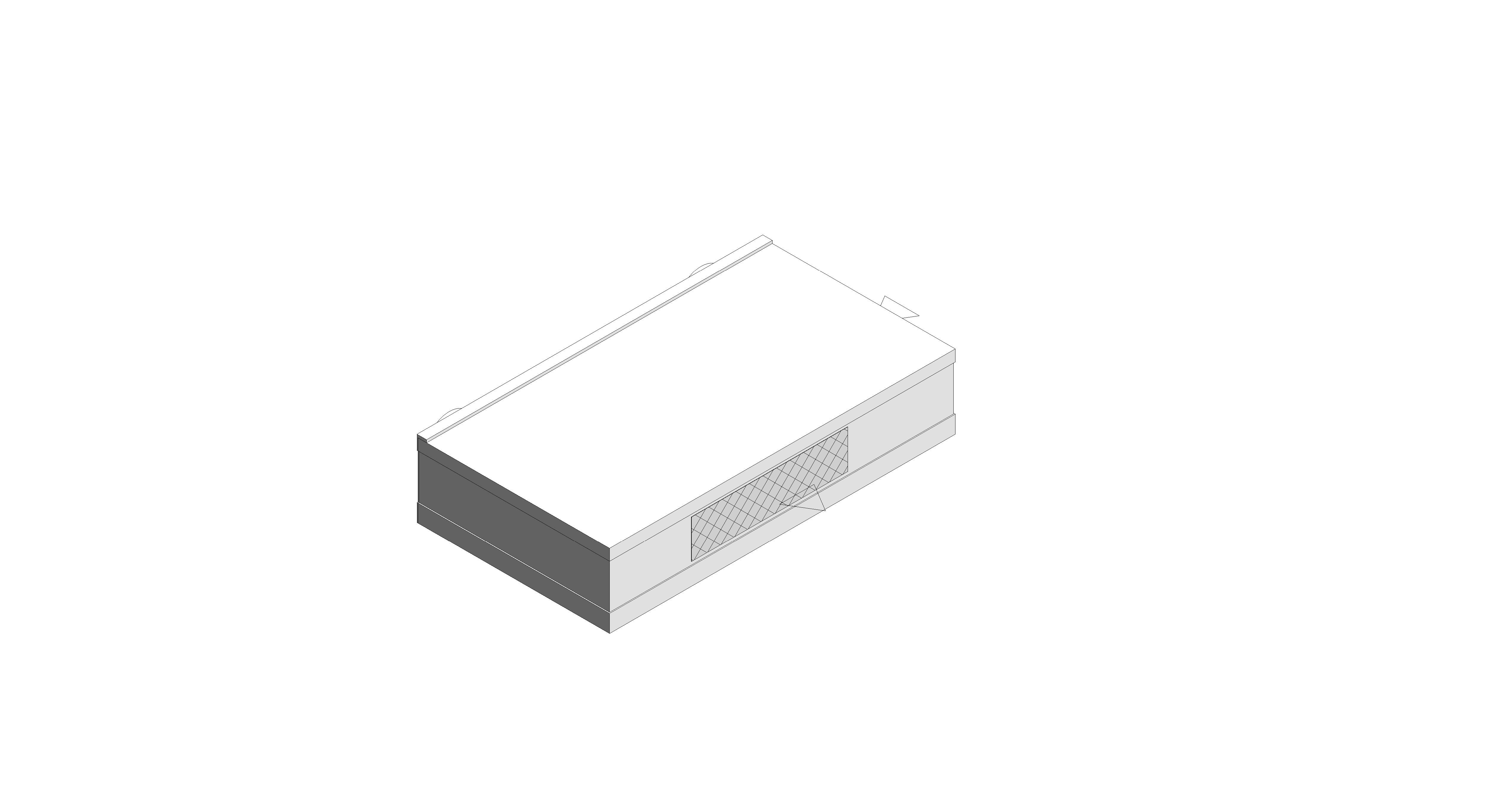

CIVIC EC DB 500 - Heat Recovery Unit

by Blauberg UK Limited

Download Add to collection

Description

The CIVIC EC LB units are designed for single-room ventilation of schools, offices and other public and commercial premises.

Ceiling mounted

Automatic Summer Bypass

CO2, Humidity & Temperature Sensing

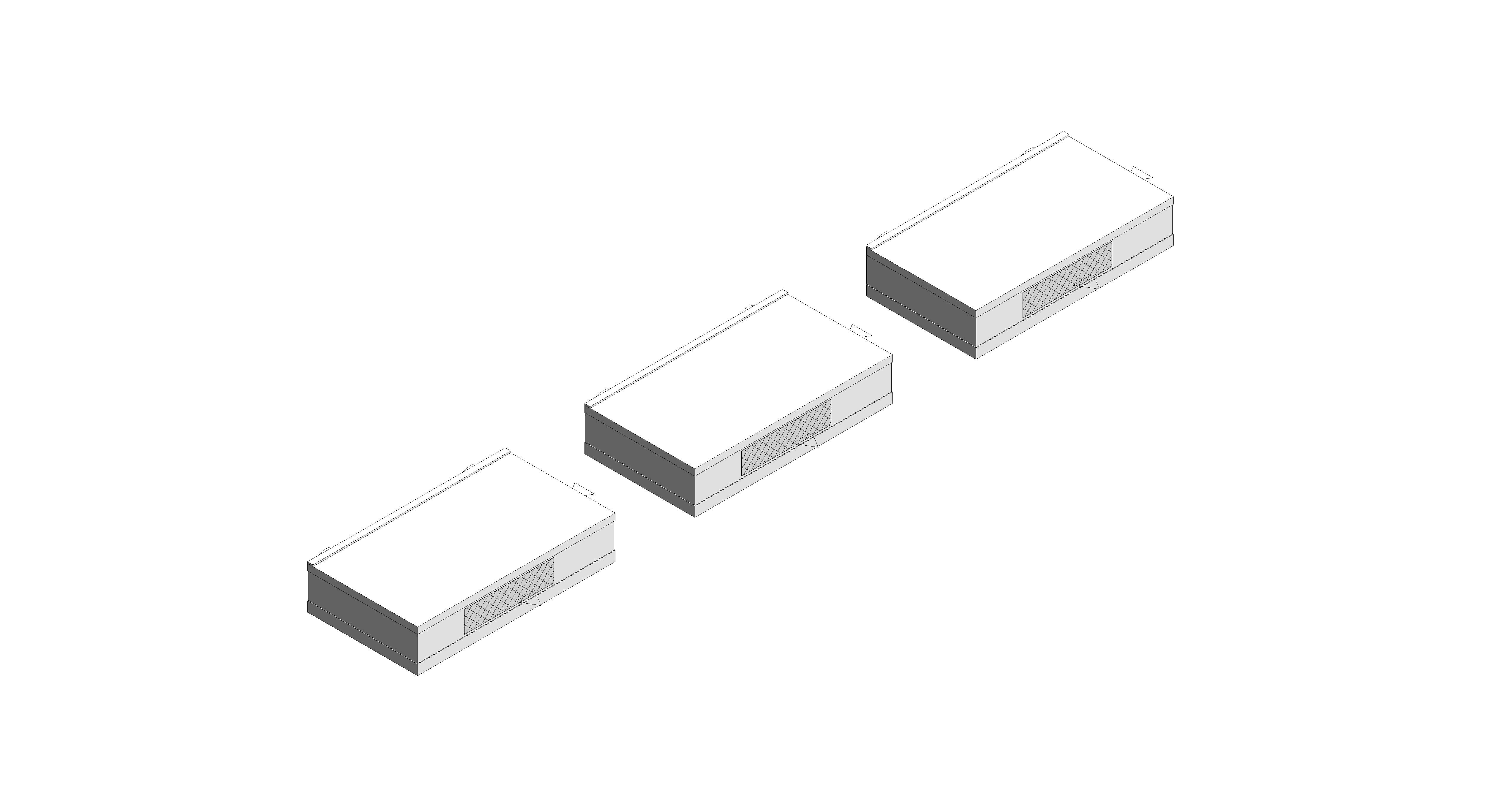

Objects included:

CIVIC EC DB 500 S21
CIVIC EC DBE 500 S21
CIVIC EC DBE2 500 S21

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/civic-db-500/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object Nameblauberg_MechanicalEquipment_Civic_EC_DB500
Casing MaterialPainted Steel White
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current2 A
D1249 mm
DescriptionSingle-room ventilation unit
d L5 mm
Documentation Certificateswww.bimstore.co/products/civic-db-500/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/civic-db-500/document/installation-guide
Documentation Literaturewww.bimstore.co/products/civic-db-500/document/product-literature
Documentation Maintenancewww.bimstore.co/products/civic-db-500/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/civic-db-500/document/technical-data-sheet
Drain Connection Diameter6 mm
Duct Connection Diameter250 mm
Duration UnitYears
d W5 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Graden/a
Grid MaterialGrid Cross
H386 mm
H1400 mm
H2169 mm
Hb91 mm
Hc236 mm
Heat Exchanger Typecounter-flow
Heatrecoveryefficiency Percentage74..86
Ht59 mm
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1006 mm
L11083 mm
Load ClassificationHVAC
Maintenance Zone Height600 mm
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow510 m³/h
Maximum Unit Current With Electric Heater2 A
Maximum Unit Current Without Electric Heater2 A
Maximum Unit Power Without Electric Heater170 W
ModelCIVIC EC DB 500 S21
Model NumberCivic EC DB500
Model ReferenceCIVIC EC DB 500 S21
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
of H202 mm
of Left432 mm
of W817 mm
os Back254 mm
os H203 mm
os W518 mm
Power170 W
Power Factor1
Preheat Power0 W
Production Year2021
Referenced Standardn/a
Reheater Power0 W
Replacement Costn/a
RP Mmin 11700
SEC ClassA
Shapen/a
Sizen/a
Sound Pressure Levelat 1m DBA34
Sound Pressure Levelat 3m DBA24
Spare Partsn/a
Supply Air FilterG4, F8
Transported Air Temperature Degrees C–25 …+40
Type CommentsSingle-room ventilation unit CIVIC EC DB 500 S21
Type NameSingle-room ventilation unit CIVIC EC DB 500 S21
URLblaubergventilatoren.de/en/product/civic-ec-db-500-s21
Voltage230 V
W1806 mm
W1244 mm
W21316 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight126.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
