Chrome Plated Brass Straight Service Valve, Compression x Female Swivel [02/0024]

by Valves Instruments Plus

Download Add to collection

Description

Chrome Plated Brass Straight Service Valve, Compression x Female Swivel, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

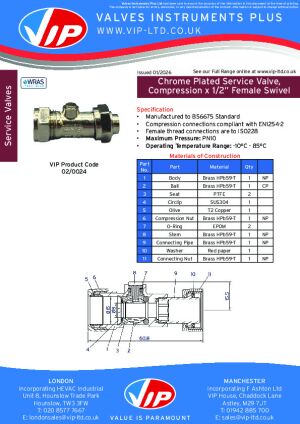

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/object-user-guide
A31 mm
Accessibility Performancen/a
ApplicationWater
Assembly CodeDN15
Asset TypeFixed
A Support 126 mm
A Support 222 mm
A Support 320 mm
A Support 429 mm
B62 mm
BIM Object NameVIP_ChromePlatedServiceValveCompressionSwivel_(02/0024)
BodyVIP - Nickel Plated Brass
Body Bronze15 mm
Body Bronze 214 mm
Body Round Inner7 mm
Body Round Outer8 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorGrey
Compression ConnectionsEN1254-2
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2024-11-04T09:00:00
Default Elevation0 mm
DescriptionChrome Plated Service Valve Compression x 1/2” Female Swivel
DN15 mm
Documentation Certificateswww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/installation-guide
Documentation Literaturewww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/product-literature
Documentation Maintenancewww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/efd114cb-be5b-4fdd-a9ed-61b40f602174/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcValve
Featuresn/a
Female Thread ConnectionsISO228
Finishn/a
Graden/a
Holde Inner Width1 mm
Holder Inner6 mm
Holder Outer7 mm
Holder Outer Width2 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient0
KeynoteS
ManufacturerVIP
Manufacturer NameVIP
Manufacture StandardBS6675
Materialn/a
Max Working PressurePN10
Max Working Temperature-10 to 85°C
M Body24 mm
Model02/0024
Model Number02/0024/015
Model ReferenceChrome Plated Service Valve Compression x 1/2” Female Swivel
NBS DescriptionChrome PlatedService Valve Compression Swivel
NBS Noten/a
NBS Object NameVIP - Chrome Plated Service Valve Compression Swivel
NBS Office Master Tagn/a
NBS Reference90-10-90/330
N Round 16 mm
Nround 27 mm
OliveVIP - Copper
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments02/0024/015
Type IFC Predefined TypeIfcValveTypeEnum.ISOLATING
Type NameDN15
URLwww.vip-ltd.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
