Cast Iron 'Y' Strainer [00/0043]

by Valves Instruments Plus

Download Add to collection

Description

Cast Iron 'Y' Strainer, 20s Mesh, Stainless Steel Screen, Flanged PN16.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

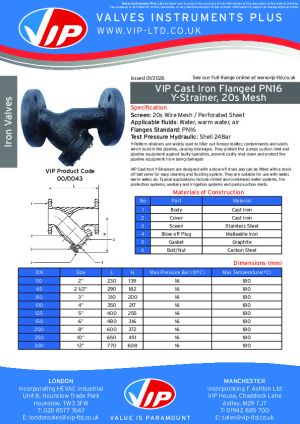

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/object-user-guide
Accessibility Performancen/a
Applicable fluidsWater, warm water, air
Assembly CodeDN100
Asset TypeFixed
Ball Valve Inside Diameter100 mm
Ball Valve Inside Radius50 mm
Ball Valve Outside Diameter116 mm
Ball Valve Outside Radius58 mm
BIM Object NameVIP_CastIronFlangedYStrainer20sMesh_PN16_(00-0043)
Classification NameUniclass 2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-01-13T09:00:00
Default Elevation0 mm
DescriptionVIP Y-Pattern strainers are widely used to filter foreign matter such as contaminants and solids in pipelines, to prevent build up and blockages. These strainers protect pumps, suction equipment and pipeline equipment from damage, preventing costly shut downs nd protect the pipeline equipment from being damaged.
DN100 mm
Documentation Certificateswww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/installation-guide
Documentation Literaturewww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/product-literature
Documentation Maintenancewww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/c703d314-d7c0-4f7c-9b70-75e403c7ae7b/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcFilterType
Featuresn/a
Finishn/a
Flange Diameter220 mm
Flange End Radius80 mm
Flange Holes Center178 mm
Flange Holes Diameter18 mm
Flange Length21 mm
Flange Outside Diameter140 mm
Flanges StandardPN16
Graden/a
H217 mm
Half Length175 mm
Holes Angle22.50 °
Ifc Export AsIfcFilterType
Ifc Export TypeIfcFilterType.STRAINER
KeynoteS
L13 mm
L2104 mm
L3124 mm
Length350 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Pressure Bar (10°C)16 Bar
Max Temperature180 °C
Model00/0043 VIP Cast Iron Y Strainer, 20s mesh, WRAS Approved, Flanged PN16
Model Number00-0043-100
Model ReferenceCast Iron Y Strainer
NBS DescriptionY-type water strainers
NBS Noten/a
NBS Object NameVIP - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
No Holes8
Nominal Depth220 mm
Nominal Height220 mm
Nominal Length350 mm
Primary MaterialVIP - Cast Iron - Epoxy Coated Black
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Screen20s wire mesh / perforated sheet
Shapen/a
SizeDN100
Spare Partssales@vip-ltd.co.uk
Tee Angle56.50 °
Tee Centre98 mm
Tee Flange Tk38 mm
Tee Length200 mm
Test Pressure HydraulicShell 24Bar
Type Comments00-0043-100
Type IFC Predefined TypeIfcFilterType.STRAINER
Type NameDN100
URLwww.vip-ltd.co.uk/Valves/VIP_Cast_Iron_Range/00_0043/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
