Extended Brass Test Points [00/1095]

by Valves Instruments Plus

Download Add to collection

Description

BSPT Extended Brass Test Points, Blue & Red Tags.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

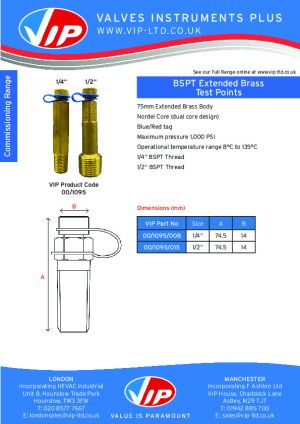

Product Literature

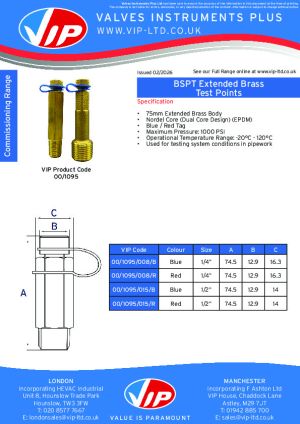

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAG
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD8
Asset TypeFixed
BIM Object NameVIP_EXTENDED_BRASS_TEST_POINTS(00/1095)
Body MaterialVIP - Brass
Classification NameUniclass 2024
Classification ValuePR_65_54_93_87
Code Performancen/a
ColorYellow & Blue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-09-19T09:00:00
Default Elevation1219 mm
DescriptionExtended Brass Test Points
DN15 VisibilityNo
DN8 VisibilityYes
Documentation Certificateswww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/installation-guide
Documentation Literaturewww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/product-literature
Documentation Maintenancewww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/b3e40a12-0330-4ed8-ad99-bca938040363/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
KeynoteS
ManufacturerVIP
Manufacturer NameVIP
Maximum Pressure1000 PSI
ModelExtended Brass Test Points
Model Number00/1095/008/B
Model ReferenceTest Points
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter8 mm
Nut Width14 mm
Operational Temperature Range-20°C - 120°C
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN8
Spare Partssales@vip-ltd.co.uk
Tag MaterialVIP - Blue Plastic
Thread Width7 mm
ThreadsISO 228
Type Comments00/1095/008/B
Type NameDN8
URLwww.vip-ltd.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
