Bronze PN25 Swing Check Valve, Nitrile Seat [00/2028]

by Valves Instruments Plus

Download Add to collection

Description

Bronze PN25 Swing Check Valve, Nitrile Seat, Female Ends, BSP 'T'.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

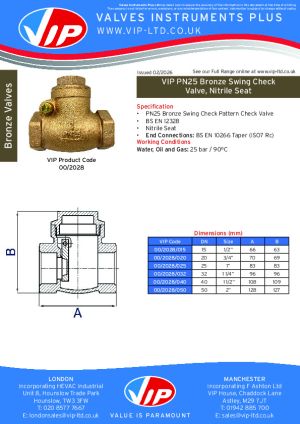

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByAA
_Current Revision3
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/object-user-guide
A66 mm
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
B45 mm
BIM Object NameVIP_BronzeSwingCheckValveNitrileSeat_PN25_(00/2028)
Body Curve Centre34 mm
Body Inner S3 mm
Body N20 mm
Body Nvoid14 mm
Body Outer S6 mm
Body Radius56 mm
Body R Support3 mm
Body Support Thickness5 mm
Body Support Thickness 24 mm
Body Void13 mm
Body Width52 mm
BrassVIP - Metal - Brass
Cap Offset3 mm
Centre Radius20 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorYellow
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-10-08T:09:00:00
Default Elevation0 mm
Description00/2028_VIP_Bronze Swing Check Valve Nitrile Seat_PN25
DN15 mm
Documentation Certificateswww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fa0f56ab-0ae9-4c55-ab54-f9ee6edb6018/document/technical-data-sheet
Duration UnitYear
End Nut Diameter33 mm
End Nut Thickness7 mm
Expected Life0
Export Type to IFC AsIfcValve
Featuresn/a
Finishn/a
Graden/a
Hex Height7 mm
Hex Width28 mm
Holder Height24 mm
Holder Support18 mm
ID Plate MaterialAluminum (Yellow)
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Circle Diameter7 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Model00/2028/015
Model Number00/2028/015
Model Reference00/2028
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameBronze Swing - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
New Body Support6 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Service & ApplicationPN25 Bronze Swing Check Pattern Check Valve, BS EN 12328, End Connections: BS EN 10266 Taper (ISO7 Rc)
Shapen/a
SizeDN15
Spare Partsn/a
SupportVIP - Black
Support Body Width18 mm
Support Round Height7 mm
Support Round Width20 mm
Support Width33 mm
Top Of Stem39 mm
Type CommentsBronze Swing Check Valve Nitrile Seat
Type IFC Predefined TypeIfcValveTypeEnum.CHECK
Type Name00/2028/015
URLwww.vip-ltd.co.uk/Valves/VIP_Bronze_Valves/00_2028/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
Working ConditionsSaturated Steam: 10.5 Bar / 186°C, Water, Oil Gas: 25 Bar / 90°C
