Bronze Gate Valve, Handwheel [00/2003]

by Valves Instruments Plus

Download Add to collection

Description

Bronze PN20 Gate Valve to BS5154B, Female BSP 'T', Handwheel Operated, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

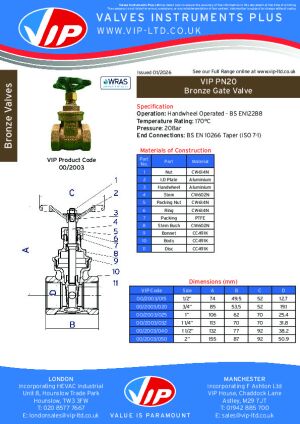

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/object-user-guide
A50 mm
A19 mm
Accessibility Performancen/a
Assembly CodeD15
Asset TypeFixed
B74 mm
BIM Object NameVIP_BRONZE_GATE_VALVE(00/2003)
Body Top34 mm
Center Width20 mm
Classification NameUniclass 2025
Classification ValuePR_65_54_95
Code Performancen/a
ColorYellow & Green
Connection Inner18 mm
Connection Outer27 mm
Connection Thickness5 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-05-23T09:00:00
Default Elevation0 mm
DescriptionBronze Gate Valve Handwheel Operation
Documentation Certificateswww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/installation-guide
Documentation Literaturewww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/product-literature
Documentation Maintenancewww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/53307f37-fdf0-4a07-93ac-d0d70ad6b821/document/technical-data-sheet
Duration UnitYears
End ConnectionsBS EN 10266 Taper (ISO Rc)
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Hex 1 Height9 mm
Hex 1 Width19 mm
Hex 2 Height11 mm
Hex 2 Width17 mm
KeynoteS
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure20 Bar
ModelBronze Gate Valve Handwheel Operation
Model Number00/2003/015
Model ReferenceBronze Gate Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter15 mm
OperationHandwheel Operated - BS EN12288
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Temperature Rating170°C
ThreadsISO 228
Top Thickness12 mm
Type Comments00/2003/015
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Bronze_Valves/00_2003/
VIP - BronzeVIP - Bronze
VIP - HandwheelVIP - Aluminium
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
