Bronze Variable Orifice Balancing Valve [00/0134]

by Valves Instruments Plus

Download Add to collection

Description

Bronze Variable Orifice Balancing Valve, BSP Female Ends.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

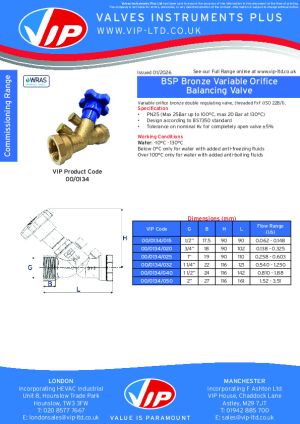

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/object-user-guide
a15 mm
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
b17 mm
b 2 Rad10 mm
Balancing ConeDZR Brass EN12164 CW602N
BIM Object NameVIP_BSPBronzeVariableOfficeBalancingValve_00-(0134)
BodyDZR Brass EN12165 CW602N
BonnetDZR Brass EN12164 CW602N
b Rad12 mm
BrassVIP - Metal - Brass
c15 mm
Check1
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
c Rad7 mm
Created Bysales@vip-ltd.co.uk
Created On2023-07-13 T:09:00:00
Default Elevation0 mm
DescriptionFixed orifice DZR brass double regulating valve, threaded FxF
DiscDZR Brass EN12164 CW602N
Disc O-RingEPDM Perox
Disc StemDZR Brass EN12164 CW602N
Distance 115 mm
Distance 101 mm
Distance 212 mm
Distance 316 mm
Distance 43 mm
DN15 mm
DN15-25Yes
DN32-50No
Documentation Certificateswww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/installation-guide
Documentation Literaturewww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/product-literature
Documentation Maintenancewww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/3b5e04b4-c040-48de-aa04-c08a3f1370a3/document/technical-data-sheet
Duration UnitYear
Expected Life0
Export Type to IFC AsIfcValve
Featuresn/a
Finishn/a
Flow Range1.520 - 3.510 l/s
Gasket DiscPTFE
Graden/a
H90 mm
HandwheelABS (Blue)
Hex N Width25 mm
Hex Width16 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient0
KeynoteS
L90 mm
Loss MethodK Coefficient
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Mid Rad10 mm
Model00/0134/015
Model Number00/0134/015
Model Reference00-0134
NBS DescriptionDouble regulating valves
NBS Noten/a
NBS Object NameVIP - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Nominal PressurePN25(Max 25bar up to 110°C, max 20bar at 120°C)
NutZinc Plated Steel EN10025 Fe42
Production Year2025
Referenced StandardDesign according to BS7350 standard
Replacement Costn/a
ScrewSteel
Shapen/a
SizeDN15
Spare Partsn/a
StemBrass EN12164 CW617N
Stem O-RingEPDM Perox
Stop Spring RingSpring Steel
Tag (newdefault)VIP - Plastic - Red
Test Point/PlugDZR Brass EN12164 CW602N
Tolerance On Nominal Kvs±5% (test according BS7350)
Type CommentsBSP DZR Brass Balancing Valve
Type IFC Predefined TypeIfcValveTypeEnum.CHECK
Type Name00/0134/015
UnionDZR Brass EN12164 CW602N
URLwww.vip-ltd.co.uk/Valves/VIP_Commissioning_Valves/00_0134/
Venturi InsertDZR Brass EN12164 CW602N
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
Weight2.064 kg
Working Conditions-10°C to +130°C (below 0°C only for water with added anti-freezing fluids over 100°C only for water with added anti-boiling fluids)
