Bronze Variable Orifice Balancing Valve & Test Points [00/0120]

by Valves Instruments Plus

Download Add to collection

Description

Bronze Variable Orifice Balancing Valve, BSP Female Ends, Complete with Test Points.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

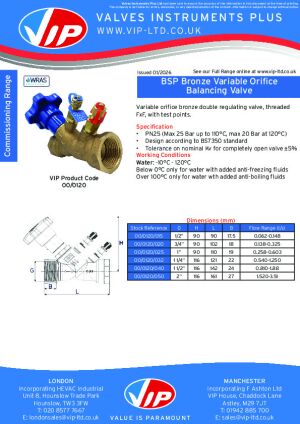

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/object-user-guide
a15 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b17 mm
b 2 Rad10 mm
Balancing ConeDZR Brass EN12164 CW602N
BIM Object NameVIP_BSPBronzeVariableOfficeBalancingValve_00-0120
BodyDZR Brass EN12165 CW602N
BonnetDZR Brass EN12164 CW602N
b Rad12 mm
BrassVIP - Metal - Brass
c15 mm
Check1
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
c Rad7 mm
Created Bysales@vip-ltd.co.uk
Created On2023-07-13 T:09:00:00
Default Elevation0 mm
DescriptionFixed orifice DZR brass double regulating valve, threaded FxF, with test points
DiscDZR Brass EN12164 CW602N
Disc O-RingEPDM Perox
Disc StemDZR Brass EN12164 CW602N
Distance 115 mm
Distance 101 mm
Distance 212 mm
Distance 316 mm
Distance 48 mm
Distance 59 mm
Distance 61 mm
Distance 76 mm
Distance 88 mm
Distance 92 mm
DN15 mm
DN15-25Yes
DN32-50No
Documentation Certificateswww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/installation-guide
Documentation Literaturewww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/product-literature
Documentation Maintenancewww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/bdf2d7c6-f180-4f76-ac15-d8cb59eab7e9/document/technical-data-sheet
Duration UnitYear
Expected Life0
Export Type to IFC AsIfcValve
Featuresn/a
Finishn/a
Flow Range0.062 - 0.148 l/s
Gasket DiscPTFE
Graden/a
H90 mm
HandwheelABS (Blue)
Hex Width25 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient0
KeynoteS
L90 mm
Loss MethodK Coefficient
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Mid Rad10 mm
Model00/0120/050
Model Number00/0120/050
Model Reference00-0120
NBS DescriptionDouble regulating valves
NBS Noten/a
NBS Object NameVIP - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Nominal PressurePN25(Max 25bar up to 110°C, max 20bar at 120°C)
NutZinc Plated Steel EN10025 Fe42
Production Year2025
Referenced StandardDesign according to BS7350 standard
Replacement Costn/a
ScrewSteel
Shapen/a
SizeDN50
Spare Partsn/a
StemBrass EN12164 CW617N
Stem O-RingEPDM Perox
Stop Spring RingSpring Steel
Tag (newdefault)VIP - Plastic - Red
Test Point/PlugDZR Brass EN12164 CW602N
Tolerance On Nominal Kvs±5% (test according BS7350)
Type CommentsBSP DZR Brass Balancing Valve
Type IFC Predefined TypeIfcValveTypeEnum.CHECK
Type Name00/0120/050
UnionDZR Brass EN12164 CW602N
URLwww.vip-ltd.co.uk/
Venturi InsertDZR Brass EN12164 CW602N
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
Weight0.505 kg
Working Conditions-10°C to +120°C (below 0°C only for water with added anti-freezing fluids over 100°C only for water with added anti-boiling fluids)

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
