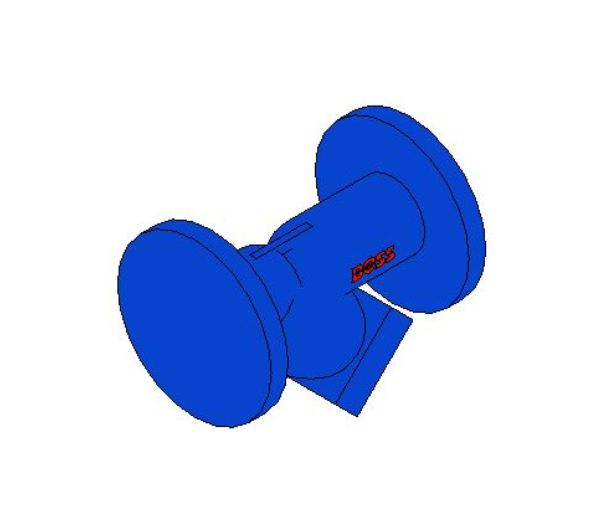

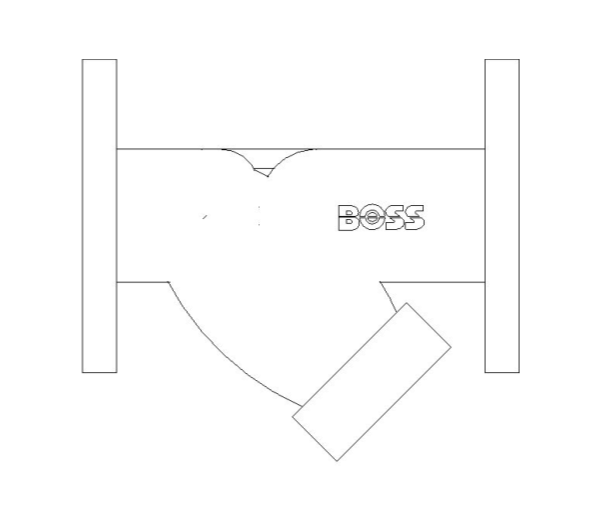

Strainer FIG 52W

Download Add to collection

Description

Strainer - 52W

Object Data

1 Revision

Last Updated

15/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirNo
Angle45.00 °
ApplicationY'-Type Strainers Flanged
ApprovalWRAS approved.
Assembly CodeD2020200
Asset TypeFixed
BIM Object NameBOSS_PipeAccessory_Strainer_46W
BodyDuctile Iron (1563 EN GJS-450-10)
Circular DrainNo
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code PerformanceN/A
ColorBlue
ConnectionFlanged PN16 BS EN 1092-2
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-09-24 T09:00:00
D1115 mm
DescriptionY'-Type Strainers Flanged
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesWRAS approved Pantone blue epoxy finish to the exterior & interior
FinishBlue Epoxy
Flange Dia220 mm
Flange Thick20 mm
Flow Range LPHN/A
Flow Range LPSN/A
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcFilterType.STRAINER
Ifc Export TypeIfcFilter
K Coefficient0
K Coefficient TableBasket Strainer
KeynoteS
L1350 mm
L1087 mm
L11100 mm
L1260 mm
L2200 mm
L357 mm
L473 mm
L535 mm
L639 mm
L78 mm
L8100 mm
L9132 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialDuctile Iron
Maximum Working Pressure16 Bar
Maximum Working Temperature85°C
Mesh MaterialSS304 1.5mm mesh
ModelDN100 'Y'-Type Strainers Flanged BOSS 52W
Model Number32022123
Model ReferenceDN100 'Y'-Type Strainers Flanged BOSS 52W
NBS DescriptionY-type water strainers
NBS Object NameBSS BOSS Products -Y-type water strainers
NBS Office Master TagN/A
NBS Reference90-10-60/400
Nominal Depth220 mm
Nominal Dia100 mm
Nominal Height322 mm
Nominal Length350 mm
Nominal Width350 mm
OilNo
Plug MaterialStainless Steel 304SS
Pressure DropN/A
Production Year2019
R157 mm
R225 mm
R330 mm
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
SizeDN100
Spare PartsBOSS Technical Team Tel 0116 245 5940
Square DrainYes
SteamNo
Tubing OptionsN/A
Type CommentsDN100 'Y'-Type Strainers Flanged BOSS 52W
Type NameDN100 'Y'-Type Strainers Flanged BOSS 52W
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
Washer MaterialCarbon Steel Galvanized
WaterYes
Weight16.3 Kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
