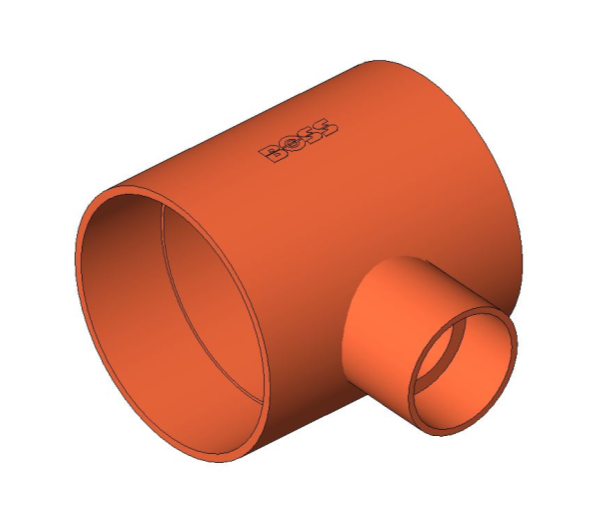

BOSS™ Reduced Branch Tee BB25 [Brazing fittings]

Download Add to collection

Description

BB25 Branch Reduced Tee

Object Data

1 Revision

Last Updated

19/12/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

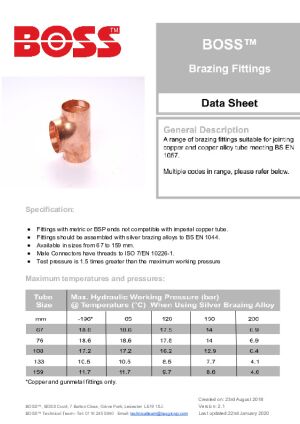

Technical Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Brazing Fittings
ApprovalN/A
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_BB25_BranchReducedTee
BodyCopper
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionBrazing
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On17/11/2019 09:00
D1115 mm
D2106 mm
D358 mm
D452 mm
DescriptionBOSS BB25 Branch Reduced Tee 108X54
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings with metric or BSP ends not compatible with imperial copper tube. Fittings should be assembled with silver brazing alloys to BS EN 1044. Available in sizes from 67 to 159 mm. Male Connectors have threads to ISO 7/EN 10226-1.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.JUNCTION
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableTee
KeynoteS
L160 mm
L260 mm
L386 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure17.2 Bar
Maximum Working Temperature200°C
ModelBOSS BB25 Branch Reduced Tee 108X54
Model Number62210637
Model ReferenceBOSS BB25 Branch Reduced Tee 108X54
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nom Branch Dia54 mm
Nominal Depth115 mm
Nominal Dia108 mm
Nominal Height143 mm
Nominal Length120 mm
Nominal Width120 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size108x54
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsN/A
Type CommentsBOSS BB25 Branch Reduced Tee
Type NameBOSS BB25 Branch Reduced Tee
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight1.92
Z139 mm
Z239 mm
Z369 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
