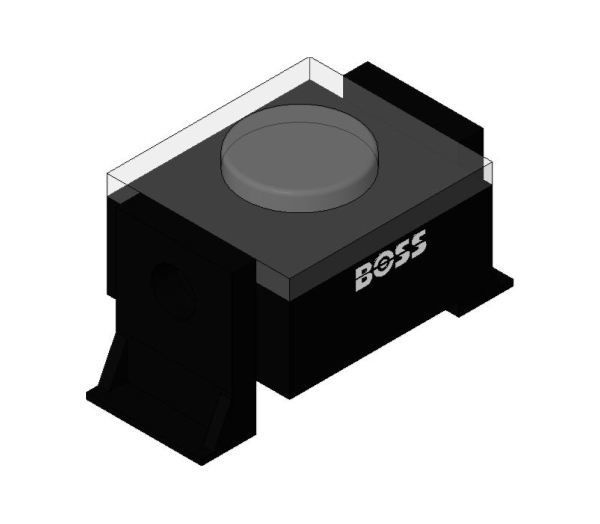

Pneumatic Actuator Switchbox

Download Add to collection

Description

Pneumatic Actuator Switchbox

Object Data

1 Revision

Last Updated

10/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
ApplicationPneumatic Actuator Switchbox
ApprovalN/A
Assembly CodeD20
Asset TypeFixed
BIM Object NameBOSS_PipeAccessories_PneumaticActuatorSwitchbox
BodyVO reinforced PPE
Classification NameUniclass2015
Classification ValuePr_75_51_17_78
Code PerformanceN/A
ColorBlack & Transparent
Connection1/2"
ConstituentsN/A
Cover MaterialPolycarbonate
Created Byenquiries@bssgroup.com
Created On2019-06-07 T09:00:00
DescriptionPneumatic Actuator Switchbox
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesSP series namur switchbox complete with 2 x SPDT Silver Plated Switches, To suit 20,30,40 & 50 namur pinion, Suitable for use in IP65 weatherproof applications, 3D Position indicator, Tool free adjustable high resolution splined cams,Cable entry with 15mm (1/2”) thickness thread to prevent housing damage
FinishBlack & Transparent
GPID Code1009945773
GradeN/A
Ifc Export AsIfcSwitchingDeviceType.SELECTORSWITCH
Ifc Export TypeIfcSwitchingDevice
KeynoteS
L1140 mm
L291 mm
L382 mm
L452 mm
L521 mm
L647 mm
L7113 mm
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialVO reinforced PPE
ModelPneumatic Actuator Switchbox
Model Number68520407
Model ReferencePneumatic Actuator Switchbox
NBS DescriptionSelector switches
NBS Object NameBSS BOSS Products -Selector switches
NBS Office Master TagN/A
NBS Reference90-65-25/360
Nominal Depth82 mm
Nominal Height77 mm
Nominal Length140 mm
Nominal Width140 mm
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCuboid
SizeN/A
Spare PartsBOSS Technical Team Tel 0116 245 5940
Type CommentsPneumatic Actuator Switchbox
Type NamePneumatic Actuator Switchbox
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
Weight0.2

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
