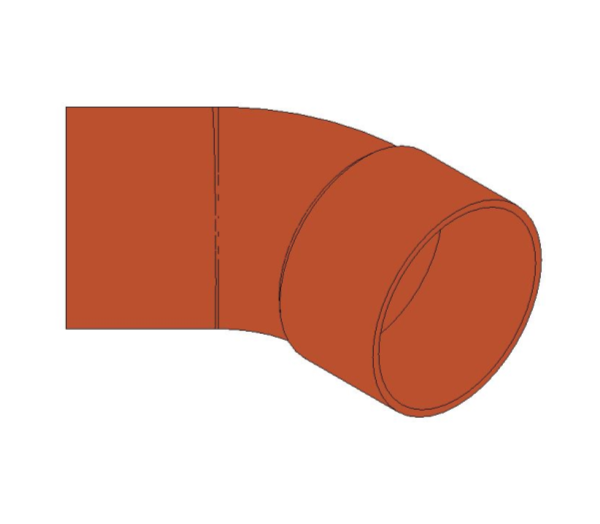

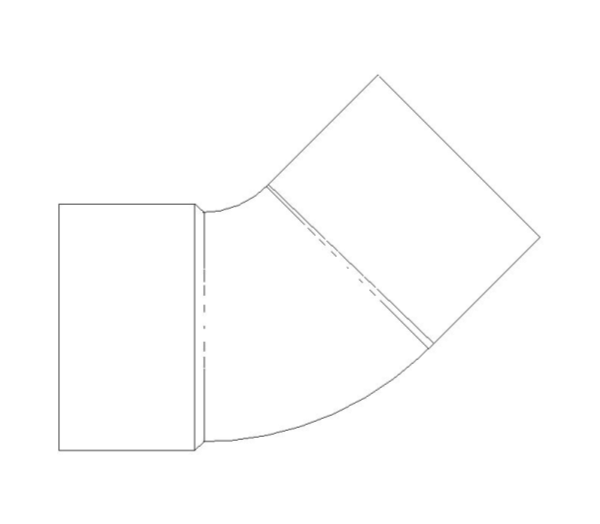

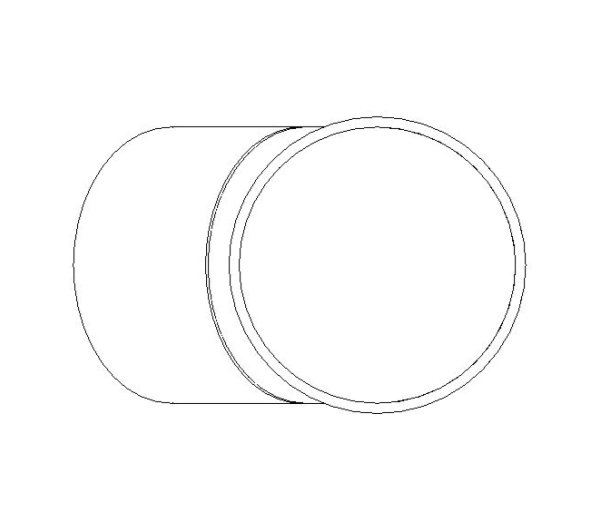

End Feed Fitting - 45 Degree Street Elbow

Download Add to collection

Description

BOSS Endfeed 45° Street Elbow

Object Data

1 Revision

Last Updated

28/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Capillary Fittings
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_EndFeedFittings_45DegreeStreetElbow
BodyCopper
Body SizeYes
Chf2 mm
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionCapillary
ConstituentsN/A
ControllerNo
Created Byenquiries@bssgroup.com
Created On2019-12-17 T09:00:00
D117 mm
D216 mm
D413 mm
DescriptionBOSS Endfeed 45° Street Elbow 15
Dn 5 RedNo
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings are manufactured to EN 1254. Available on sizes 6-54 mm. Quality assured in accordance with ISO9001:2008 from BSI. Copper fittings has been engineered for performance and backed by independent kitemark certification and WRAS approvals.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.BEND
Ifc Export TypeIfcPipeFittingType
Inner Rad6 mm
K Coefficient0
K Coefficient TableRegular 45, 90 and 180 Elbow
KeynoteS
L118 mm
L221 mm
Loss MethodNot Defined
Main BodyYes
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure25 Bar
Maximum Working Temperature110°C
ModelBOSS Endfeed 45° Street Elbow 15
Model Number62250318
Model ReferenceBOSS Endfeed 45° Street Elbow 15
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth17 mm
Nominal Dia15 mm
Nominal Height29 mm
Nominal Length39 mm
Nominal Rad8 mm
Nominal Width39 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size15mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsCopper
Type CommentsBOSS Endfeed 45° Street Elbow
Type NameBOSS Endfeed 45° Street Elbow
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
Z17 mm
Z27 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
