FIG 9400 DZR Brass Metering Station

by BOSS

Download Add to collection

Description

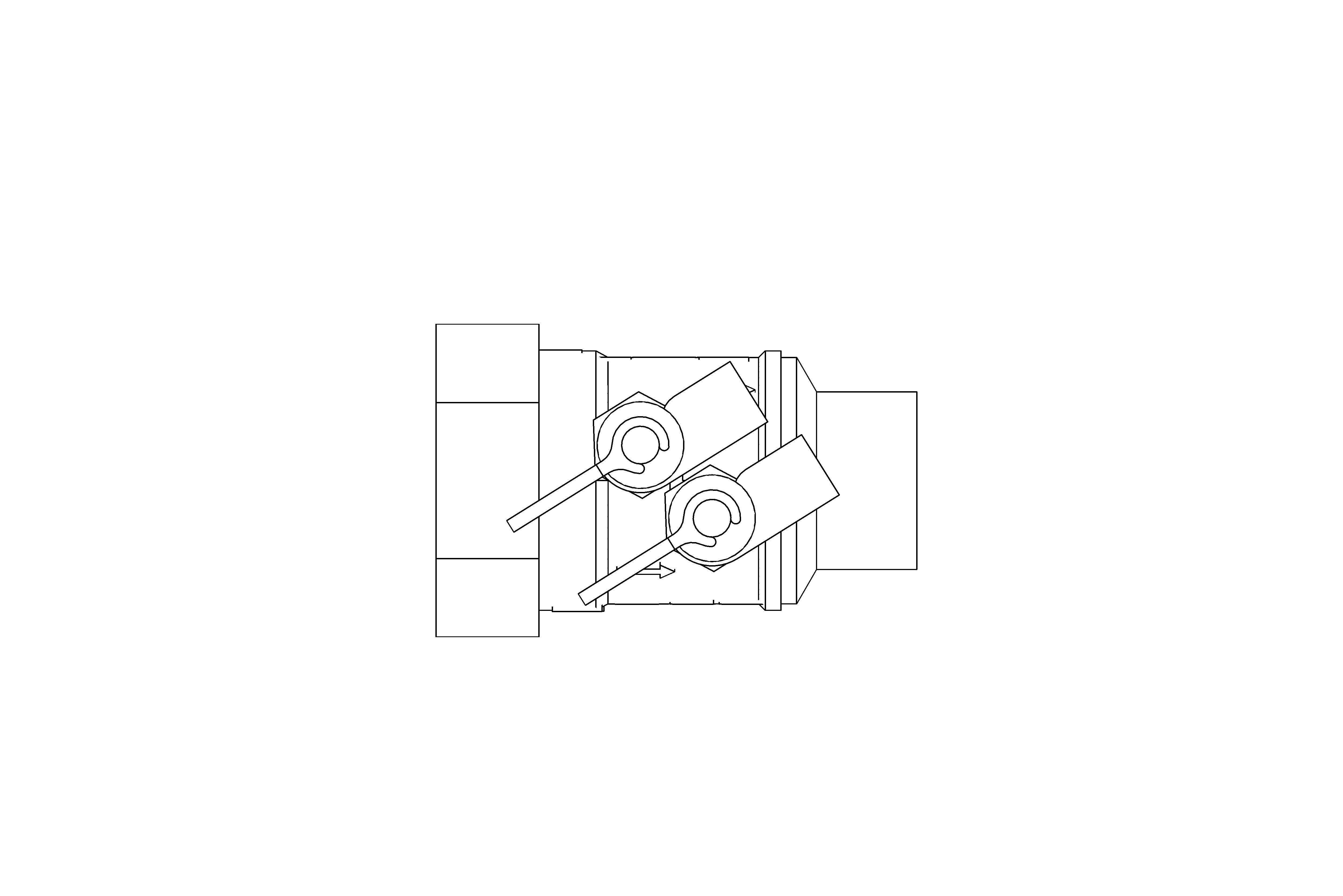

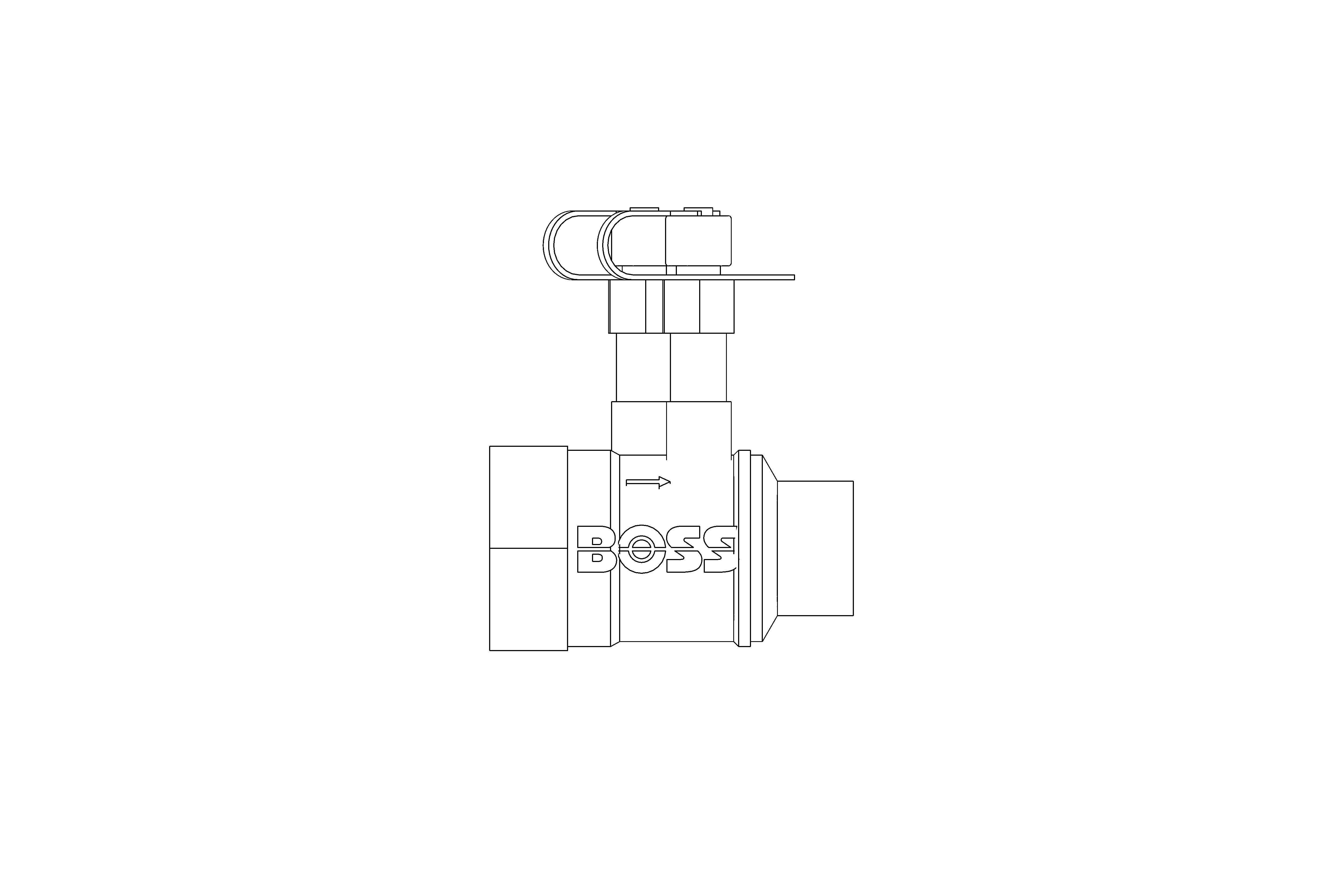

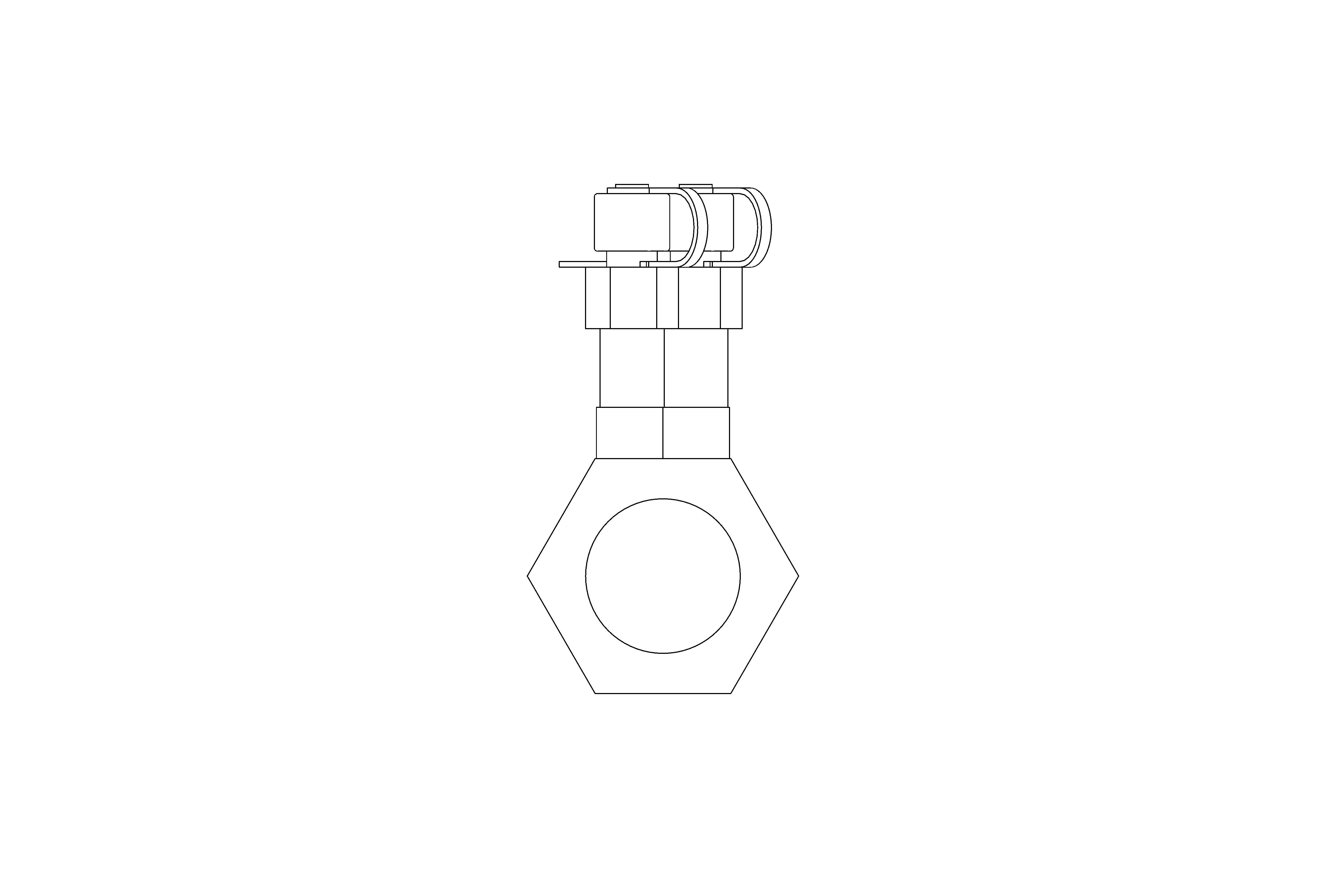

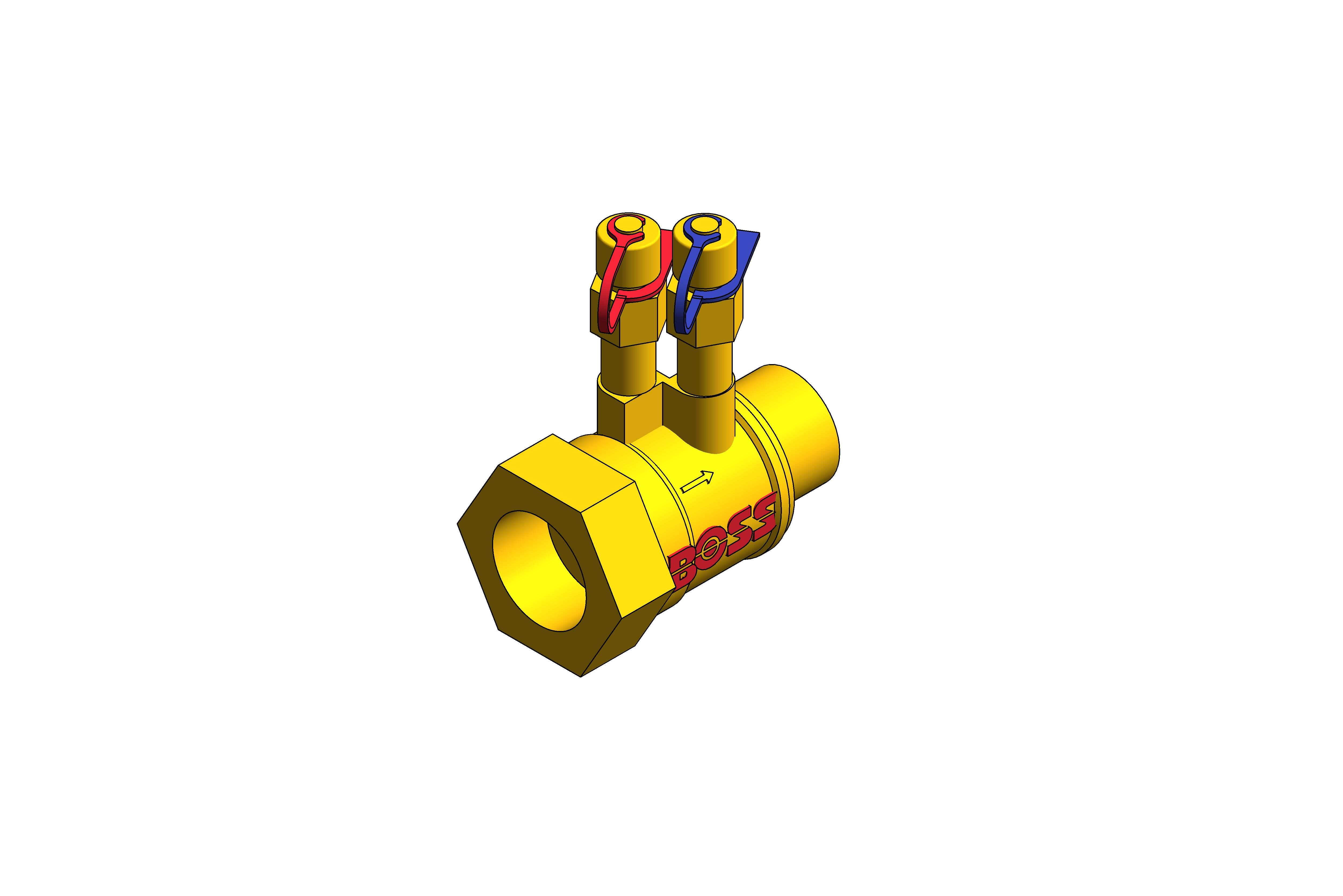

Metering Station

This download is for the Metering Station from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 6no SKU and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

20/06/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized ByKA
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_End Nut Diameter52.000000000000 mm
_End Nut Thickness16.800000000000 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BF24.800000000000 mm
BIM Object NameBOSS_PipeAccessory_BrassMeteringStation_DoubleCheckValve_102S
BM21.400000000000 mm
BodyBronze EN12164 CW602N
Body Inner Radius23.712000000000 mm
Body Outer Radius24.960000000000 mm
Body Width38.800000000000 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorBronze
Connection Size40.000000000000 mm
Connection Size Radius20.000000000000 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On1900-12-31T23:59:59
DescriptionFIG 9400 DZR Brass Metering Station
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
Extidentifiern/a
Featuresn/a
FinishBronze
Flow0.000000000000 L/s
Graden/a
H72.000000000000 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient6.61
KeynoteS90/660
L72.400000000000 mm
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
MaterialBronze
ModelFIG 9400 DZR Brass Metering Station
Model Number37000247
Model ReferenceFIG 9400 DZR Brass Metering Station
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameBOSS - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth0.000000000000 mm
Nominal Height72.000000000000 mm
Nominal Length72.400000000000 mm
Offset9.408000000000 mm
Pipe Offset13.171200000000 mm
Pressure RatingMax Pressure - 25 bar
Product Code37000247
Production Year2017
Referenced StandardBS 5154
Replacement Costn/a
Shapen/a
SizeDN40
Spare Partsn/a
Tag Number37000247
Test PointBrass EN12164 CW602N
Type CommentsDN40
Type NameFIG 9400 DZR Brass Metering Station
Upper Revolve Radius4.160000000000 mm
URLwww.bssindustrial.co.uk/Product-Centre/Valves-Filtration
Valve MaterialBOSS_Bronze
Venturi InsertBrass EN12165 CW602N
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight_Kg0.531
