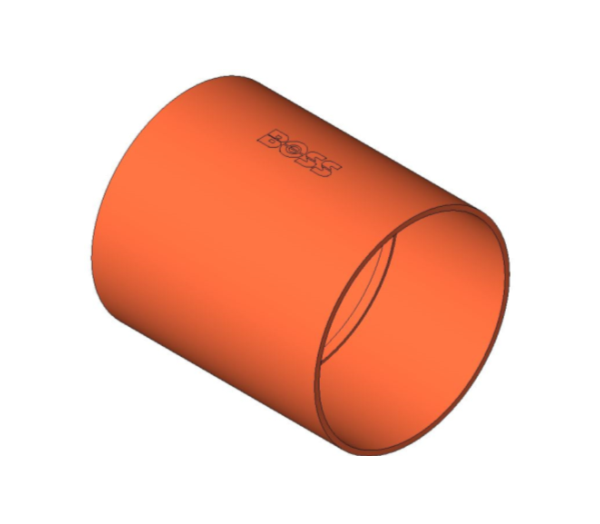

BOSS™ Brazing Straight Coupling BB1 [Brazing fittings]

Download Add to collection

Description

BB1 Coupling

Object Data

1 Revision

Last Updated

19/12/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Straight coupling
ApprovalN/A
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_BB1_Coupling
BodyCopper
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionBrazing
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On17/11/2019 09:00
D1114 mm
D2104 mm
DescriptionBOSS BB1 Coupling 108mm
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings with metric or BSP ends not compatible with imperial copper tube. Fittings should be assembled with silver brazing alloys to BS EN 1044. Available in sizes from 67 to 159 mm. Male Connectors have threads to ISO 7/EN 10226-1.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.JUNCTION
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L130 mm
L230 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure17.2 Bar
Maximum Working Temperature200°C
ModelBOSS BB1 Coupling
Model Number62210028
Model ReferenceBOSS BB1 Coupling 108mm
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth114 mm
Nominal Dia108 mm
Nominal Height114 mm
Nominal Length59 mm
Nominal Width59 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size108mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsCopper
Type CommentsBOSS BB1 Coupling
Type NameBOSS BB1 Coupling
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight0.506
Z110 mm
Z210 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
