BOSS™ Brazing Male Coupling BB3 [Brazing fittings]

Download Add to collection

Description

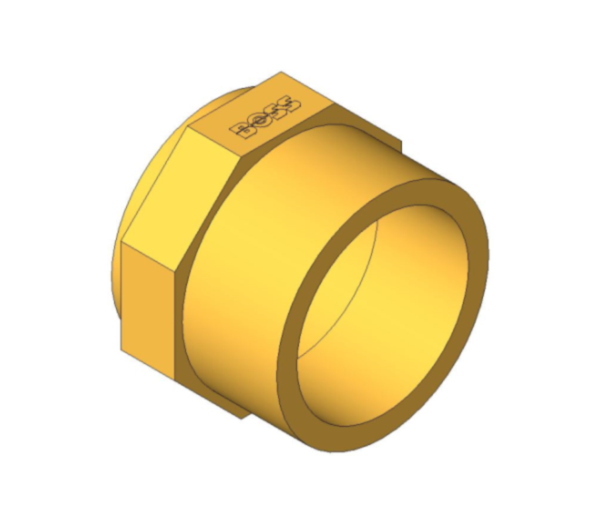

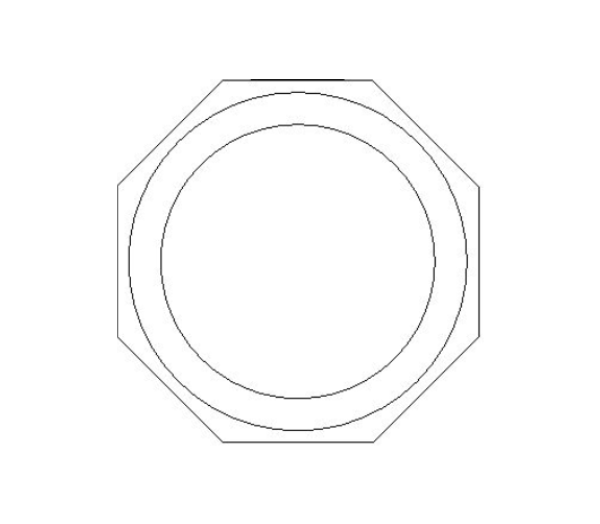

BB3 Male Coupling

Object Data

1 Revision

Last Updated

02/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
Across Flats78 mm
AirYes
ApplicationCopper Brazing Fittings
ApprovalN/A
Assembly CodeD2020100
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_BB3_MaleCoupling
BodyGunmetal
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorGunmetal
ConnectionBrazing
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-11-27 T09:00:00
D172 mm
D264 mm
D370 mm
DescriptionBOSS BB3 Male Coupling 67x2.1/2"
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings with metric or BSP ends not compatible with imperial copper tube. Fittings should be assembled with silver brazing alloys to BS EN 1044. Available in sizes from 67 to 159 mm. Male Connectors have threads to ISO 7/EN 10226-1.
FinishGunmetal
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.CONNECTOR
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableBasket Strainer
KeynoteS
L134 mm
L230 mm
L321 mm
L418 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialGunmetal
Maximum Working Pressure16 Bar
Maximum Working Temperature30°C
ModelBOSS BB3 Male Coupling 67x2.1/2"
Model Number62210061
Model ReferenceBOSS BB3 Male Coupling 67x2.1/2"
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth78 mm
Nominal Dia67 mm
Nominal Height78 mm
Nominal Length64 mm
Nominal Width64 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size67X2.1/2"
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Thread Dia74 mm
Thread Pos18 mm
Tubing OptionsN/A
Type CommentsBOSS BB3 Male Coupling
Type NameBOSS BB3 Male Coupling
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight0.63

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
