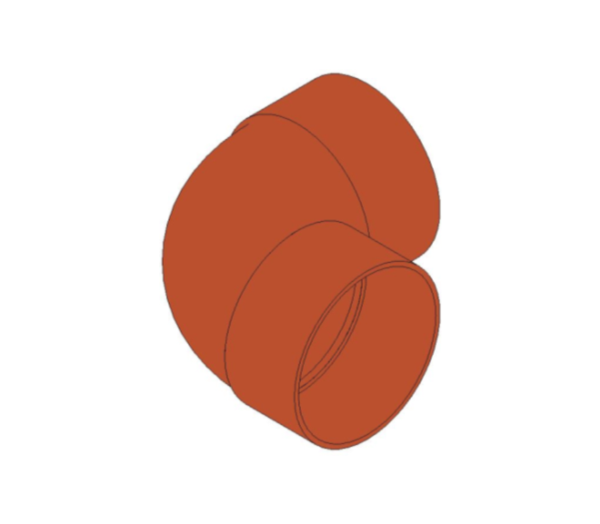

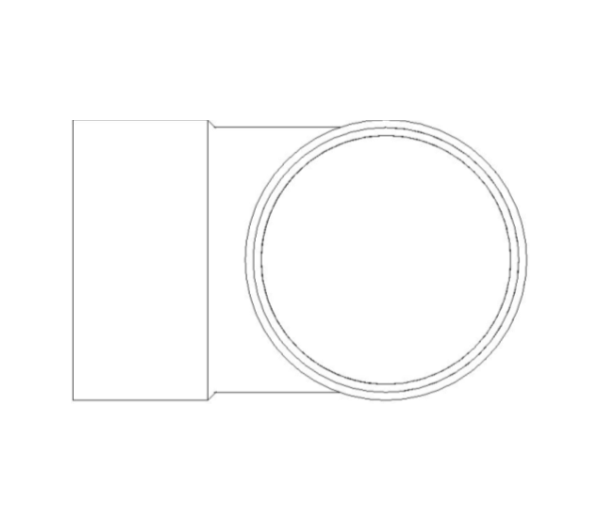

BOSS™ Brazing Elbow BB12 [Brazing fittings]

Download Add to collection

Description

BB12 Elbow

Object Data

1 Revision

Last Updated

19/12/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Brazing Fittings
ApprovalN/A
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_BB12_Elbow
BodyCopper
Body SizeYes
Chf2 mm
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionBrazing
ConstituentsN/A
ControllerNo
Created Byenquiries@bssgroup.com
Created On2019-11-17 T09:00:00
D180 mm
D272 mm
DescriptionBOSS Endfeed Elbow 76
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings with metric or BSP ends not compatible with imperial copper tube. Fittings should be assembled with silver brazing alloys to BS EN 1044. Available in sizes from 67 to 159 mm. Male Connectors have threads to ISO 7/EN 10226-1.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.BEND
Ifc Export TypeIfcPipeFittingType
Inner Rad36 mm
K Coefficient0
K Coefficient TableBasket Strainer
KeynoteS
L160 mm
L260 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure18.6 Bar
Maximum Working Temperature200°C
ModelBOSS Endfeed Elbow 76
Model Number62210360
Model ReferenceBOSS Endfeed Elbow 76
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth80 mm
Nominal Dia76 mm
Nominal Height100 mm
Nominal Length100 mm
Nominal Rad38 mm
Nominal Width100 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size76mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsCopper
Type CommentsBOSS Endfeed Elbow
Type NameBOSS Endfeed Elbow
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight0.447
Z140 mm
Z240 mm
