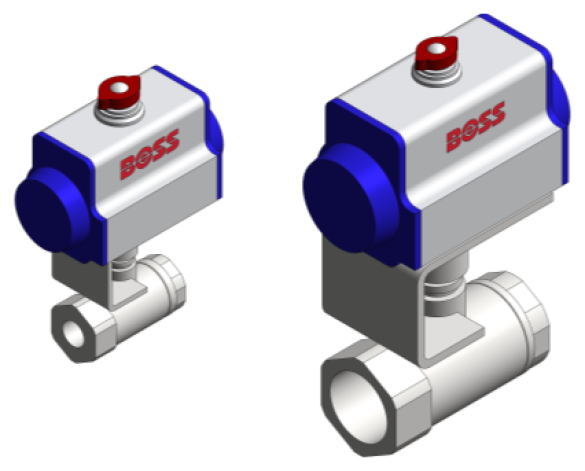

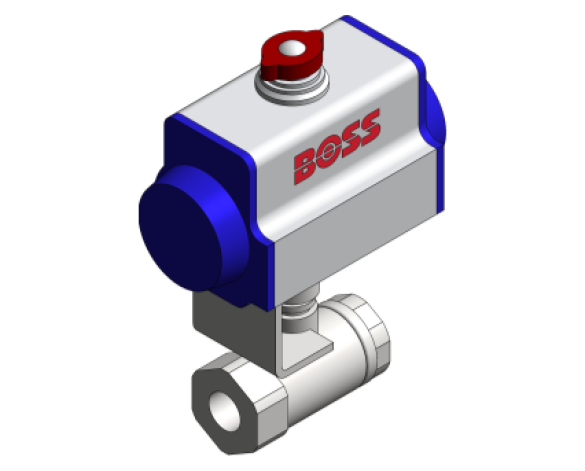

Stainless Steel 2 Piece Screwed with SR / DA Pneumatic Actuator FIG 241-SR with Spring Return Actuator FIG 241-DA with Double Acting Actuator [Ball Valves]

by BOSS

Download Add to collection

Description

Ball Valve - Pheumatic Actuator B381DA-B382DA-SR - (6no SKUs)

This download is for the Ball Valve - Pheumatic Actuator B381DA-B382DA-SR from BOSS Valves. A BSS Company.

The download includes 2no Revit Pipe Accessory family (.rfa file), 2no Type Catalogue (.txt file) and Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

20/06/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid14
_BS Bible Version0
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
A52.000000000000 mm
A_Calc0.520000000000 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BIM Object NamePipeAccessory_BallValveWithPheumaticActuator_BOSS_241DA
Body Rad12.532000000000 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorBlue, Red, Grey, Silver
Connect Height25.116000000000 mm
Connect Inter Rad2.080000000000 mm
Connection Length31.824000000000 mm
Connectionsn/a
Connection Size10.000000000000 mm
Connect Left22.256000000000 mm
Connect Outer Rad4.160000000000 mm
Connect Right23.036000000000 mm
Connect Thickness2.340000000000 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On2017-04-01T00:00:00
D110.000000000000 mm
DescriptionScrewed BSPT Female, Stainless steel body, ball and stem, RTFE seat. Full port, Max pressure 1000 WOG, Temperature 10.5 bar at 180°C, 70 bar at -10°C to +40°C. Fitted with Pneumatic Actuator, sized for 5.5 bar (80 psi) air supply, fully assembled and tested
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesScrewed BSPT Female, Stainless steel body, ball and stem, RTFE seat. Full port, Max pressure 1000 WOG, Temperature 10.5 bar at 180°C, 70 bar at -10°C to +40°C. Fitted with Pneumatic Actuator, sized for 5.5 bar (80 psi) air supply, fully assembled and tested
FinishPlastic, Steel
Flow0.000000000000 L/s
Graden/a
Hex Offset0.780000000000 mm
Hex Rad12.532000000000 mm
Hex Rad 213.676000000000 mm
Hex Rad 312.272000000000 mm
Ifc Export AsIfcFlowController
Ifc Export TypeIfcValveType
K Coefficient0
KeynoteS
Left Nut Length11.856000000000 mm
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
MaterialPlastic, Steel
ModelStainless Steel 2 Piece Screwed With DA Pneumatic Actuator
Model Number10mm - 3/8" - 241DA
Model ReferenceStainless Steel 2 Piece Screwed With DA Pneumatic Actuator
NBS DescriptionBall stop valves
NBS Object NameBOSS - Ball stop valves
NBS Office Master Tagn/a
NBS Reference90-20-80/325
Neck Base Length22.568000000000 mm
Neck Base Rad6.968000000000 mm
Neck Length 10.572000000000 mm
Neck Length 21.196000000000 mm
Neck Length 41.716000000000 mm
Neck Lenth 31.976000000000 mm
Neck Rad 13.120000000000 mm
Neck Rad 26.344000000000 mm
Neck Rad 35.200000000000 mm
Neck Top Length15.080000000000 mm
Neck Top Rad7.488000000000 mm
Nominal Depth0.000000000000 mm
Nominal Height0.000000000000 mm
Nominal Length0.000000000000 mm
Nominal Radius5.000000000000 mm
Pressure Ratingn/a
Product Coden/a
Production Year2017
Referenced Standardn/a
Replacement Costn/a
Right Nut Length5.668000000000 mm
Shapen/a
Size10mm - 3/8"
Spare Partsn/a
Type Comments10mm - 3/8" - 241DA
Type NameStainless Steel 2 Piece Screwed With DA Pneumatic Actuator
URLwww.bssindustrial.co.uk/
Valve MaterialBOSS_StainlessSteel
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
Weight_Kgn/a
