BOSS™ Brazing Stop End BB61 [Brazing fittings]

Download Add to collection

Description

BB61 Stop End

Object Data

1 Revision

Last Updated

19/12/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

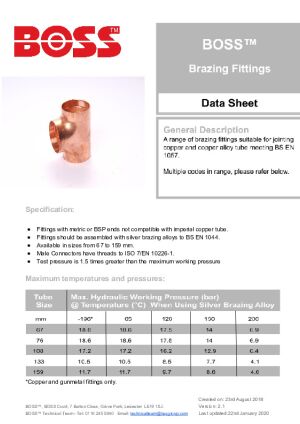

Technical Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirYes
ApplicationCopper Brazing Fittings
ApprovalN/A
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_BB61_StopEnd
BodyCopper
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorBrass
ConnectionBrazing
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-08-17 T09:00:00
D1115 mm
DescriptionBOSS BB61 Stop End 108
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings with metric or BSP ends not compatible with imperial copper tube. Fittings should be assembled with silver brazing alloys to BS EN 1044. Available in sizes from 67 to 159 mm. Male Connectors have threads to ISO 7/EN 10226-1.
FinishCopper
Gas CombustibleYes
Gas CorrosiveYes
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.OBSTRUCTION
Ifc Export TypeIfcPipeFittingType
K Coefficient0
KeynoteS
L130 mm
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure17.2 Bar
Maximum Working Temperature200°C
ModelBOSS BB61 Stop End 108
Model Number62210722
Model ReferenceBOSS BB61 Stop End 108
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth115 mm
Nominal Dia108 mm
Nominal Height115 mm
Nominal Length30 mm
Nominal Width30 mm
OilYes
Pressure DropN/A
Production Year2019
Referenced StandardN/A
Replacement CostN/A
ShapeCylindrical
Size108mm
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamYes
Tubing OptionsN/A
Type CommentsBOSS BB61 Stop End
Type NameBOSS BB61 Stop End
URLwww.bssindustrial.co.uk/products/valves-and-filtration
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
Weight0.402
Z14 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
