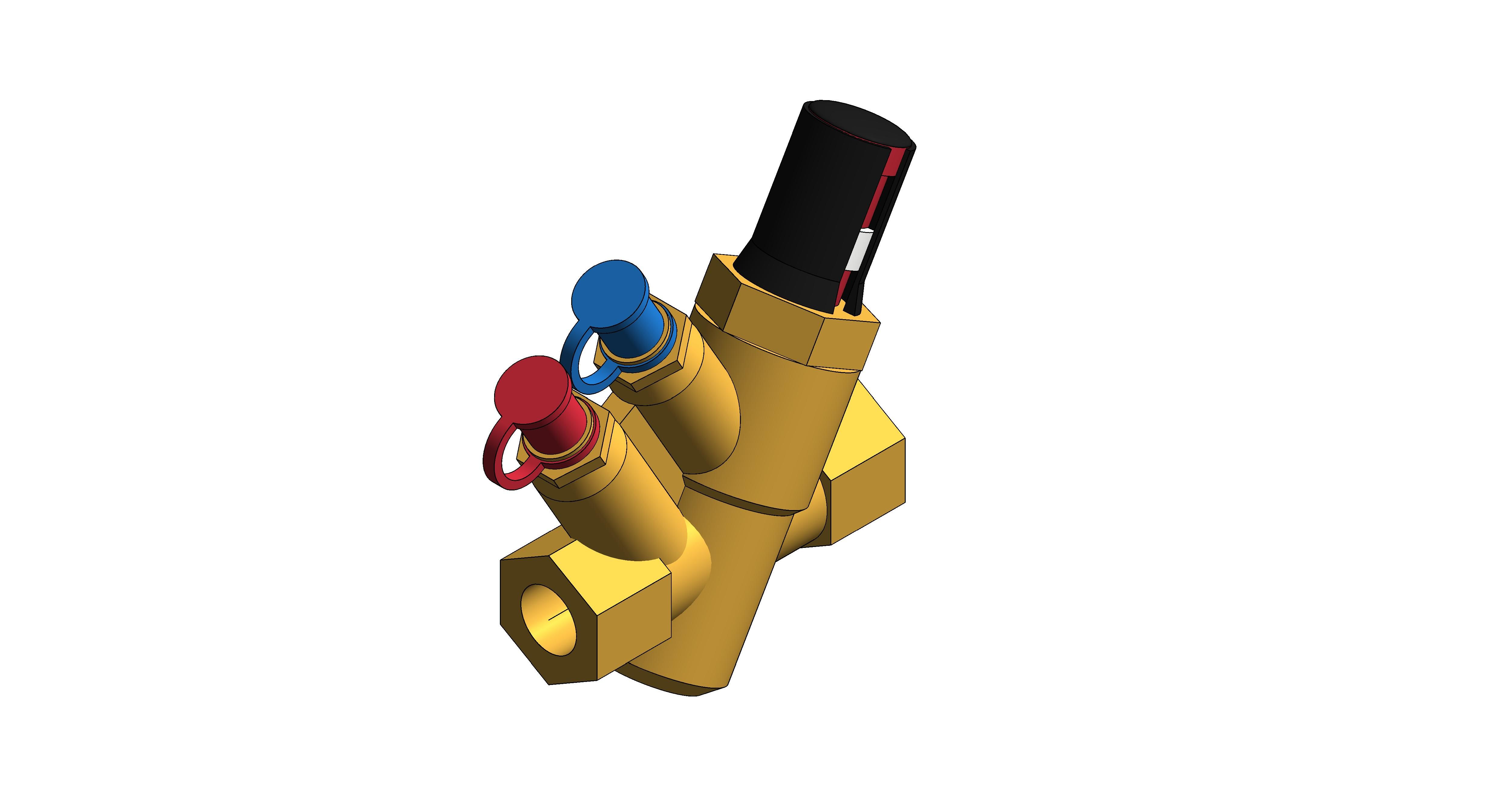

Balancing Valve - pre-settable flow controller Kombi-VX (V5003FY)

by Resideo: Smart Home Products and Systems

Description

The V5003F Kombi-VX is an automatic balancing valve. It is designed for balancing of heating and cooling systems by providing a constant flow rate even under changing pressure conditions. The flow rate can be externally adjusted via presettings.

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

01/08/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

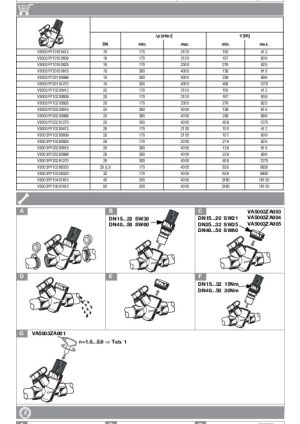

Installation Guide

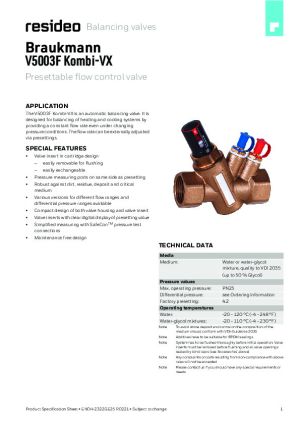

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/balancing-valve-v5003fy/document/object-user-guide
a20.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b12.0 mm
BIM Object NameResideo_BalancingValve_V5003FY
c12.0 mm
Cap ColourBlack
Cap MaterialResideo - Plastic - Black
Classification NameUniclass2015
Classification ValuePr_65_54_95_86
Code Performancen/a
Colorn/a
Connection Dia15.0 mm
Connection Radius7.5 mm
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2023-01-25 T09:00:00
DescriptionFLOW CONTROLLER DN15, 2100MBAR, 412L/H
Documentation Certificateswww.bimstore.co/products/balancing-valve-v5003fy/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/balancing-valve-v5003fy/document/installation-guide
Documentation Literaturewww.bimstore.co/products/balancing-valve-v5003fy/document/product-literature
Documentation Maintenancewww.bimstore.co/products/balancing-valve-v5003fy/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/balancing-valve-v5003fy/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Flow Presetting Range100 … 412 l/h
Graden/a
Hex Width26.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
KeynoteS
LargeNo
ManufacturerResideo
Manufacturer NameResideo
MaterialBrass CuZn40Pb2
Maximum Differential Pressure210.0 kPa
MediumNo
Medium Temperature-20 ... 120 °C
Medium TypeWater or water-glycol mixture according to VDI 2035
Minimum Differential Pressure17.0 kPa
ModelV5003FY10150412
Model NumberV5003FY10150412
Model ReferenceFLOW CONTROLLER DN15, 2100MBAR, 412L/H
NBS DescriptionThermostatic balancing valves
NBS Noten/a
NBS Object NameResideo - Thermostatic balancing valves
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth34.0 mm
Nominal Height110.0 mm
Nominal Length83.0 mm
Nominal PressurePN25
Primary MaterialResideo - Brass
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Scale ColourWhite
Scale MaterialResideo - Plastic - White
Secondary MaterialResideo - Plastic - Black
Shapen/a
Size34mm (D) x 110mm (H) x 83mm (L)
SmallYes
Spare Partsn/a
Tick0
Type CommentsFLOW CONTROLLER DN15, 2100MBAR, 412L/H
Type NameV5003FY10150412
URLwww.resideo.com/
Valve Control FunctionFlow Control FCV
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/
Weight0.55 kg
