ART 427 - Flexible Connector

by Albion Valves

Download Add to collection

Description

Description
PN6 Flanged Flexible Connector

Connection
Flanged PN6

Pressure
6 Bar Rated

Temperature
-20°C to +100°C EPDM

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

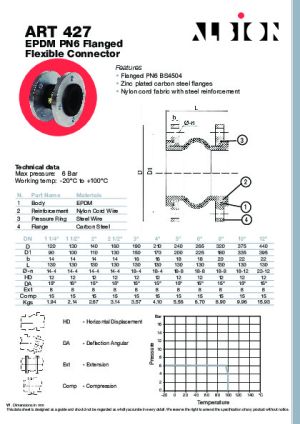

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-427/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b16 mm
BIM Object NameAlbionValves_PipeAccessories_FlexibleConnector_ART427
BlackEPDM Plastic
Classification NameUniclass2015
Classification ValuePr_65_52_62_62
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D210 mm
D1170 mm
DescriptionPN6 Flanged Flexible Connector
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-427/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishCarbon Steel and EPDM
Graden/a
Holes Dia18 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inside Diameter100 mm
KeynoteS
L130 mm
L120 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCarbon Steel and EPDM
Max Pressure6 Bar
ModelPN6 Flanged Flexible Connector
Model NumberDN100 - DN4"
Model ReferencePN6 Flanged Flexible Connector
NBS DescriptionPipeline connectors
NBS Object NameAlbion Valves - Pipeline connectors
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth210 mm
Nominal Height210 mm
Nominal Length130 mm
Outside Diameter110 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Socket Diameter142 mm
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePN6 Flanged Flexible Connector
URLwww.albionvalvesuk.com/
Valve FinishSteel, Carbon
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight4.10 kgs
Working Temperature-20°C to +100°C EPDM

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
