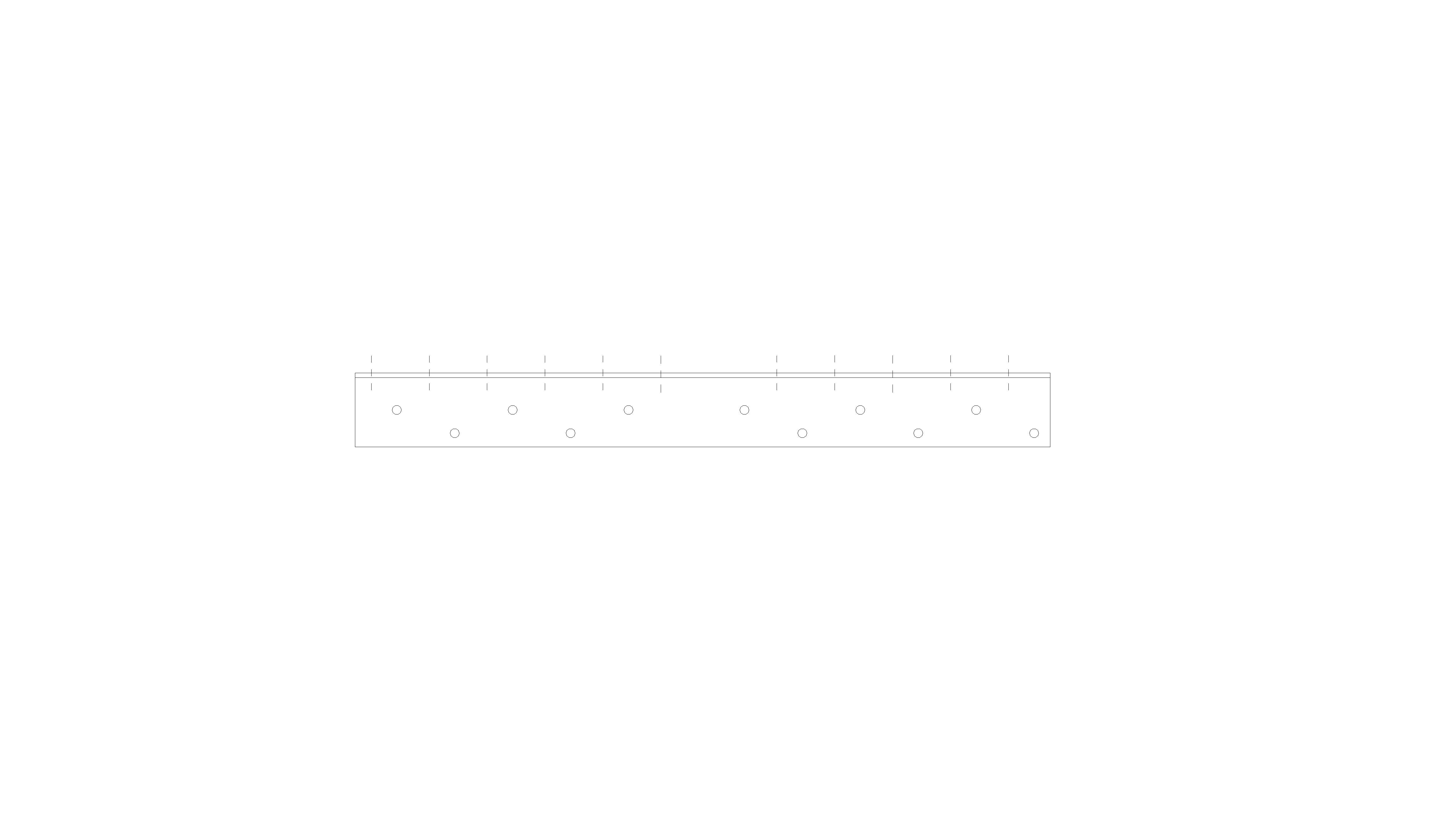

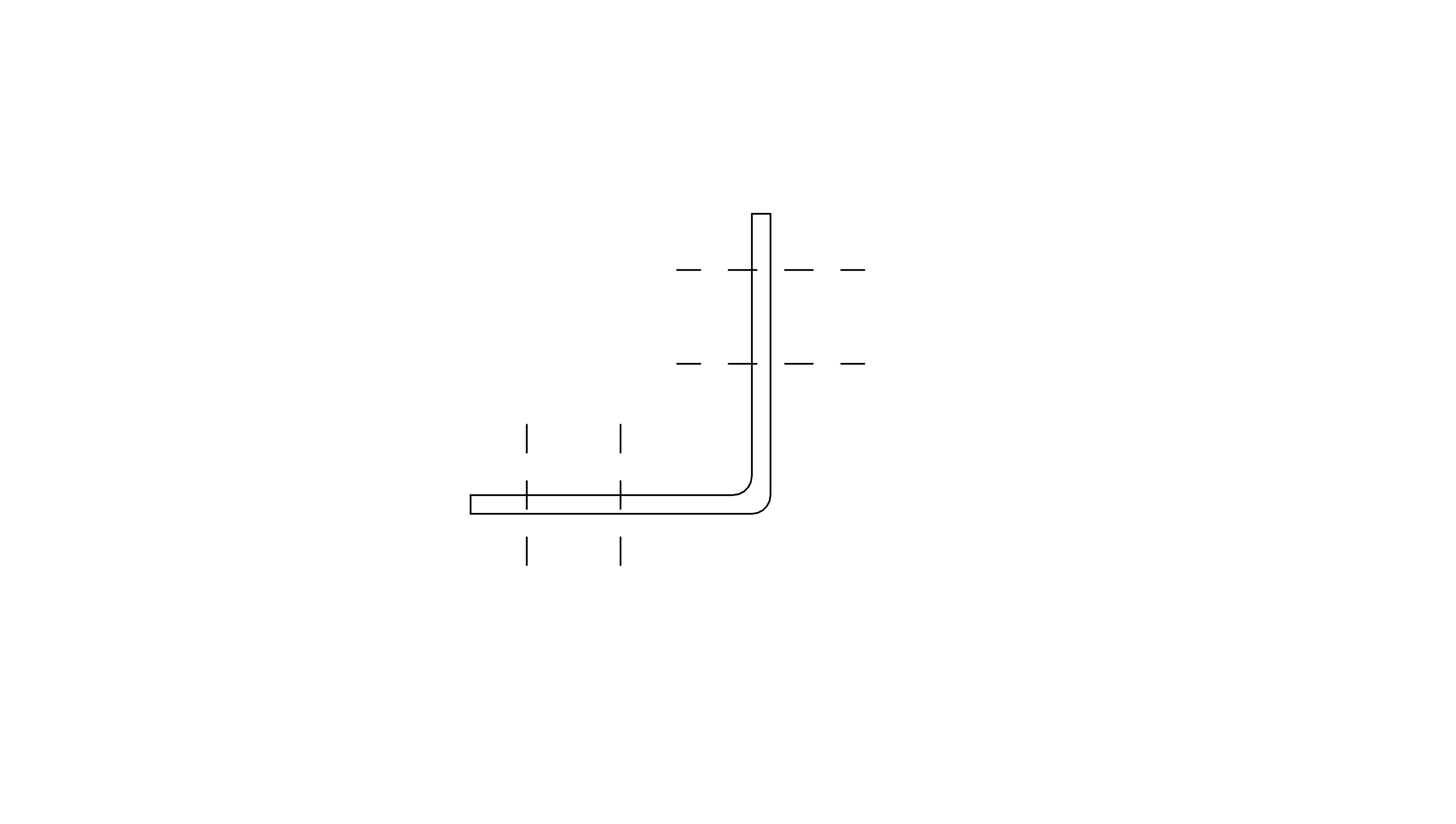

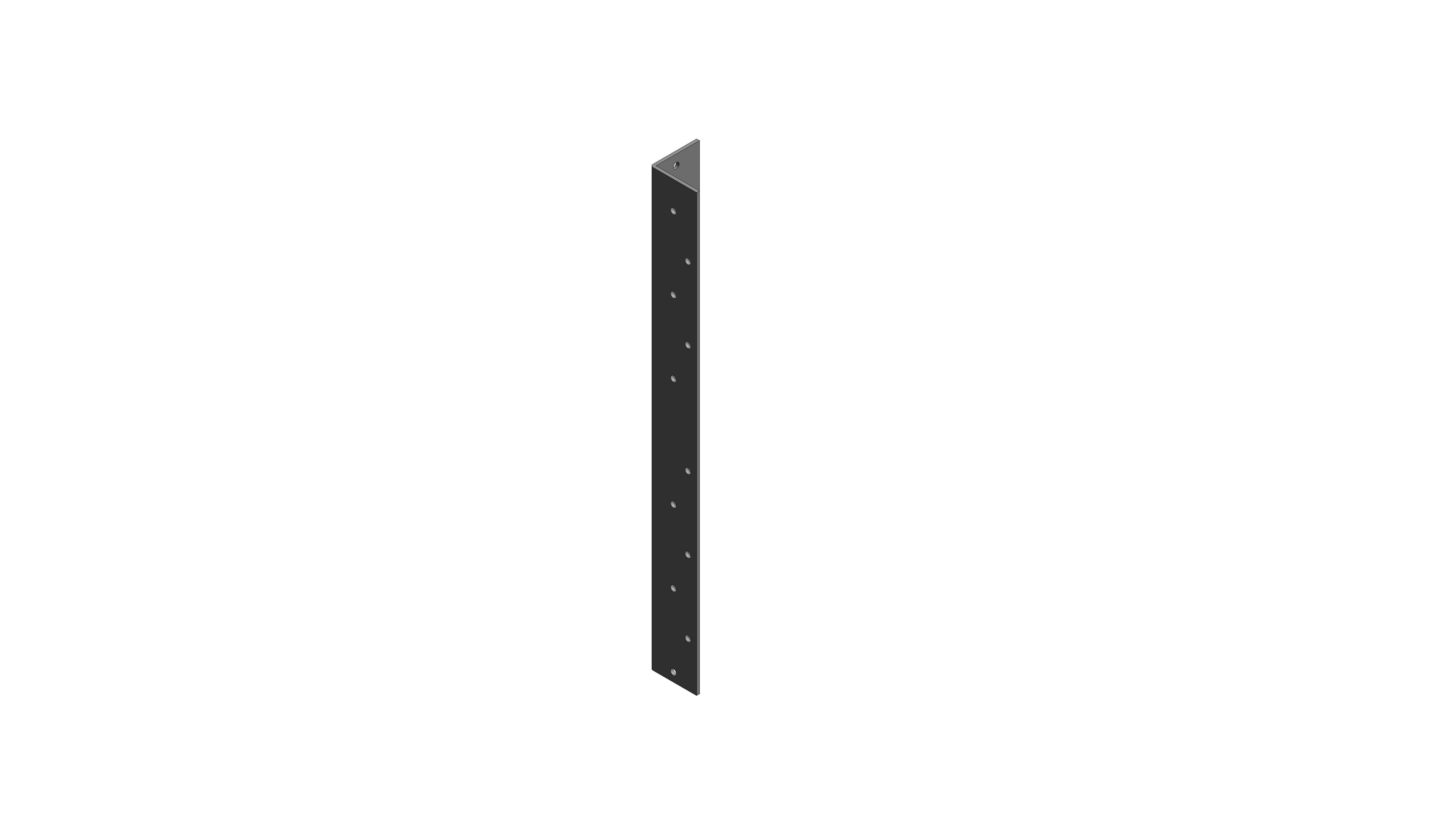

Angle Plate

Download Add to collection

Description

Used as a safe economical method of connecting joists to perlins. Angle plates must be used in pairs to prevent eccentric loading

Object Data

1 Revision

Last Updated

04/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/angle-plate/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
BIM Object NameExpamet_GalvanizedSteelBrackets_AnglePlate
Characteristic Load Capacity6.8kN - 1 Pair, 16.8kN - 2 Pairs (ULS
Classification NameUniclass2015
Classification ValuePr_20_85_09_33
Code PerformanceBS EN 10346:2015, DX51D + Z275, ETAG015 (ETA13/0804), ETAG015/TR016
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019-06-18 T09:00:00
DescriptionUsed as a safe economical method of connecting joists to perlins. Angle plates must be used in pairs to prevent eccentric loading
Documentation Certificateswww.expamet.co.uk
Documentation Installation Guidewww.expamet.co.uk
Documentation Literaturewww.expamet.co.uk
Documentation Maintenancewww.expamet.co.uk
Documentation Technicalwww.expamet.co.uk
Duration UnitYears
Expected Life0
Features2mm Thick Hot Dip Galvanized
Finish275g/m² Zinc Coating
Framing Anchor MaterialExpamet_GalvanizedSteel
Graden/a
Ifc Export AsIfcMember
Ifc Export TypeIfcMemberTypeEnum.PLATE
KeynoteG20
ManufacturerExpamet
Manufacturer NameExpamet
MaterialHot Dip Galvanized Mild Steel
ModelAP30030
Model NumberUsed as a safe economical method of connecting joists to perlins.
Model ReferenceAP30030
NBS DescriptionGalvanized steel brackets
NBS Object NameExpamet; Galvanized steel brackets
NBS Office Master Tagn/a
NBS Reference45-70-05/370
Nominal Length32.00 mm
Number Of Nail Holes22
Overall Height300.00 mm
Overall Length32.00 mm
Overall Width32.00 mm
Production Year2019
Referenced StandardBS EN 10346:2015, DX51D + Z275, ETAG015 (ETA13/0804), ETAG015/TR016
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Thickness2.00 mm
Type CommentsUsed as a safe economical method of connecting joists to perlins.
Type NameAP30030
URLwww.expamet.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
