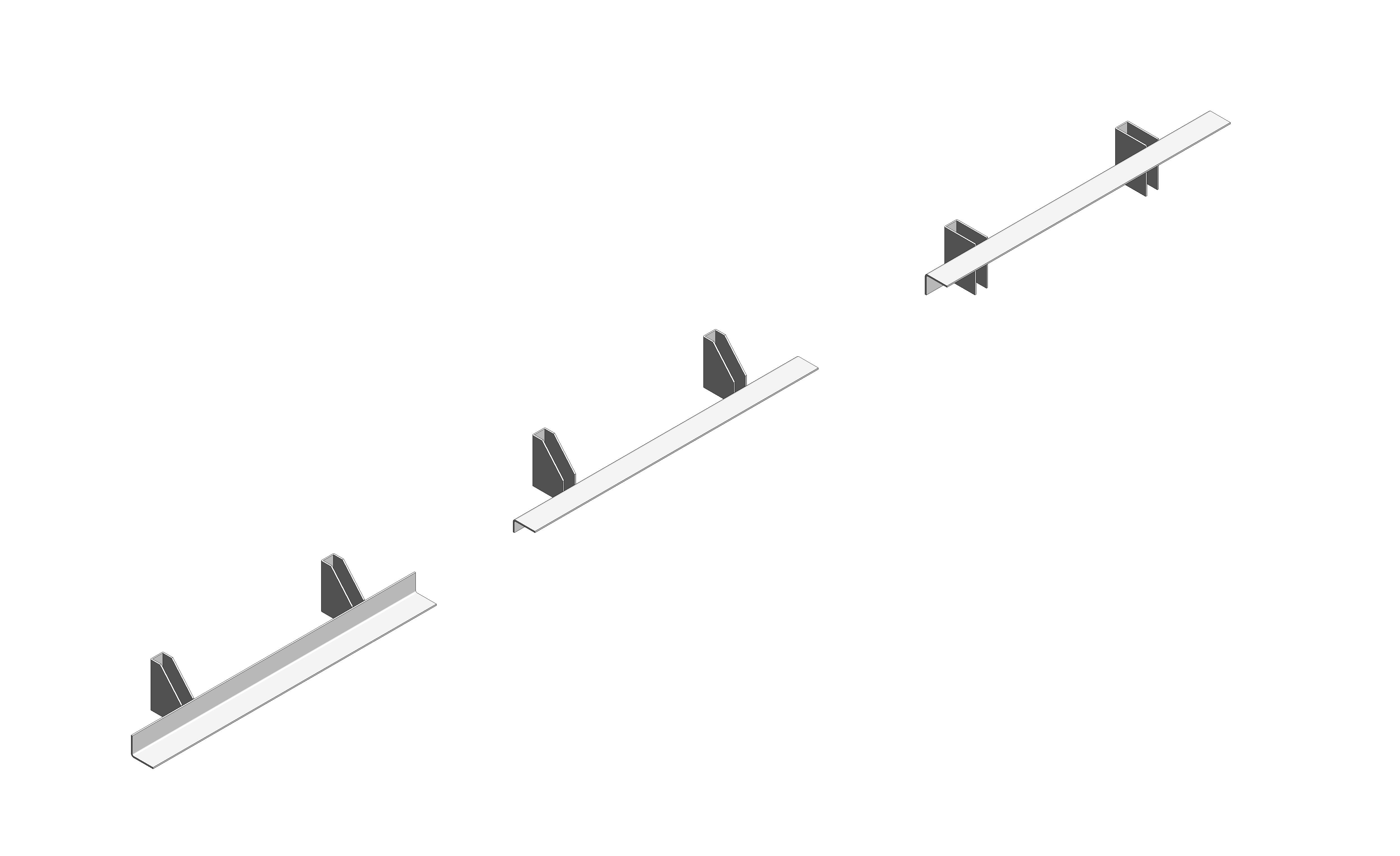

Masonry Support

Description

Custom, bespoke Angle Bracket support solutions can be made to order direct from Expamet. The brackets downloadable are place holder reference objects only and should be used as such. Brackets are manufactured to BS EN 1090-1:2009+A1:2011 and can be galvanized upon request to BS EN ISO 1461:2009.

Object Data

1 Revision

Last Updated

03/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorCL
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeB
Asset TypeFixed
BIM Object NameExpamet_BracketAngleSupport
Bracket Height170 mm
Classification NameUniclass2015
Classification ValuePr_20_85_48_84
Code Performancen/a
ColorStainless Steel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2018-12-01T09:00:00
DescriptionBespoke made-to-order Masonry Suppport systems – can be supplied in a variety of configurations to suit load and application.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesBespoke design to suit cavity and load
FinishStainless Steel
Fire Ratingn/a
First Bracket Offset218 mm
Fixing Length100 mm
Fixing Position0 mm
GradeGrade 304
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.LINTEL
KeynoteL
ManufacturerExpamet
Manufacturer NameExpamet
MaterialStainless Steel
ModelBracket Angle Support
Model NumberBracket Angle Support
Model ReferenceBracket Angle Support
NBS DescriptionStainless steel lintels
NBS Object NameEpamet - Stainless steel lintels
NBS Reference45-80-50/406
Nominal Depth0 mm
Nominal Height0 mm
Production Year2018
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Sizen/a
Spare Partsn/a
Type CommentsBracket Angle Support
Type NameBracket Angle Support
URLwww.expamet.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk
