Alyne Radiator

893
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

23/02/2024

Download BIM

Add to collection

Available for:

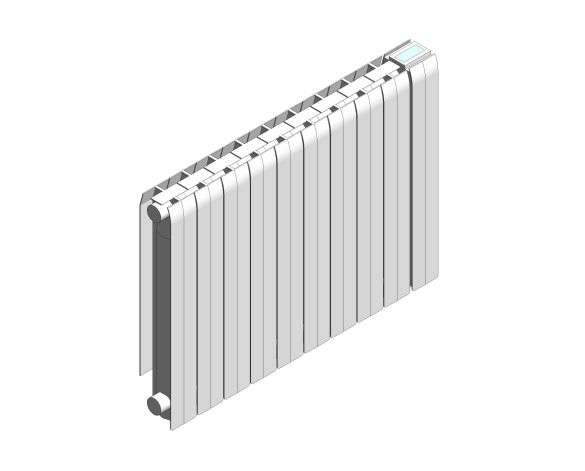

The Alyne is an oil filled radiator made with slimline and compact vertical flat columns which stylishly curve at the top. The Alyne is a fluid filled radiator which heats up by using an electrical element immersed in thermodynamic oil inside. This maintenance free and specially formulated fluid is designed to distribute the heat quickly and evenly across the radiator, which in turn emits the heat into your room through radiation.

This aluminium radiator has a high heat transfer and a lower surface temperature, so it is practical, userfriendly and ensures the maximum flexibility in terms of use. It is then an excellent solution when different areas of the house have different temperature needs.

Click here to view our interactive brochure

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Array6
Array Offset440.00 mm
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_MechanicalEquipment_Radiator_Alyne
Btu/hr3414
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Class Of ProtectionII
Code Performancen/a
ColorWhite
Constituentsn/a
ControlsOil Filled
Created Byinfo@stelrad.com
Created On2024-01-11 T09:00:00
Default Elevation0.00 mm
DescriptionThe Alyne is an oil filled radiator made with slimline and compact vertical flat columns which stylishly curve at the top. The Alyne is a fluid filled radiator which heats up by using an electrical element immersed in thermodynamic oil inside. This maintenance free and specially formulated fluid is designed to distribute the heat quickly and evenly across the radiator, which in turn emits the heat into your room through radiation. This aluminium radiator has a high heat transfer and a lower surface temperature, so it is practical, userfriendly and ensures the maximum flexibility in terms of use. It is then an excellent solution when different areas of the house have different temperature needs.
Documentation Certificateswww.bimstore.co/products/alyne/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/alyne/document/installation-guide
Documentation Literaturewww.bimstore.co/products/alyne/document/product-literature
Documentation Maintenancewww.bimstore.co/products/alyne/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/alyne/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Heat Output1000 W
Heat SourceIntegrated Control Panel
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Indice Of ProtectionIPx4
KeynoteT
ManufacturerStelrad
Manufacturer NameStelrad
Materialn/a
ModelAlyne
Model NumberAlyne
Model Reference580mm(H) x 580mm(L)
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth0.00 mm
Nominal Height580.00 mm
Nominal Length580.00 mm
Production Year2024
Radiator FinishStelrad - Metal - White
Referenced Standardn/a
Replacement Costn/a
Sizen/a
Spare Partsn/a
Type Comments580mm(H) x 580mm(L)
Type Name580mm(H) x 580mm(L)
UINE022-0580-0580
URLwww.stelrad.com
Voltage230V - 50Hz
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Weight13.50 kg
