33XU-F - Gate Valve

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits:

Efficient stop valves with flow in either direction
Commonly used where a minimum pressure drop is important
Flexible wedge disc compensates for deformation of body due to pipe stress
Outside screw & yoke
Flanged
Seat ring is seal welded to eliminate leak paths

Object Data

1 Revision

Last Updated

03/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

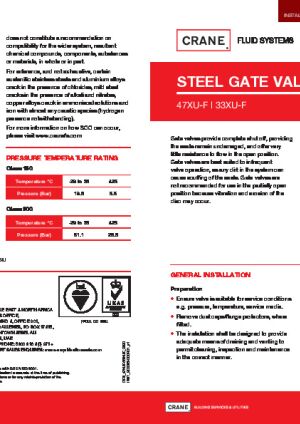

Installation Guide

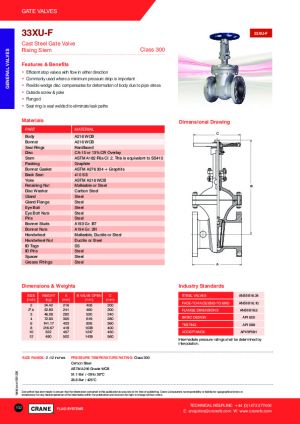

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
a50.00 mm
A457.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b146.10 mm
Back Seat410 SS
B Closed947.50 mm
BIM Object NameCraneFS_CastSteelGateValve_33XU-F
BodyA216 WCB
Bolt Holes16
BonnetA216 WCB
Bonnet GasketASTM A276 304 + Graphite
Bonnet NutsA194 Gr. 2H
Bonnet StudA193 Gr. B7
B Open1247.00 mm
c292.00 mm
C450.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_84
Code Performancen/a
Colorn/a
Connection Size250.00 mm
Connection Size Radius125.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-03-01 T:09:00:00
d90.50 mm
D405.00 mm
DescriptionEfficient stop valves with flow in either direction. Commonly used where a minimum pressure drop is important. Flexible wedge disc compensates for deformation of body due to pipe stress. Outside screw & yoke. Flanged. Seat ring is seal welded to eliminate leak paths.
DiscCA-15 or 13% CR Overlay
Disc WasherCarbon Steel
Documentation Certificateswww.bimstore.co/products/33xu-f-gate-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/33xu-f-gate-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/33xu-f-gate-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/33xu-f-gate-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/33xu-f-gate-valve/document/technical-data-sheet
Duration UnitYear
e460.00 mm
Expected Life0
Eye BoltSteel
Eye Bolt NutsSteel
f57.66 mm
Featuresn/a
Finishn/a
GlandSteel
Gland FlangeSteel
Graden/a
Grease FittingsSteel
HandwheelMalleable, Ductile or Steel
Handwheel NutDuctile or Steel
ID PinsSteel
ID TagsSS
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K355.00 mm
K Coefficient0
K2177.50 mm
KeynoteS
L28.00 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Model33XU-F
Model Number33XU-F
Model Reference33XU-F - Cast Steel Gate Valve - Rising Stem - Class 300
NBS DescriptionSteel gate valves
NBS Noten/a
NBS Object NameCrane FS - Steel gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/313
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
PackingGraphite
PinSteel
Pressure Temperature RatingClass 300 Carbon Steel; ASTM A216 Grade WCB; 51.1 Bar / -29 to 38°C; 28.8 Bar / 425°C.
Production Year2022
Raised Face Dia319.00 mm
Raised Face Height3.00 mm
Referenced StandardSteel Valves: ANSI B16.34; Face-To-Face / End-To-End: ANSI B16.10; Flange Dimensions: ANSI B16.5; Basic Design: API 600; Testing: API 598; Acceptance: API RP591.
Replacement Costn/a
Retaining NutMalleable or Steel
Seat RingHardfaced
Shapen/a
Size10"
SpacerSteel
Spare Partsn/a
StemASTM A182 F6a Cl. 2. This is equivalent to SS410
Type Comments33XU-F - Cast Steel Gate Valve - Rising Stem - Class 300
Type Name33XU-F - Cast Steel Gate Valve - Rising Stem - Class 300
Type Visibility7
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
x150.00 mm
y35.00 mm
YokeASTM A216 WCB
z40.00 mm
