3 Way Nickel Plated Brass Ball Valve, T Port [00/0078]

by Valves Instruments Plus

Download Add to collection

Description

3 Way Nickel Plated Brass Ball Valve, T Port, Lever Operated.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

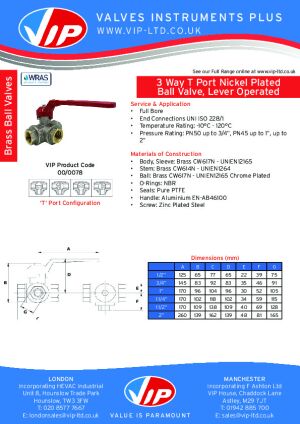

Object User Guide

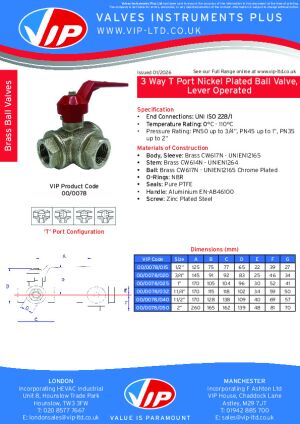

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD15
Asset TypeFixed
BIM Object NameVIP_3_WAY_T_PORT_BALL_VALVE(00/0078)
Centre Height34 mm
Centre Width11 mm
Classification NameUniclass 2025
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Red
Connection Outer26 mm
Connection Ring5 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-06-06T09:00:00
D15 mm
Default Elevation0 mm
Description3 Way T Port Ball Valve
Documentation Certificateswww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ed2b2863-24cd-4a22-9d34-f1ca523df53d/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H65 mm
I125 mm
KeynoteS
L77 mm
L19 mm
L239 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working PressurePN50 up to 3/4”, PN45 up to 1”, PN35 up to 2”
Model3 Way T Port Ball Valve
Model Number00/0078/015
Model Reference3 Way Ball Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter15 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
ThreadsUNI ISO 228/1
Type Comments00/0078/015
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Brass_Ball_Valves/00_0078/
Valve Outer Body Width38 mm
VIP - Lever HandleVIP - Aluminium (Red)
VIP - Valve BodyVIP - Nickel Plated Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-10°C to 110°C
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
