1 Piece Stainless Steel Ball Valve [00/0038]

by Valves Instruments Plus

Download Add to collection

Description

1 Piece 316 Stainless Steel Ball Valve, PTFE Seats & Seals, Class 1000, Lever Handle with Locking Device, Screwed BSPP Female Ends

Object Data

1 Revision

Last Updated

20/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

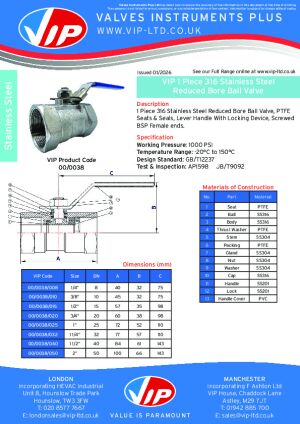

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN08
Asset TypeFixed
Bar Width8 mm
BIM Object NameVIP_SS_REDUCED_BORE_BALL_VALVE(00/0038)
Center Height2 mm
Centre Dia8 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Blue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-04-07T09:00:00
Default Elevation0 mm
DescriptionLever Operated Reduced Bore Ball Valve
Design StandardGB/T12237
Documentation Certificateswww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fcd8912f-8cbe-4dcd-90b2-7336e29c01e8/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H32 mm
KeynoteS
L40 mm
L17 mm
Lever ColourVIP - Blue Lever
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure1000 PSI / 6.4 Mpa
ModelLever Operated Reduced Bore Ball Valve
Model Number00/0038/008
Model ReferenceBall Valves
N22 mm
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Diameter8 mm
Nut Height5 mm
Nut Size4 mm
Production Year2024
Reduced Bore5 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN08
Spare Partssales@vip-ltd.co.uk
T75 mm
Test & InspectionAP1598 JB/T9092
Type Comments00/0038/008
Type NameDN08
URLwww.vip-ltd.co.uk/Valves/VIP_Stainless_Steel_Products/00_0038/
Valve Body MaterialVIP - Stainless Steel
Valve Body Thickness12 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature-20°C to 120°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
