YewdaleDefiant VL30 Premium Profiled Vertical Blind

  • Revit, BIM, Download, Free, Components, Window, Décor, VL30, Premium, Profiled, Vertical, Blind
  • Revit, BIM, Download, Free, Components, Window, Décor, VL30, Premium, Profiled, Vertical, Blind
  • Revit, BIM, Download, Free, Components, Window, Décor, VL30, Premium, Profiled, Vertical, Blind
  • Revit, BIM, Download, Free, Components, Window, Décor, VL30, Premium, Profiled, Vertical, Blind
  • Revit, BIM, Download, Free, Components, Window, Décor, VL30, Premium, Profiled, Vertical, Blind
  • Views 1.8k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

21/01/2016

Available for:
  • Logo: Autodesk Revit

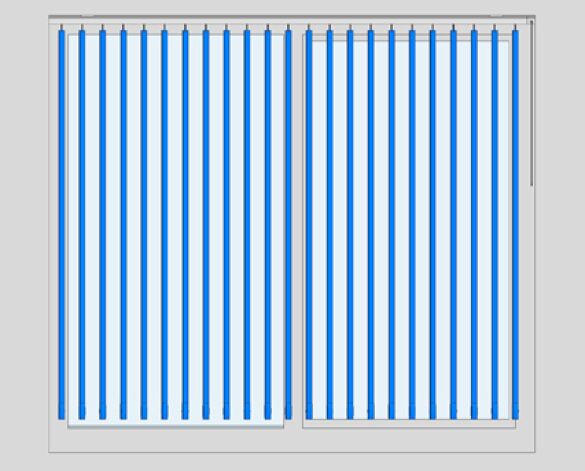

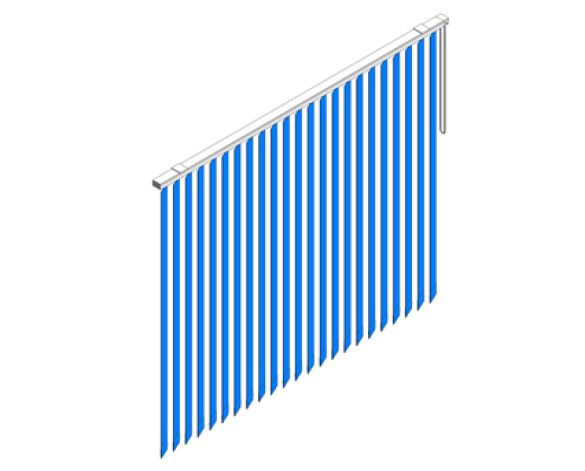

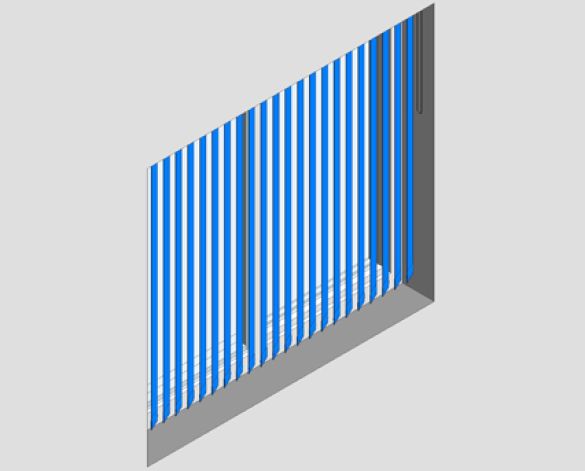

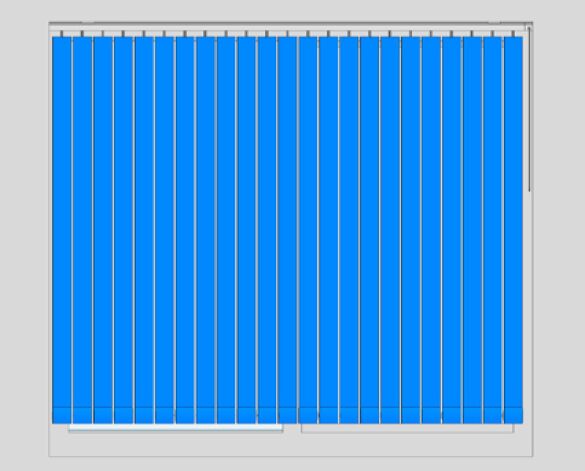

The YewdaleDefiant VL30 is a premium profiled white aluminium 40 x 25mm headrail and wheeled carrier trucks. The constant transport of louvres is guaranteed by the precison made aluminium spindle shaft. The bead chain control with built in slip clutch ensures exact louvre tilt control.

This system is available on the YewdaleKestrel Magnetic System as an anti-ligature blinds for the prevention of patient self-harm in mental health areas. Please see the Kestrel section for more details.

This download is a face based component created by bimstore.co.uk for Yewdale.

This component is created in Revit 2014 and is in line with 2015 industry standards.

Revision 2 - Cobie data updated
