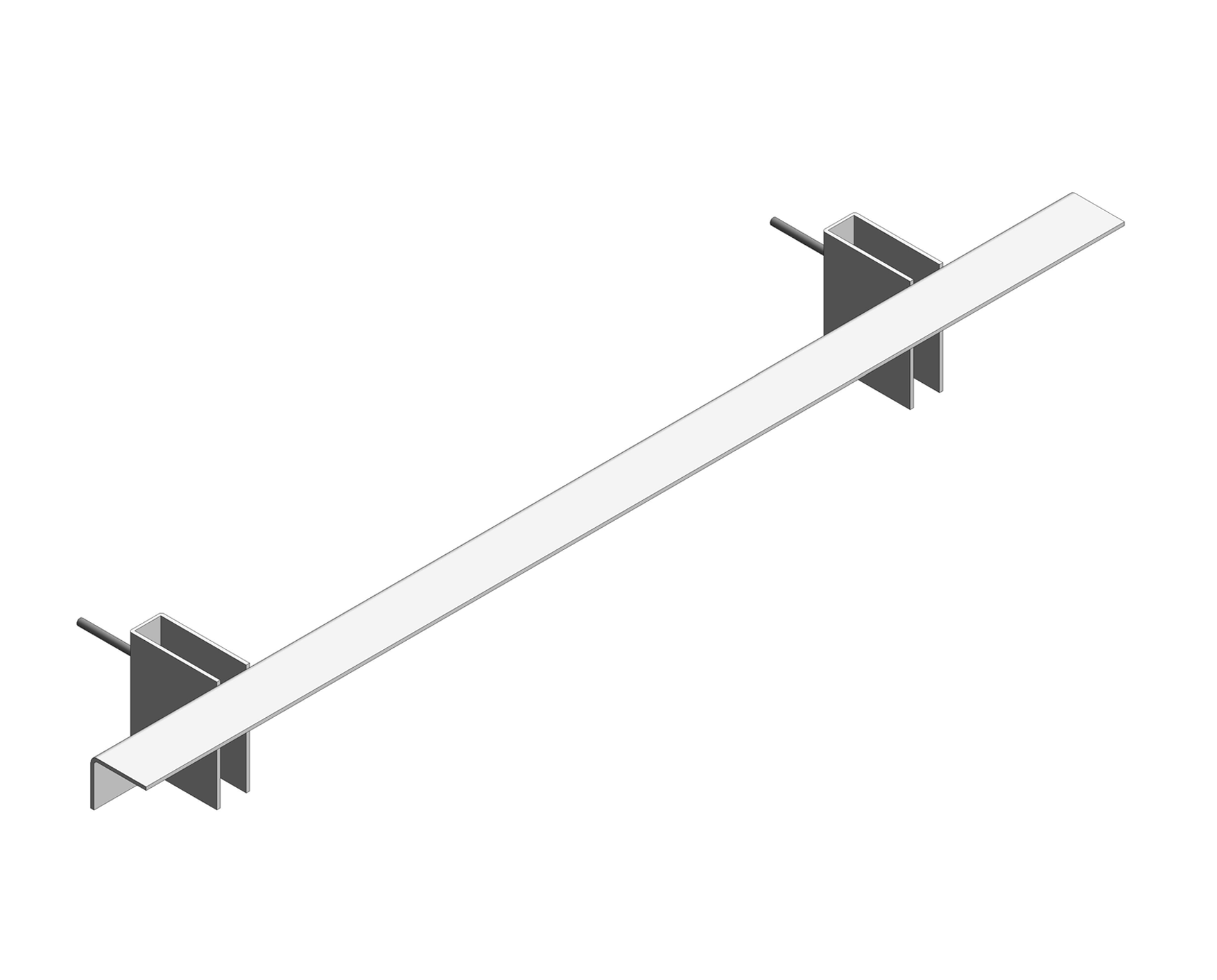

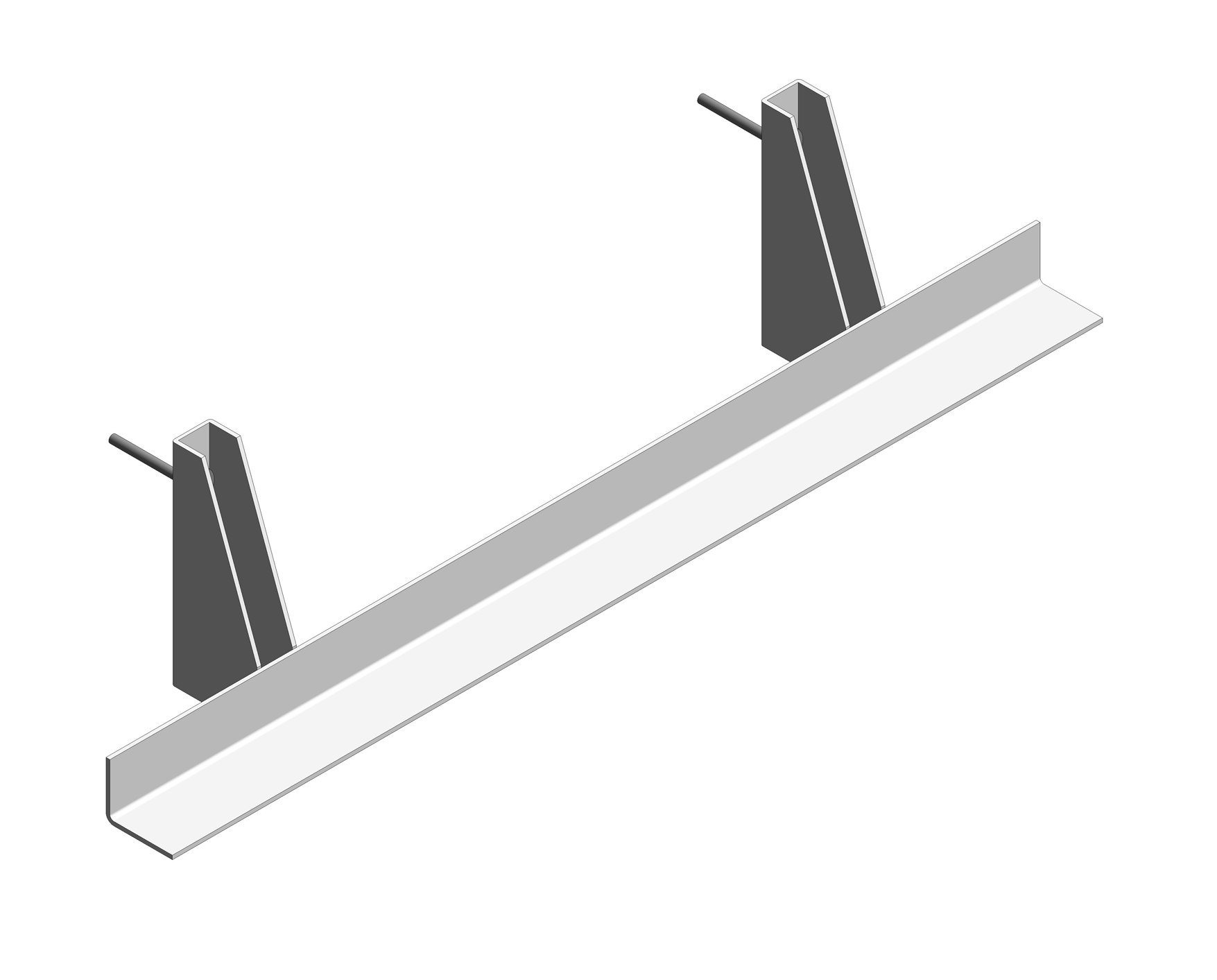

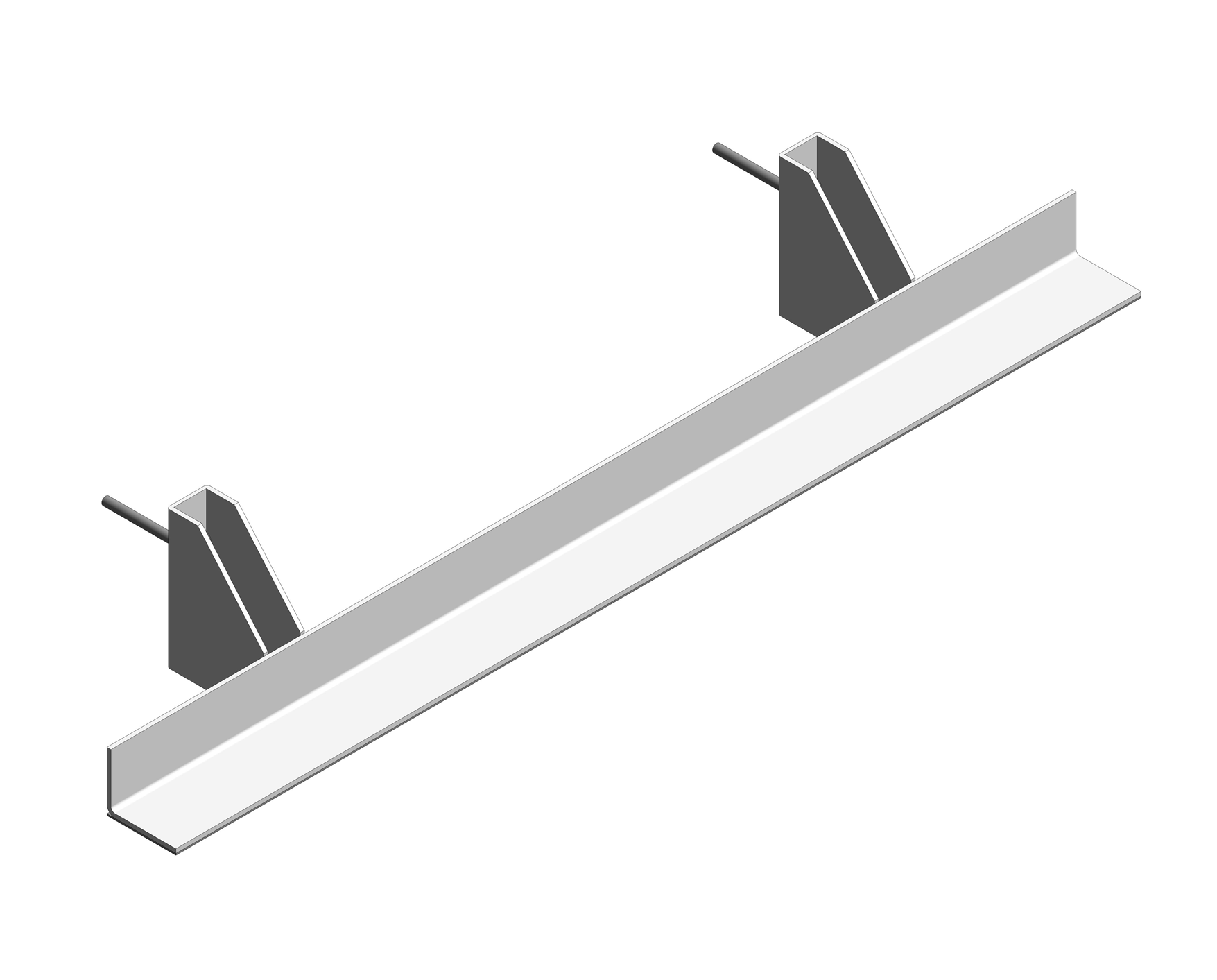

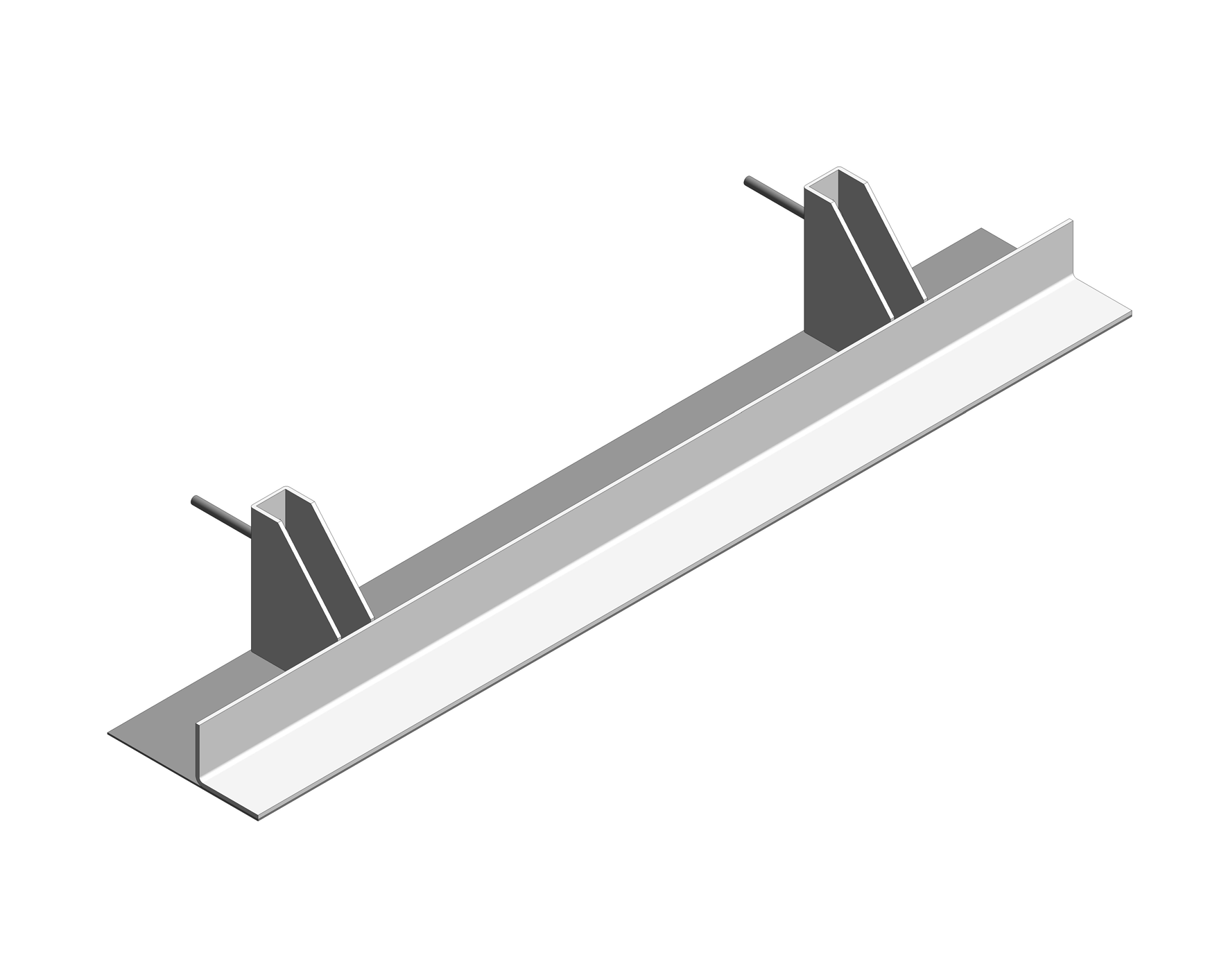

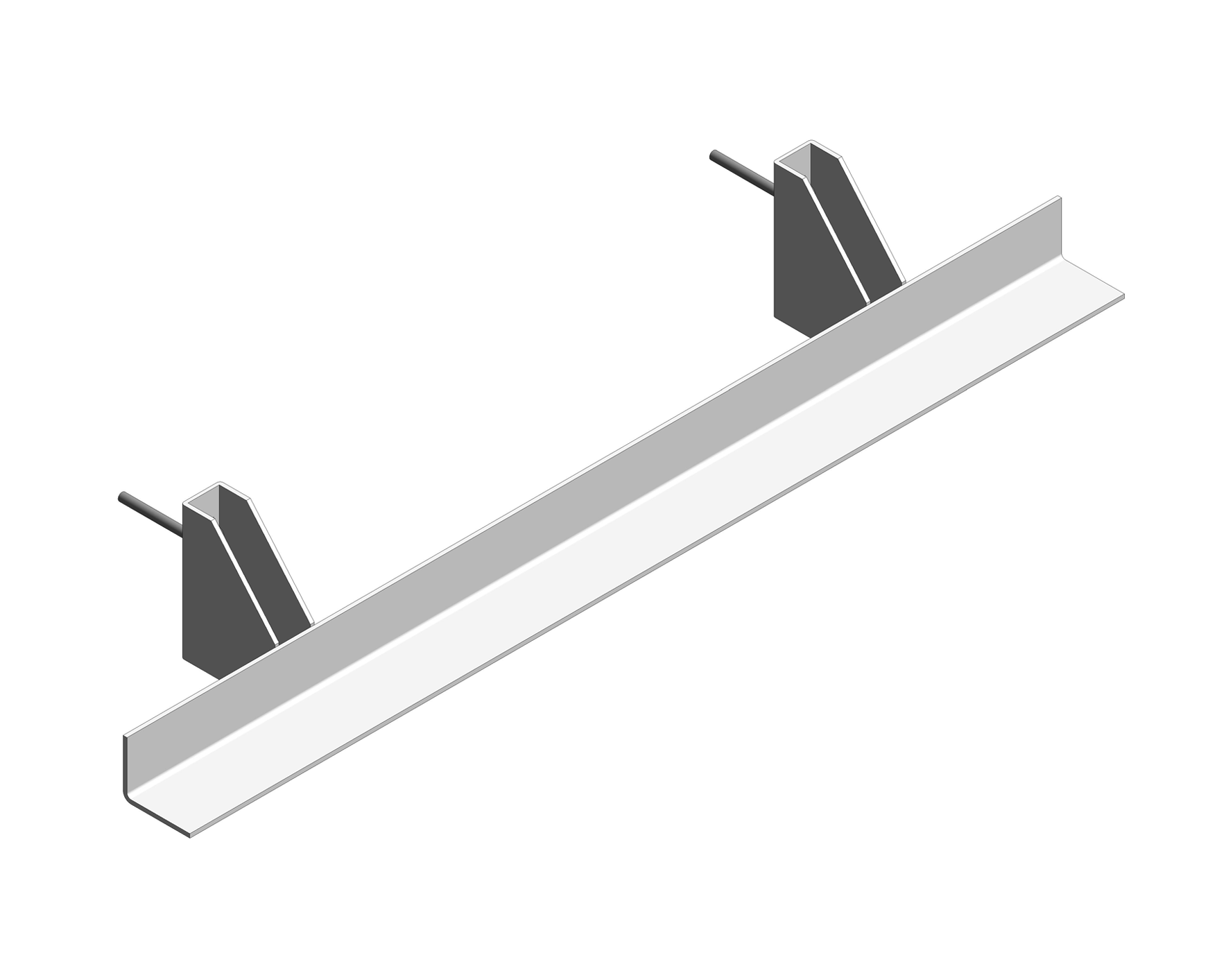

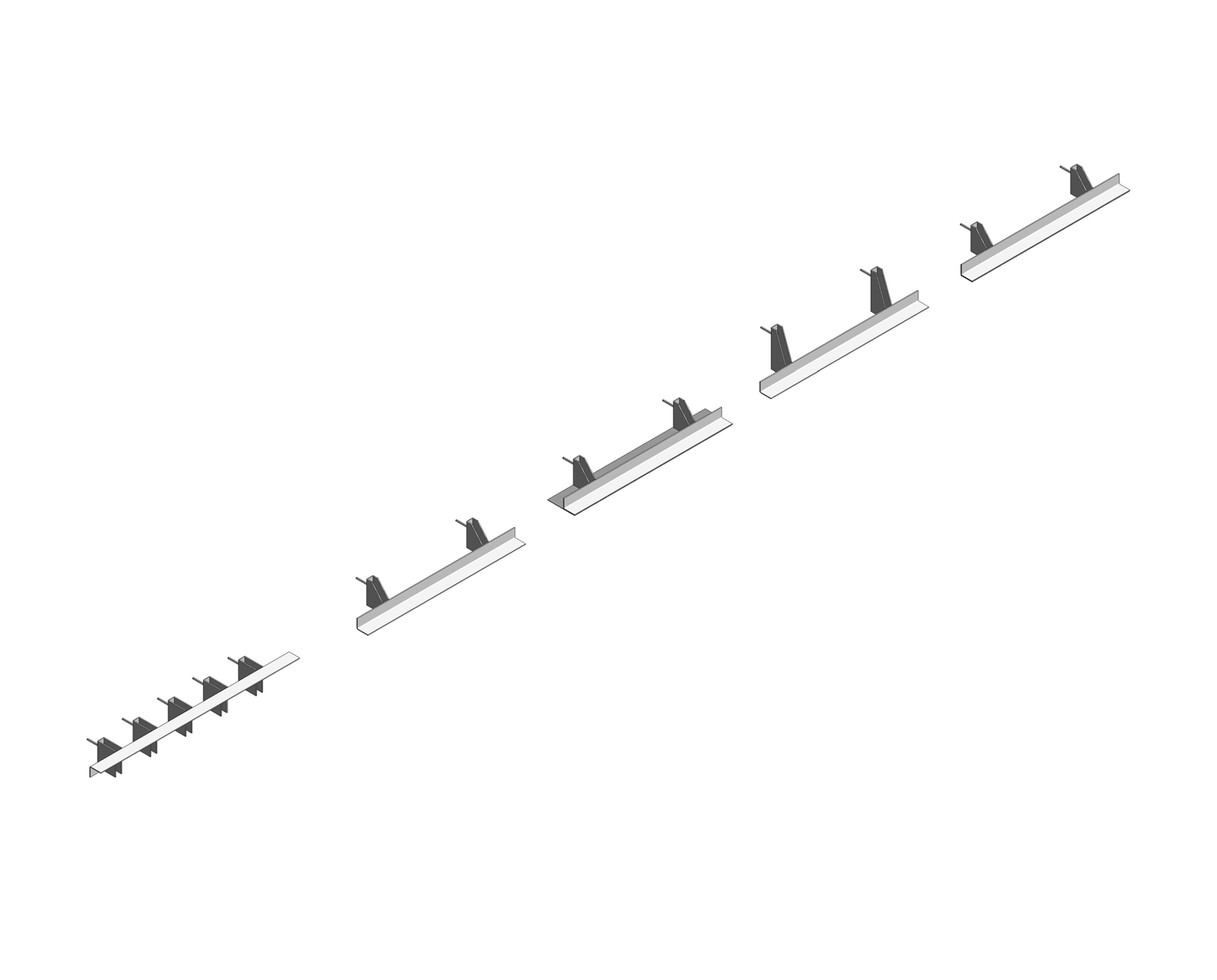

Welded Masonry Support

Description

Designed to accommodate loads up to and exceeding 14kN/m, the IG Masonry Support WMS is fabricated to engineers specifications on a project basis and offers two planes of adjustability onsite. IG’s welded masonry support (WMS) is a rigid masonry support system comprised of a stainless steel angle support shelf with fixed brackets.

Object Data

1 Revision

Last Updated

13/07/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorCL
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessory OptionsCavity closer plate, cavity adjustment shims
Accomodated Cavity WidthFrom 50mm to 150mm. For larger cavities please contact IG Masonry Support
Angle Fixing To BracketWelded
Angle Section Thickness4 mm
Assembly CodeB
Asset TypeFixed
BIM Object NameIGMasonrySupport_BracketedAngleSupports_WMS_Inverted
Bracket Fixing To StructureExpansion bolts / Cast-in channels / SS set screws
Bracket Height170 mm
Bracket Number2
Bracket PositionMaximum 750mm spacing
Bracket Thickness4mm
Classification NameUniclass2015
Classification ValuePr_20_85_09_09
Code Performancen/a
ColorStainless Steel
Constituentsn/a
Created Bysupport@igmss.co.uk
Created On2018-12-01T09:00:00
DescriptionA high performance masonry support system with fixed brackets suitable for extreme loads. Fabricated to engineers specifications on a project specific basis
Documentation Certificateswww.bimstore.co/products/welded-masonry-support/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/welded-masonry-support/document/installation-guide
Documentation Literaturewww.bimstore.co/products/welded-masonry-support/document/product-literature
Documentation Maintenancewww.bimstore.co/products/welded-masonry-support/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/welded-masonry-support/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesLoads up to 22 kN/m - Cavity Width 50mm to 250mm Please contact IG Masonry Support for details.
FinishStainless Steel
Fire Ratingn/a
First Bracket Offset218 mm
Fixing Length100 mm
Fixing Position0 mm
GradeGrade 304
Ifc Export AsIfcBeam
Ifc Export TypeIfcBeamTypeEnum.LINTEL
KeynoteL
Loading LimitPlease contact IG Masonry Support for details.
ManufacturerIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
Manufacturer NameIG Masonry Support, Ryder Close, Cadley Hill Ind Estate, Swadlincote, South Derbyshire, DE119EU
MaterialStainless Steel
ModelIWMS Inverted Welded Masonry Support
Model NumberIWMS - Inverted
Model ReferenceIWMS Inverted Welded Masonry Support
NBS DescriptionBracketed angle supports
NBS Object NameIG Masonry Support - Bracketed angle supports
NBS Reference45-25-95/400
Nominal Depth0 mm
Nominal Height0 mm
Production Year2018
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Sizen/a
Spare Partsn/a
Thermal BreakNo
Type CommentsIG Welded Masonry Support (WMS Inverted)
Type NameIWMS Inverted Welded Masonry Support
URLigmasonrysupport.com
Warranty Description10 Years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssupport@igmss.co.uk
