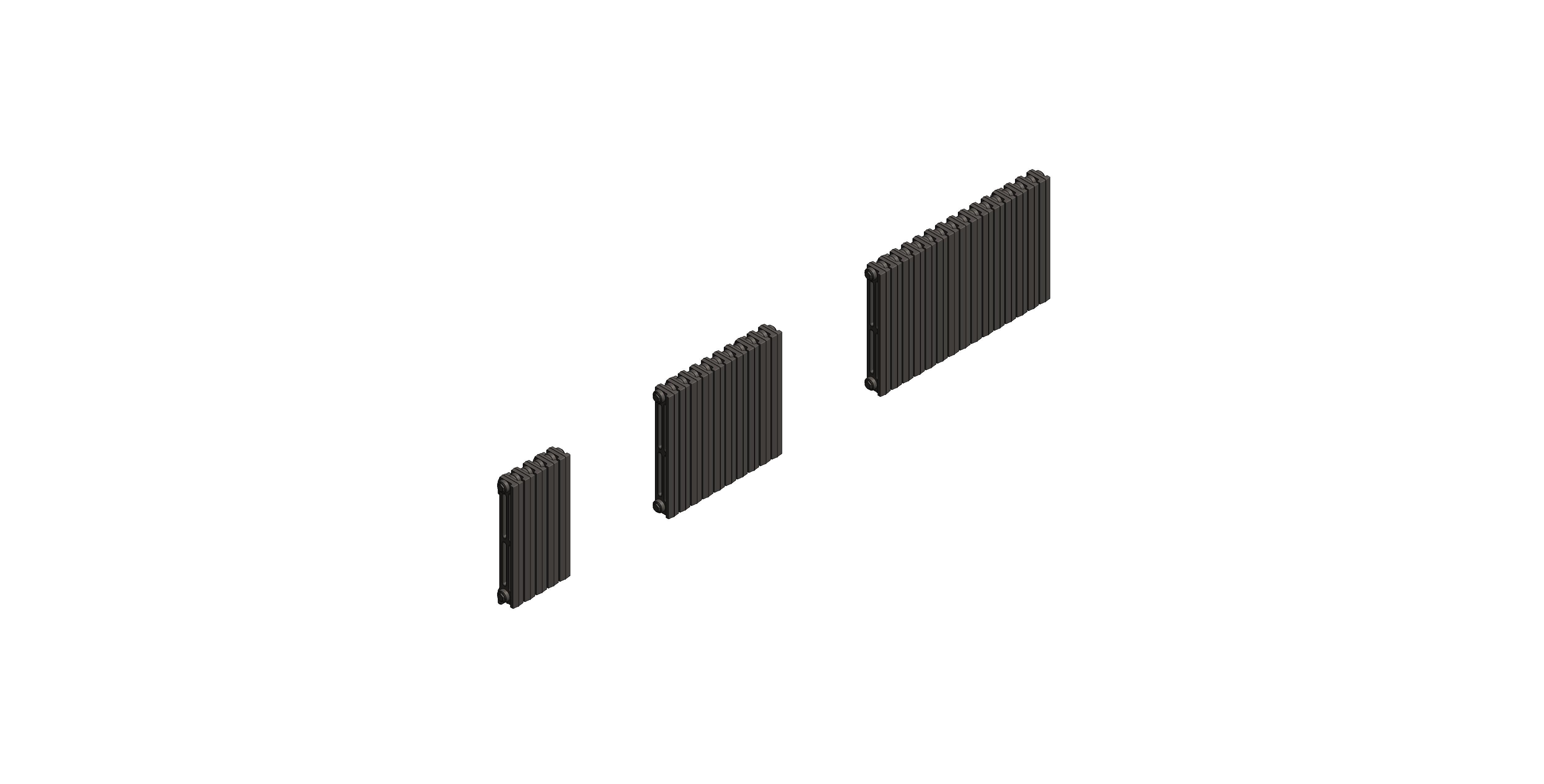

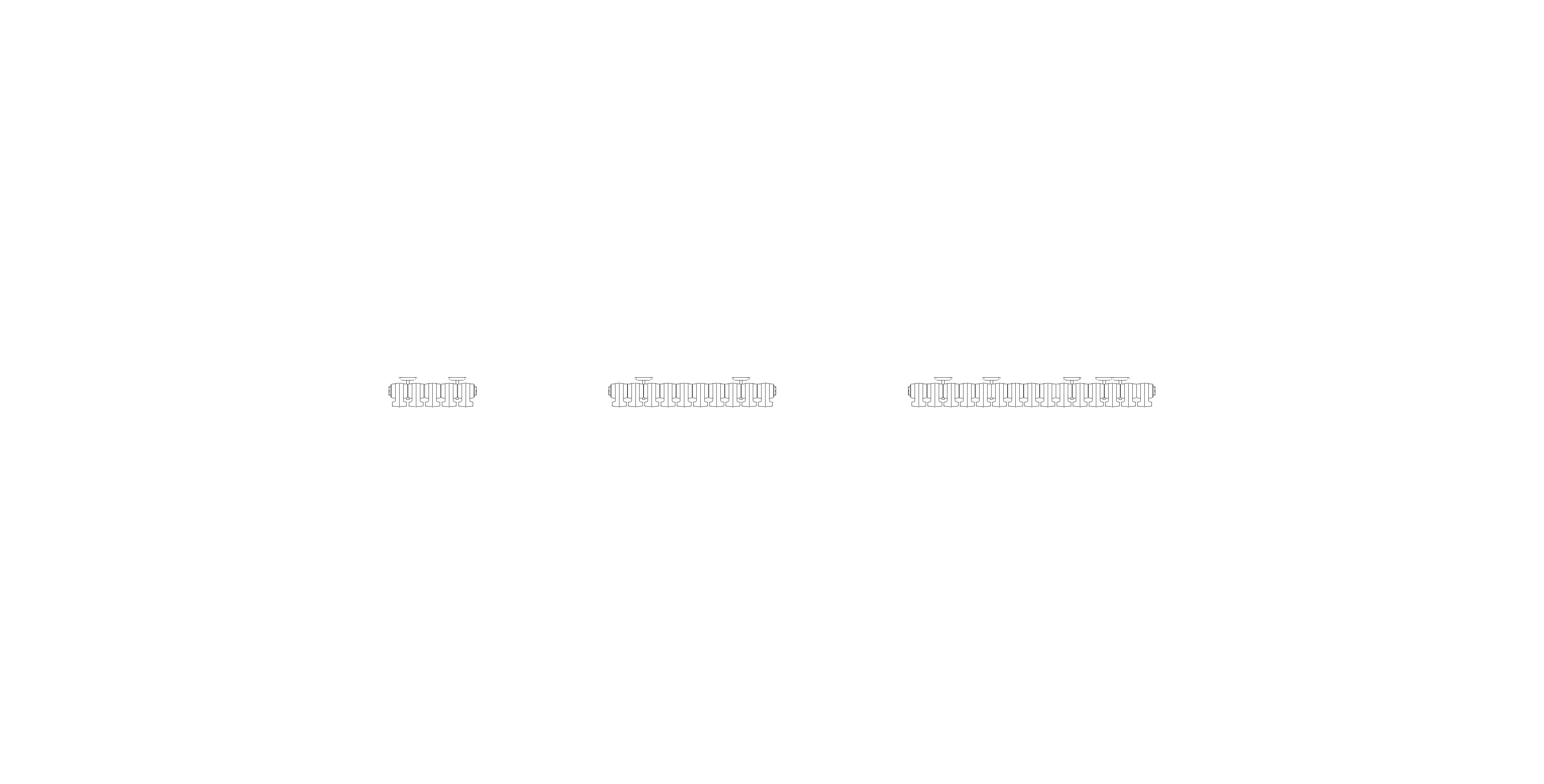

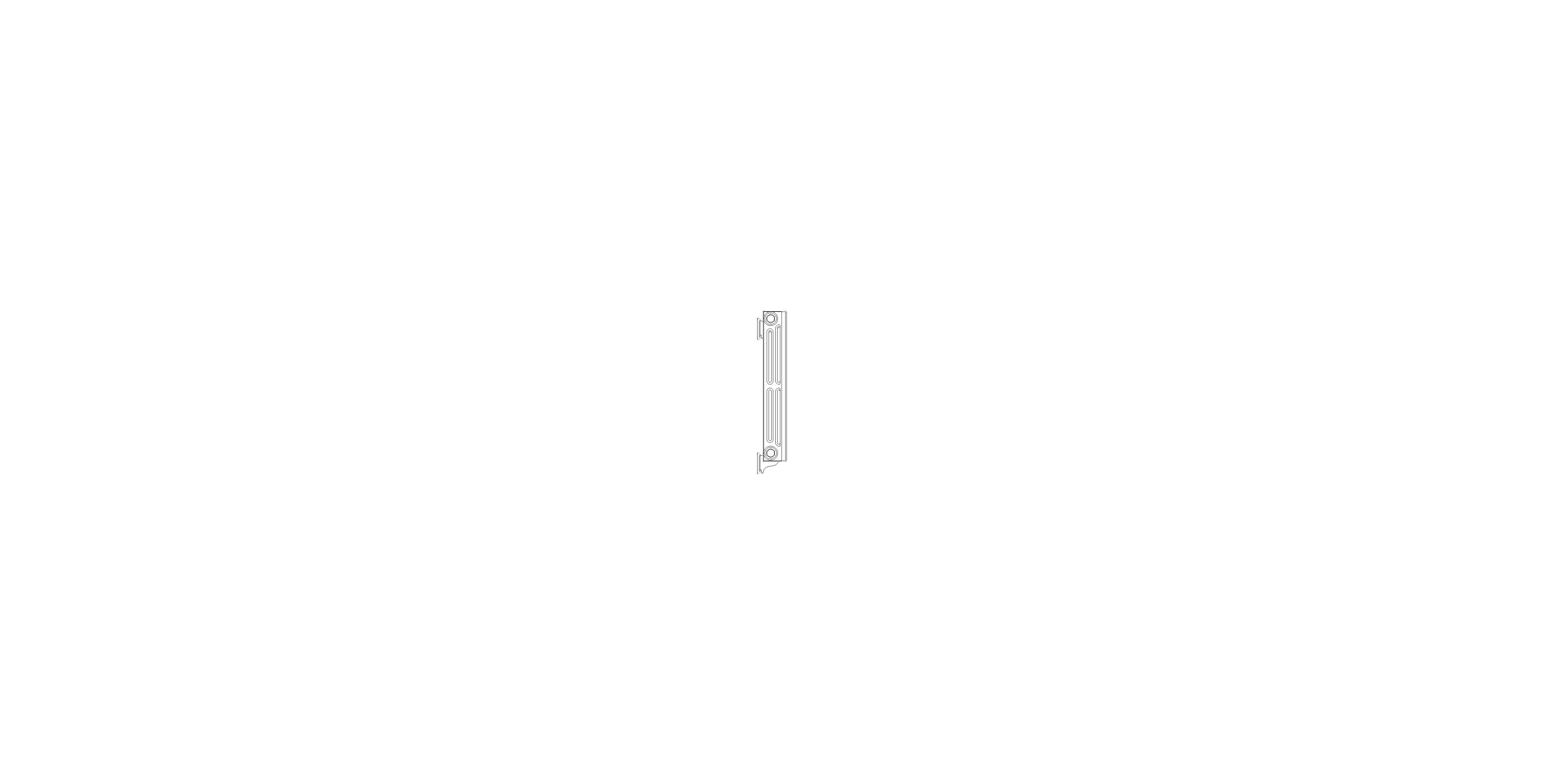

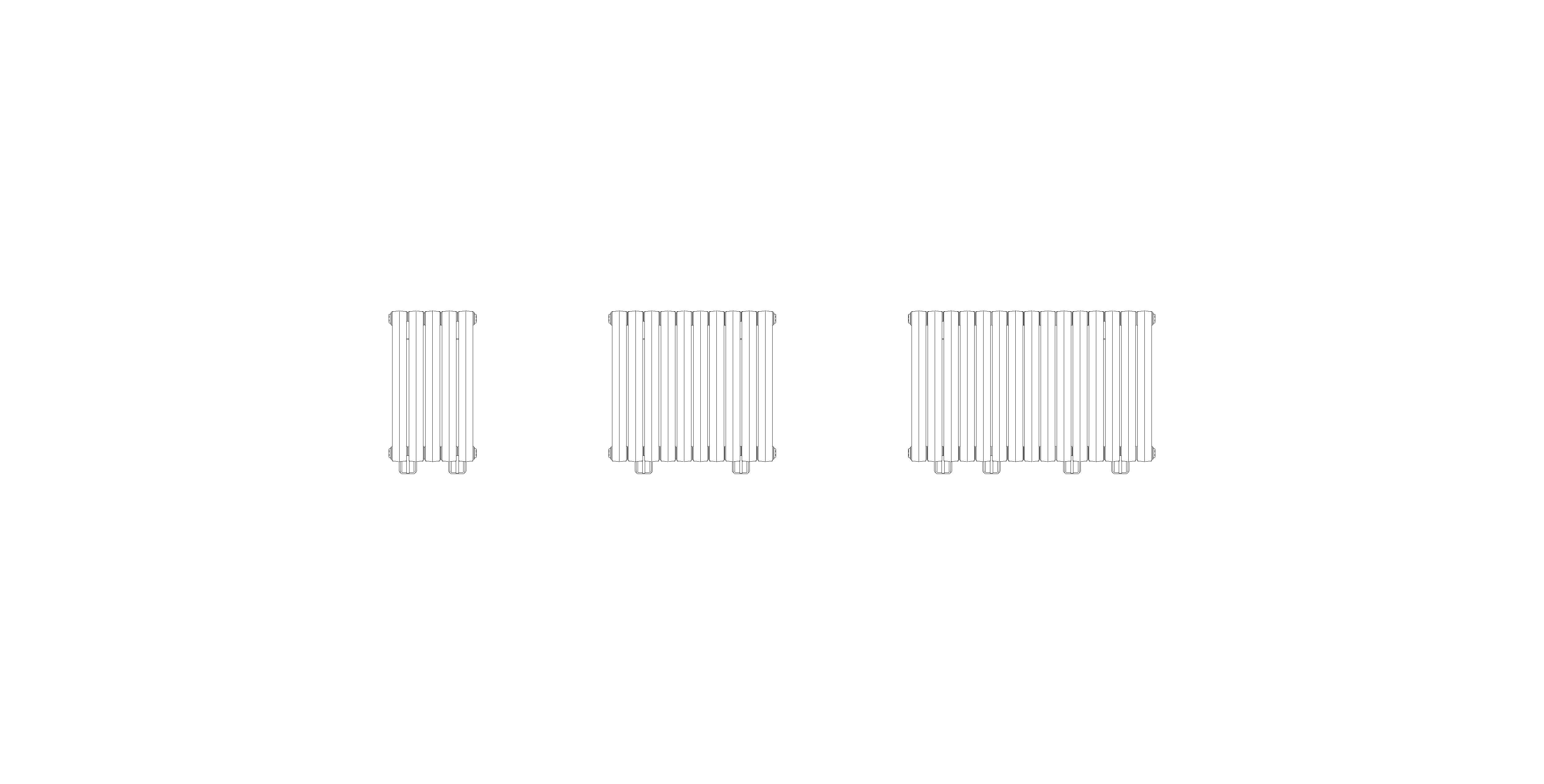

Vulcan III 570mm Cast Iron Radiators

Description

Simple Bauhaus geometry with understated styling for a strong modernist statement. Vulcan III, available in 3 heights, 90-99mm deep, wall-hung model.

A pared back wall-hung radiator.
Heat output per section: 73 Watts.
Delivered fully assembled up to 18 sections.

Object Data

1 Revision

Last Updated

22/11/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vulcan-iii-570mm/document/object-user-guide
1st Bottom Bracket Position63 mm
1st Bottom Bracket Position Calc1
1st Top Bracket Position63 mm
1st Top Bracket Position Calc1
2nd Bottom Bracket Position188 mm
2nd Bottom Bracket Position Calc3
2nd Top Bracket Position188 mm
2nd Top Bracket Position Calc3
3rd Bottom Bracket Position63 mm
3rd Bottom Bracket Position Calc1
3rd Bottom Bracket VisNo
3rd Top Bracket Position63 mm
3rd Top Bracket Position Calc1
3rd Top Bracket VisNo
4th Bottom Bracket Position63 mm
4th Bottom Bracket Position Calc1
4th Bottom Bracket VisNo
Accessibility Performancen/a
Assembly CodeG3040
Asset TypeFixed
BIM Object NameCastrads_CastIronRadiator_VulcanIII570
Classification NameUniclass 2015
Classification ValuePr_70_60_36_73
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@castrads.com
Created On2022-04-25T:09:00:00
DescriptionSimple Bauhaus geometry with understated styling for a strong modernist statement. Vulcan III, available in 3 heights, 90-99mm deep, wall-hung model.
Documentation Certificateswww.bimstore.co/products/vulcan-iii-570mm/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vulcan-iii-570mm/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vulcan-iii-570mm/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vulcan-iii-570mm/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vulcan-iii-570mm/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Heat Output Per Section BTU250
Heat Output Per Section W73
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
KeynoteT
ManufacturerCastrads
Manufacturer NameCastrads
MaterialCast Iron
ModelVulcan III 570mm
Model NumberVulcan III 570mm
Model ReferenceVulcan III 570mm
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameCastrads - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth90 mm
Nominal Height570 mm
Nominal Length271 mm
Number Of Sections4
Production Year2022
Radiator Depth90 mm
Radiator FinishCastrads_MidGreySparkle
Radiator Height570 mm
Radiator Length271 mm
Referenced Standardn/a
Replacement Costn/a
Section End Offset10 mm
Section Internal Volume0.75 m³
Section Mass4.8
Section Spacing60 mm
Shapen/a
Sizen/a
Spare Partsinfo@castrads.com
Type CommentsVulcan III 570mm
Type NameVulcan III 570mm
URLwww.castrads.com/
Warranty Description10 Year Guarantee
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@castrads.com
Warranty Guarantor Partsinfo@castrads.com
