Interlocking Panel

  • Views 358
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

04/09/2019

Available for:
  • Logo: Autodesk Revit

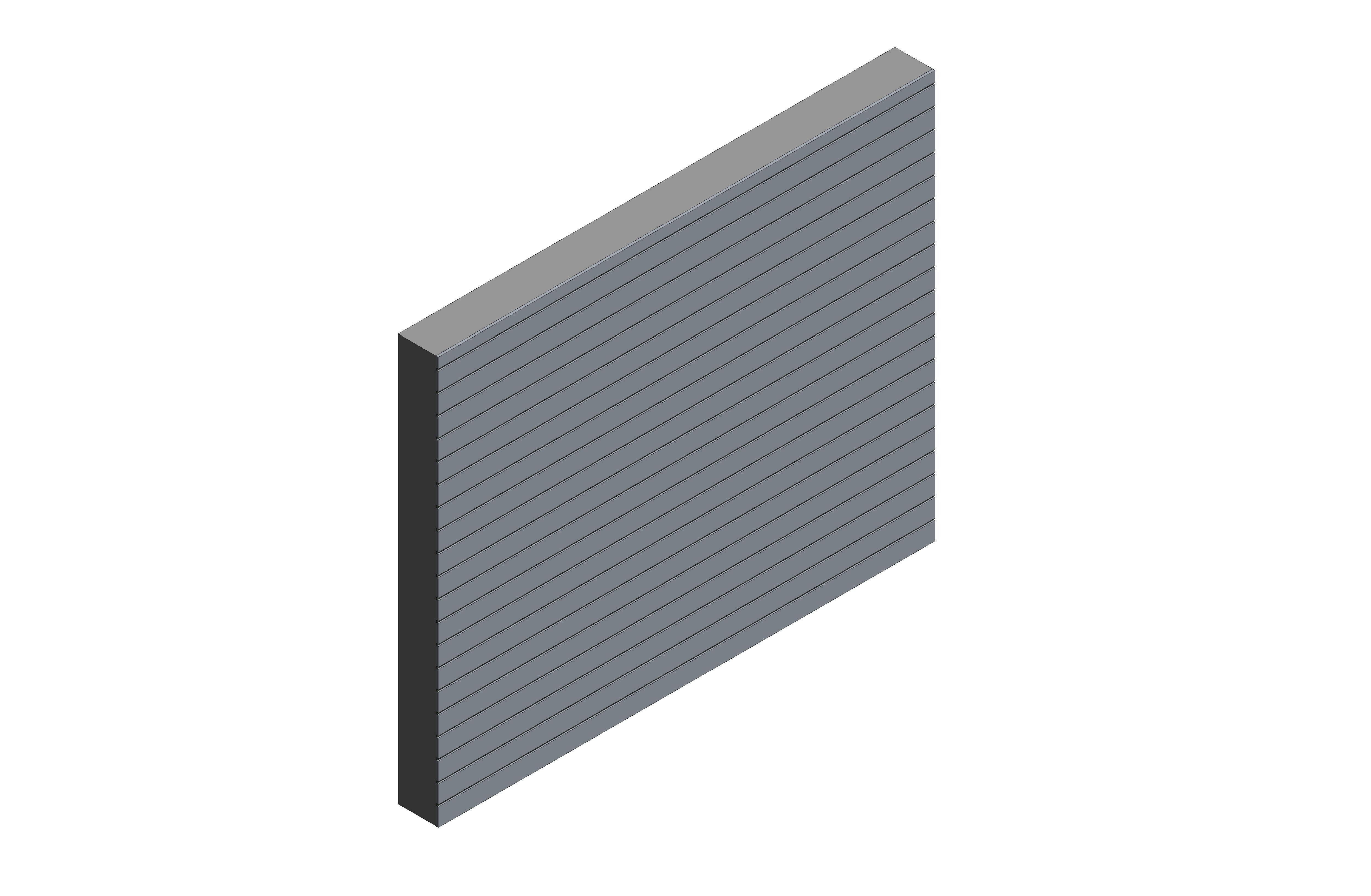

The Interlocking panel façade system is suitable for use on new build or renovation projects. The system can be installed horizontally or vertically on a metal or a wooden framework that is fixed to the supporting structure (masonry or metal structure). The panels have an elegant appearance with a reveal joint. The system belongs to the rain screen family (wall cladding installed with a ventilated air space and provisions made for drainage from within the exterior envelope).  The Interlocking panels are made based on the measurements of your project, so this is a bespoke solution, and measurements should be precise.

Read more

Accompanying literature

Accompanying literature coming soon.
