Vita Plan Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

Our Vita Plan radiator features a stunning, simplistic finish, featuring a flat exterior for the ultimate in minimal design.

Available in a wide range of heights and widths, the Vita Plan can be tailored to work for any space.

Avaiable in K1 and K2 variations with lengths from 400mm - 2000mm and 300mm, 450mm, 600mm heights

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

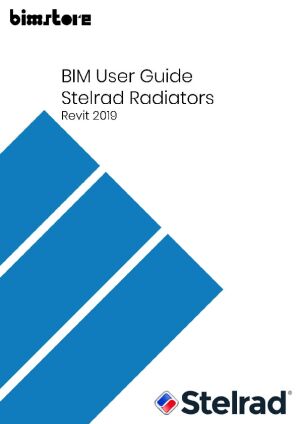

Object User Guide

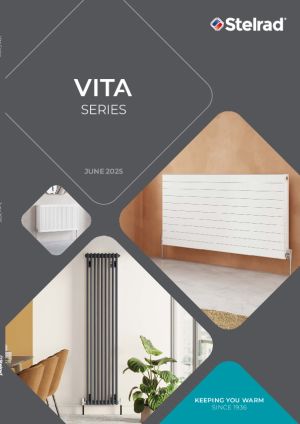

Product Literature

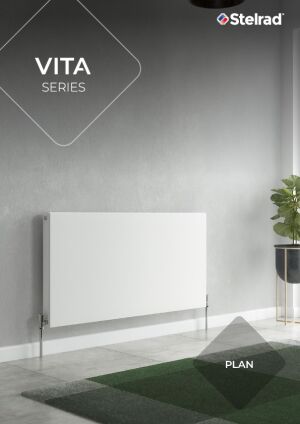

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
Access Clearance Bottom0.000000000000 mm
Access Clearance Front0.000000000000 mm
Access Clearance Left0.000000000000 mm
Access Clearance Rear0.000000000000 mm
Access Clearance Right0.000000000000 mm
Access Clearance Top0.000000000000 mm
Air VentYes
Assembly CodeD3020
Asset TypeFixed
BIM Object NameMechanical_Equipment-Radiators-Stelrad-Vita_Plan_K2
Bracket A133.000000000000 mm
Bracket B60.000000000000 mm
Bracket C500.000000000000 mm
Casing MaterialMild Steel
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
ColorWhite (RAL 9016)
ColourWhite (RAL 9016)
Connector Dia15.000000000000 mm
Connector Dia Calc7.500000000000 mm
Created Byinfo@stelrad.com
Created OnFeb16
Depth100.000000000000 mm
DescriptionOur Vita Plan radiator features a stunning, simplistic finish, featuring a flat exterior for the ultimate in minimal design. Available in a wide range of heights and widths, the Vita Plan can be tailored to work for any space.
Documentation Certificateswww.stelrad.com
Documentation Installation Guidewww.stelrad.com
Documentation Literaturespecifi.bimstore.co.uk/document/share/1535
Documentation Maintenancewww.stelrad.com
Documentation Technicalspecifi.bimstore.co.uk/document/share/1535
Drain TapNo
Duration UnitYears
Expected Life0
FinishPainted
FinnedYes
Floor StandsNo
GradeK2
Grille Length Calc1003.000000000000 mm
Gross Weight20.06
Heat Emitter MaterialMild Steel
Heat Output Btu/hr3171
Heat Output Watts929
Heat reflectorNo
Height300.000000000000 mm
Height From Floor0.000000000000 mm
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT30/350
Length1000.000000000000 mm
Location of ManufacturerRotherham, S64 8BN, United Kingdom
ManufacturerStelrad Ltd
MaterialMild Steel
Maximum Operating Pressure8
Maximum Test Pressure10.5
Middle BracketNo
ModelStelrad Vita Plan
Model NumberStelrad Vita Plan
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Object NameRadiators
NBS Office Master Tagn/a
NBS Reference90-40-35-35/405
Number of PanelsN/A
Number of SectionsN/A
Outlet GrilleNo
Overall Height300.000000000000 mm
Overall Length1000.000000000000 mm
Pipe Connections Size15mm
Possible Connections PositionsLL/ML/HL
Product Literature2jomhg1cupfs2jxnrb3gelkt.wpengine.netdna-cdn.com/wp-content/uploads/2014/09/Individual-product-technical-brochures-Plan.pdf
Product Model Number81302210
Product RangeStelrad Vita Plan
Production Year2016
Radiator MaterialStelrad - RAL 9016
Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
Seam TypeN/A
ShapeRectangle (Horizontal)
Shipping WeightN/A
Size300 x 1000mm
TypeFinned Panel
Type CommentsK2 - 300x1000mm
Type NameK2 - 300x1000mm
UIN81302210
URLwww.stelrad.com/uk/
Wall BracketsYes
Wall to tap centre mm73.000000000000 mm
Warranty Descriptioninfo@stelrad.com
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
