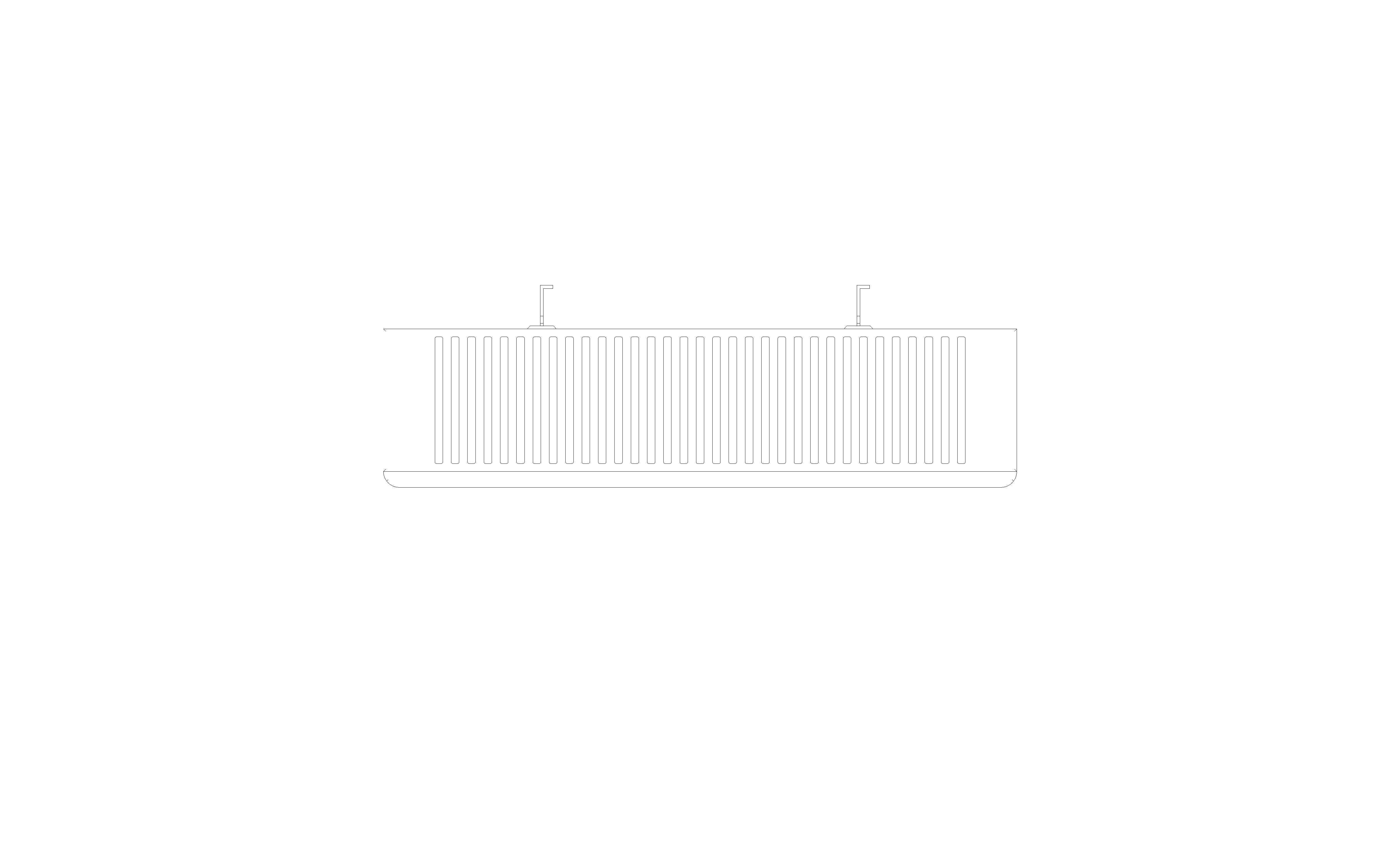

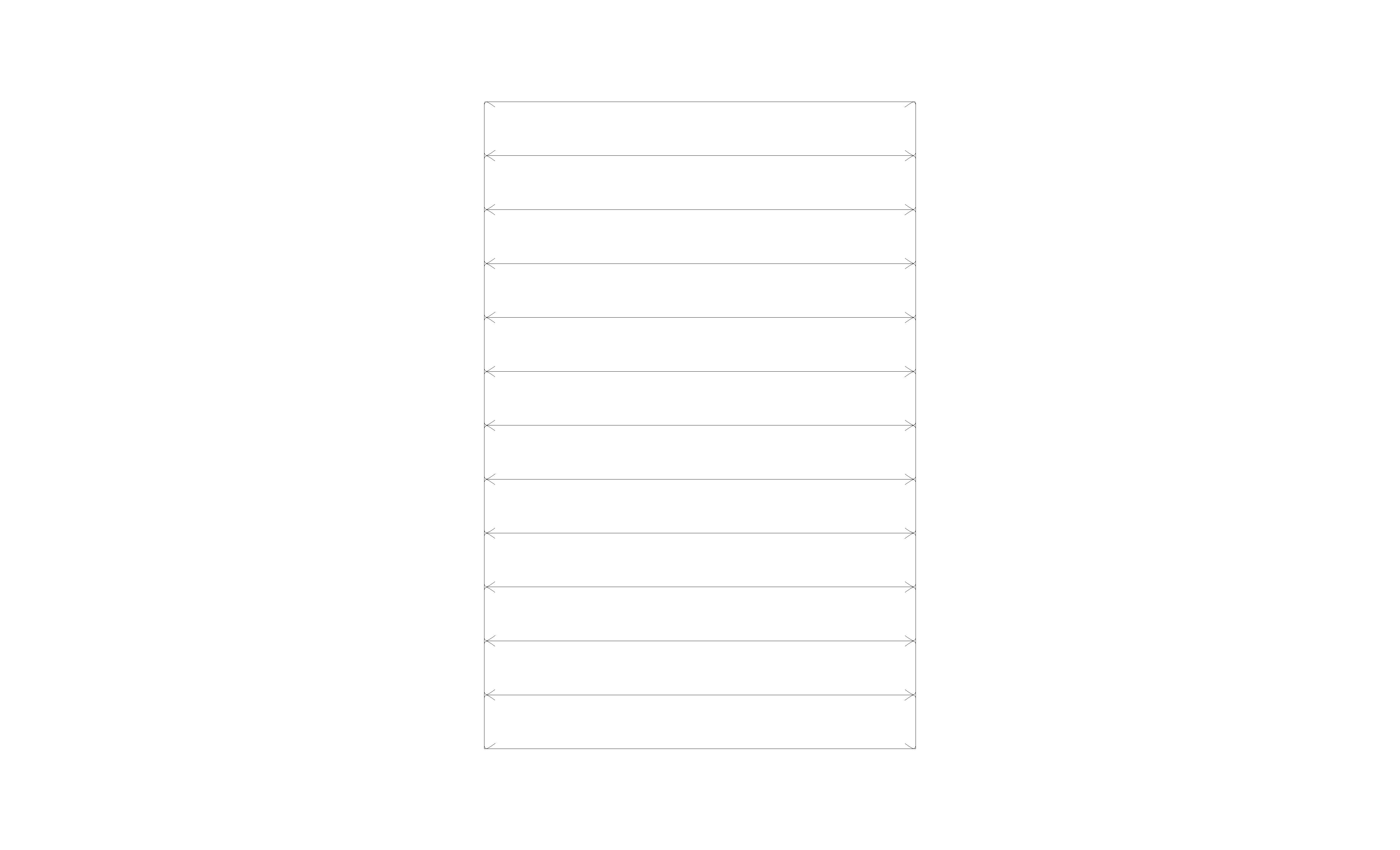

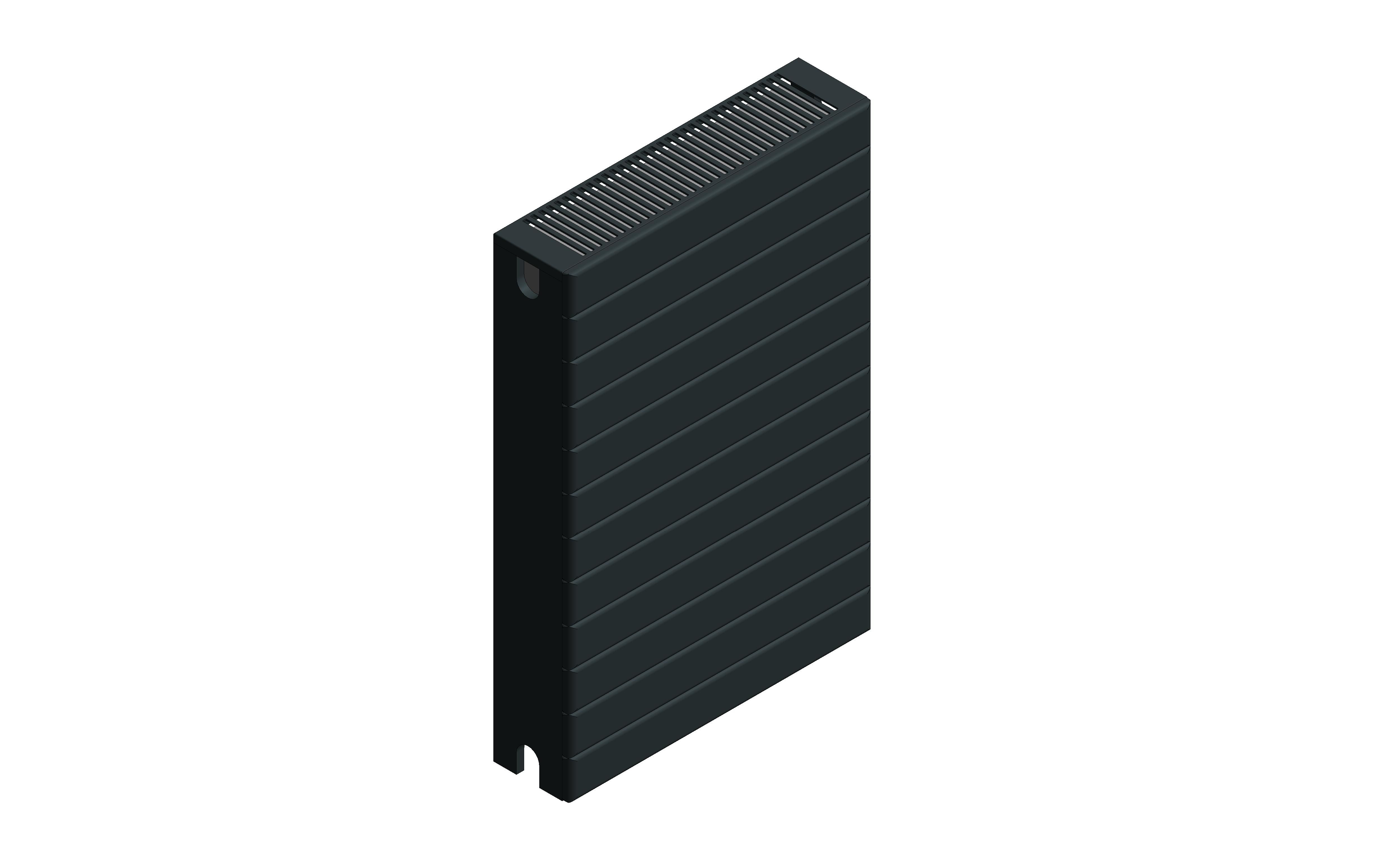

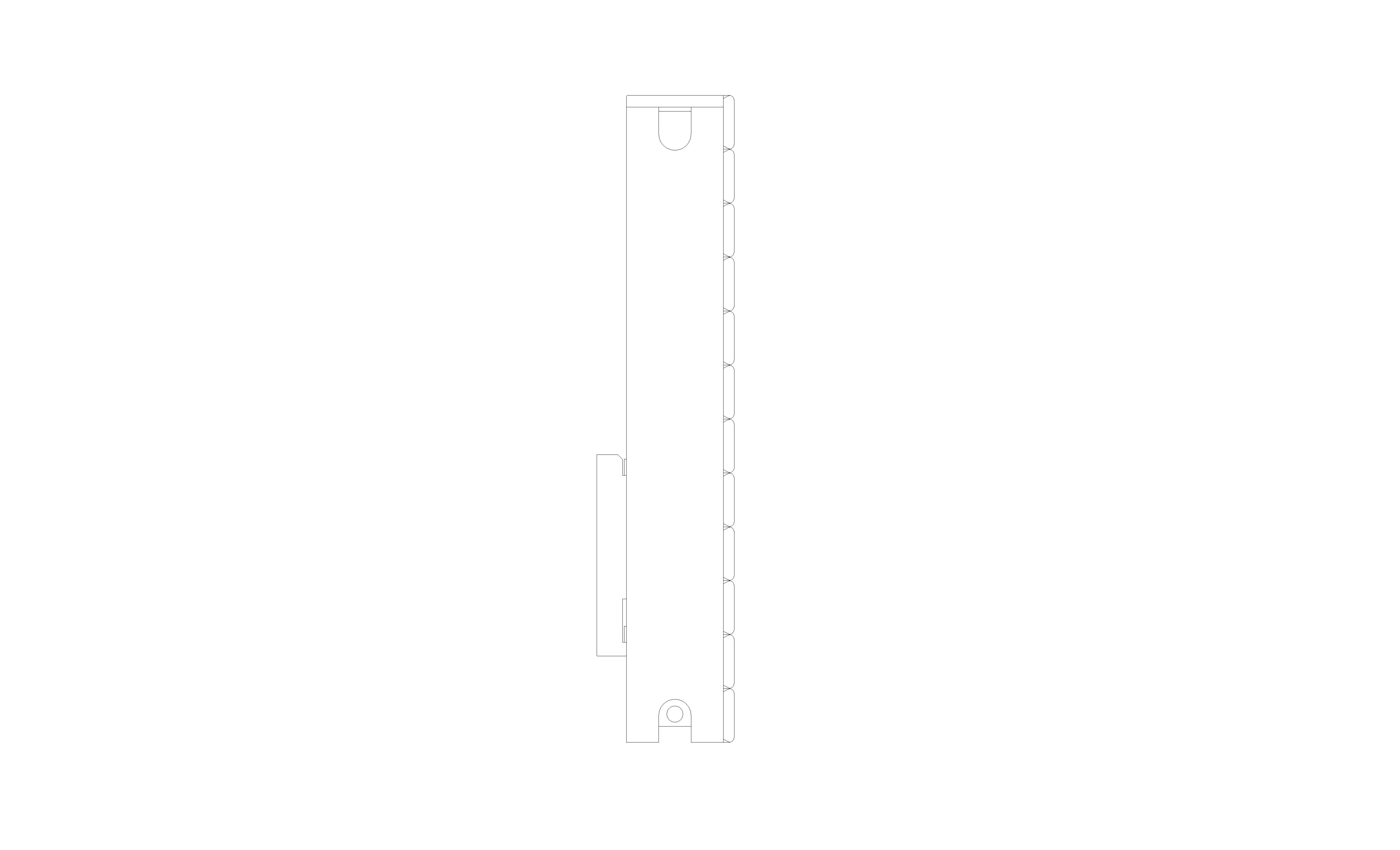

Vita Deco Concept Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The Stelrad Vita Deco Concept is an attractive Anthracite Grey radiator with a horizontal lined fascia, that will match or contrast with the décor and available from stock. Designer looks with a dash of extra style adds cool contemporary colour to sleek and elegant lines to make a smart fashion statement that’ll complement any choice of décor.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

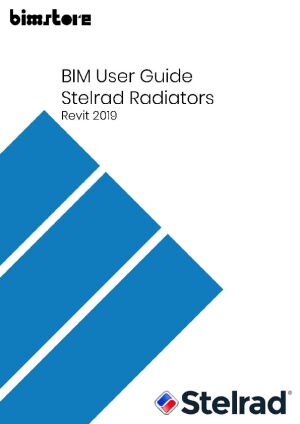

Object User Guide

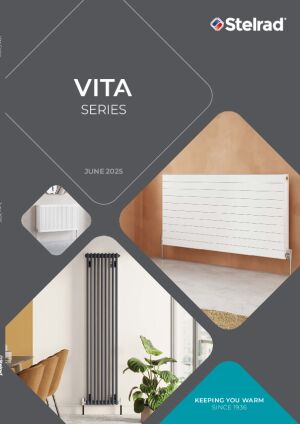

Product Literature

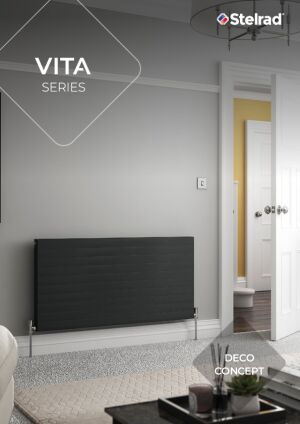

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentNo
Assembly CodeD3020
Asset TypeFixed
BIM Object NameStelrad_MechanicalEquipment_Radiators_VitaDecoConcept_K2
Bracket A133 mm
Bracket B60 mm
Bracket C500 mm
Btu/hr7648.533
Case Height600 mm
Case Width1000 mm
Casing Thickness1 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite RAL 9010
ColourWhite RAL 9010
Connection Diameter15 mm
Connection Radius8 mm
Conn LHS26 mm
Conn RHS26 mm
Constituentsn/a
Created Byinfo@stelrad.com
Created On2017-02-01T00:00:00
DescriptionLow Surface Temperature Vita Deco Concept - K2 Element
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Drain TapNo
Duration Unityear
Element Offset25 mm
Element Offset Btm15 mm
Expected Life0
FeaturesPanelled Radiator
FinnedNo
Floor StandsNo
Graden/a
Gross Weight53.76 kg
Heat ReflectorNo
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Maintenance Required 0-300hrsPlease record on commissioning
Maintenance Required 1001-2000hrsPlease record on commissioning
Maintenance Required 2001-4000hrsPlease record on commissioning
Maintenance Required 301-600hrsPlease record on commissioning
Maintenance Required 4001-8000hrsPlease record on commissioning
Maintenance Required 601-1000hrsPlease record on commissioning
Maintenance Required 8001-12000hrsPlease record on commissioning
ManufacturerStelrad
Manufacturer NameStelrad
MaterialSteel
Maximum Operating Pressure800.0 kPa
Maximum Operating Temperature95 °C
Maximum Test Pressure1050.0 kPa
Middle BracketNo
ModelVita Deco Concept K2
Model Number22602214
Model ReferenceVita Deco Concept K2
NBS DescriptionRadiators
NBS Object NameStelrad - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth100 mm
Nominal Height600 mm
Nominal Length1000 mm
Number Of Panels0
Number Of Sections0
Offset From Floor0 mm
Offset From Wall28 mm
Outlet GrilleNo
Output_DT50_EN44293 W
Overall Height600 mm
Overall Length1000 mm
Overall Width100 mm
Panel Height50 mm
Panel No12
Pipe Connection Size15 mm
Production Year2019
Product Literaturen/a
Product RangeVita Deco Concept K2
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Shipping Weight53.76 kg
Size600mm (h) x 1000mm (l) x 100mm (d)
Spare Partsn/a
Temperature ClassificationEN 442
Thermal Output2241 W
Thk10 mm
TypeK2
Type CommentsLow Surface Temperature Vita Deco Concept - K2 Element
Type NameLow Surface Temperature Vita Deco Concept - K2 Element
UIN22602214
URLwww.stelrad.com
Wall BracketsNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration Unityear
Warranty Guarantor Laborinfo@stelrad.com
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content9.2 L
Watts2241
Working Pressure10 bar

Sustainability & Environmental Data

Approved Sustainability Data from an EPD

This data is supplied by the manufacturer and certified by an approved third party.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0.0148 kg
Total CO2e (Fossil) 2.21 kg
Manufacturing (A1-A3) 2.2 kg
Transport to Site (A4) 0.16 kg
On-Site Installation (A5) 0.0306 kg
Use & Maintenance (B1-B5) kg
End of Life (C1,C3,C4) 0.0281 kg
Recycled Content 17.5 %
Recyclable Content 90 %
Re-use Potential 0 %
Energy Recovery Possibility %
Water Use 18.4 L
Ozone Depletion Potential 0.0282 mg CFC-11eq
Expiry10th Aug 2025 - 9th Aug 2030

Environmental Product Declarations

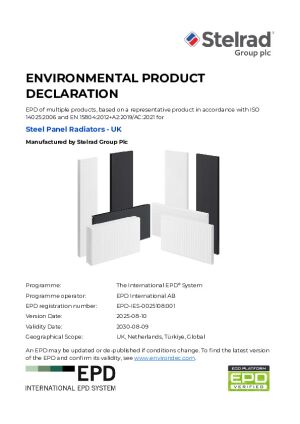

Environmental Product Declaration (EPD)

Valid until 9th Aug 2030
