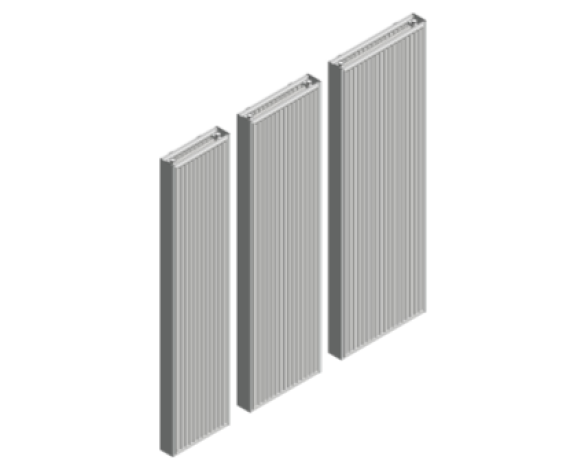

Vita Compact Vertical Radiator

Object metadata

• _authorized byKris Atkinson
• _BIMspec_GUID0
• _created byKris Atkinson
• _current revision1
• _distributed bywww.bimstore.co.uk
• A133 mm
• Access Clearance Bottom0 mm
• Access Clearance Front0 mm
• Access Clearance Left0 mm
• Access Clearance Rear0 mm
• Access Clearance Right0 mm
• Access Clearance Top0 mm
• Air VentYes
• Assembly CodeD3020
• Asset TypeFixed
• B60 mm
• Box Depth124 mm
• Bracket Mount Height1775 mm
• Bracket Offset100 mm
• C17 mm
• Casing MaterialMild Steel
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_73
• ColorWhite (RAL 9016)
• ColourWhite (RAL 9016)
• Connector Dia15 mm
• Connector Dia Calc8 mm
• Created Byinfo@stelrad.com
• Created OnFeb16
• D555 mm
• Depth125 mm
• DescriptionThe Vita Compact Vertical is a stylish, attractive radiator for applications where space is at a premium.
• Documentation Literaturewww.stelrad.com
• Documentation Maintenancewww.stelrad.com
• Documentation Technicalwww.stelrad.com
• Drain TapNo
• Duration UnitYears
• Expected Life0
• FinishPainted
• FinnedYes
• Floor StandsNo
• GradeK2
• Gross Weight35.52
• Heat Emitter MaterialMild Steel
• Heat Output Btu/hr5405
• Heat Output Watts1584
• Heat reflectorNo
• Heat Transfer MediumConvection
• Height1800 mm
• Height From Floor150 mm
• Inlet GrilleNo
• Integral Lockshield ValveNo
• Integral Regulating ValveNo
• Integral TRVNo
• KeynoteT30/350
• Length400 mm
• Location of ManufacturerRotherham, S64 8BN, United Kingdom
• ManufacturerStelrad Ltd
• MaterialMild Steel
• Maximum Operating Pressure8
• Maximum Test Pressure10.5
• ModelStelrad Vita Compact Vertical
• Model NumberStelrad Vita Compact Vertical
• Mounting TypeWall Mounted
• NBS Object NameRadiators
• NBS Reference90-40-35-35/405
• Number of PanelsN/A
• Number of SectionsN/A
• Offset from wall to CL76 mm
• Outlet GrilleNo
• Overall Height1800 mm
• Overall Length400 mm
• Pipe Connections Size15mm
• Possible Connections PositionsBottom or Top
• Product Literaturewww.stelrad.com
• Product Model Number89121418
• Product RangeStelrad Vita Compact Vertical
• Production Year2016
• Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
• Seam TypeN/A
• ShapeRectangular (Vertical)
• Shipping WeightN/A
• Size1800 x 400mm
• TypeFinned Panel
• Type CommentsK2 - 1800x400mm
• Type NameK2 - 1800x400mm
• UIN89121418
• URLwww.stelrad.com/uk/
• Wall BracketsYes
• Warranty Descriptioninfo@stelrad.com
• Warranty Duration Parts10
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@stelrad.com
• Warranty Guarantor Partsinfo@stelrad.com
• Water Flow RateRelating to standard test conditions as per BS EN 442
