bimstore - Vanderbilt - SPCE651.100 Intrusion Expander

635
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

The SPCE651.100 expander extends the SPC system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spce651-100/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_IntrusionExpander_SPCE651100
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialPlastic, Opaque White
CategoryIntrusion Expander
Classification NameUniclass2015
Classification ValuePr_75_80_42
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionThe SPCE651.100 expander extends the SPC system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spce651-100/document/product-certificates

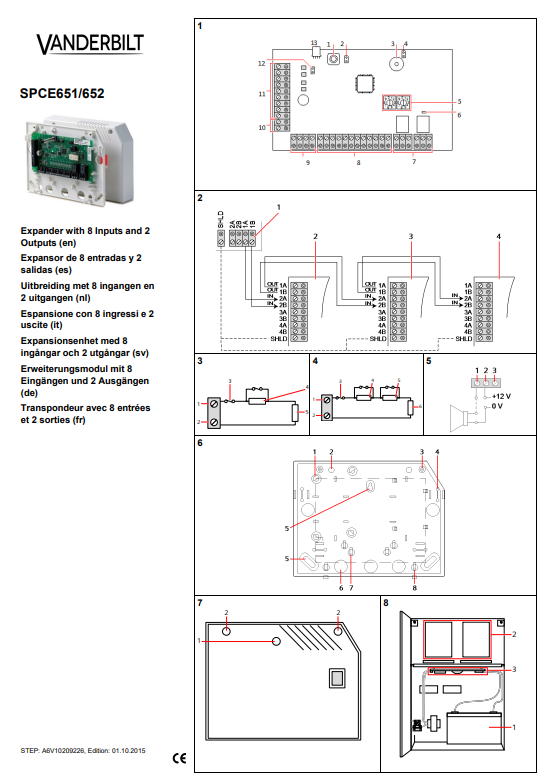

Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spce651-100/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanderbilt-spce651-100/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spce651-100/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spce651-100/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470823
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
Features- Easy configuration - Cause and effect intergration - Configurable Inputs type (22+ types) - Configurable Input EOL (24+ types) - Individual name per input - Individual log per input - Configurable Outputs - Individual test function per output - 3 Selectable modes of operation per output (Continious, Pulse, Momentary) - Log option per output - Each output can be restricted by calendars
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsX-BUS Status LED
InterfaceX-BUS (in, out, branch)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialPlastic housing (ABS)
Metadatan/a
Microwaven/a
ModelSPCE651.100
Model NumberV54542-F102-A100
Model ReferenceSPCE651.100
MountingWall
NBS DescriptionIntruder detection and alarm devices and control equipment
NBS Noten/a
NBS Object NameVanderbilt - Intruder detection and alarm devices and control equipment
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth41 mm
Nominal Height150 mm
Nominal Length198 mm
Number Of On Board Relays2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Number Of On Board Zones8
Operating CurrentMax. 80 mA at 12 VDC (all relays activated)
Operating Temperature-10 ~ +50 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), EAR (Ru)
RegionsWorldwide
Relay OutputsYes
Replacement Costn/a
Sensitivity Evaluation Moden/a
Sensor MaterialPlastic, Opaque Red
ShapeRectangle
Size198mm(W) x 150mm(H) x 41mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage9.5 ~ 14 VDC
Tamper ProtectionYes
TitleSPCE651.100 Expander,8 In/2 Out, Analy.
Type CommentsV54542-F102-A100
Type NameV54542-F102-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.350 kg
