SPCE452.100 Expander.8 relays,backtamp

Object metadata

• _AuthorBS
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/vanderbilt-spce452-100/document/object-user-guide
• Accessibility Performancen/a
• Accessoriesn/a
• Additionaln/a
• Air Humidityn/a
• Anti Maskn/a
• Assembly CodeD5030800
• Asset TypeFixed
• Audion/a
• BIM Object NameVanderbilt_IntrusionExpander_SPCE452100
• Card Capacityn/a
• Card Compatibilityn/a
• Card Read Distancen/a
• Card Technologyn/a
• Case MaterialPlastic, Opaque White
• CategoryIntrusion Expander
• Classification NameUniclass2015
• Classification ValuePr_75_80_42
• Code Performancen/a
• Collision Spacen/a
• ColorRAL 9003 (signal white)
• Constituentsn/a
• Created Bysupport.uk@vanderbiltindustries.com
• Created On2022-07-28T09:00:00
• Default Elevation0 mm
• DescriptionThe SPCE452.100 expander extends the SPC system via X-BUS with 8 fully programmable relay outputs. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
• Detection Characteristics Rangen/a
• DisplayNo
• Documentation Certificateswww.bimstore.co/products/vanderbilt-spce452-100/document/product-certificates

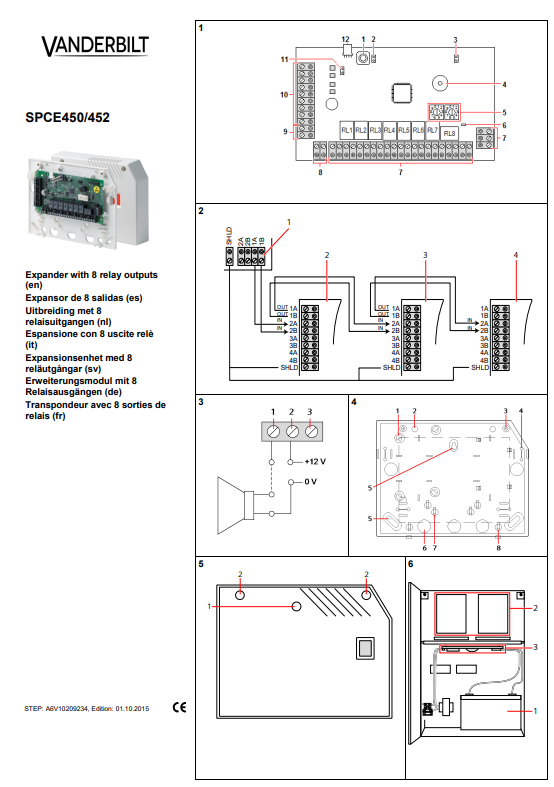

• Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spce452-100/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/vanderbilt-spce452-100/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/vanderbilt-spce452-100/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/vanderbilt-spce452-100/document/technical-data-sheet
• Door Capacityn/a
• Duration UnitYears
• Ean Upc Code4025515470861
• Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
• EnvironmentIndoor
• EOL Resistorn/a
• Expected Life0
• Features- Easy configuration - Cause and effect intergration - Configurable Inputs type (22+ types) - Configurable Input EOL (24+ types) - Individual name per input - Individual log per input - Configurable Outputs - Individual test function per output - 3 Selectable modes of operation per output (Continious, Pulse, Momentary) - Log option per output - Each output can be restricted by calendars
• Finishn/a
• Graden/a
• Housing Protectionn/a
• Ifc Export AsIfcAlarm
• Ifc Export TypeIfcAlarmType
• IndicatorsN/A
• InterfaceX-BUS (in, out, branch)
• KeynoteW
• LanguagesEnglish German French Spanish Swedish Italian Dutch
• ManufacturerVanderbilt
• Manufacturer NameVanderbilt
• MaterialPlastic housing (ABS)
• Metadatan/a
• Microwaven/a
• ModelSPCE452.100
• Model NumberV54542-F107-A100
• Model ReferenceSPCE452.100
• MountingWall
• NBS DescriptionIntruder detection and alarm devices and control equipment
• NBS Noten/a
• NBS Object NameVanderbilt - Intruder detection and alarm devices and control equipment
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth41 mm
• Nominal Height150 mm
• Nominal Length198 mm
• Number Of On Board Relays8 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
• Number Of On Board Zonesn/a
• Operating CurrentMax. 190 mA at 12 VDC (all relays activated)
• Operating Temperature-10 ~ +50 °C
• Outputsn/a
• Pet Immunityn/a
• Production Year2022
• Rangen/a
• Referenced StandardCE (EU), EN (EU), VDS B/C (DE), INCERT (BE / NR), RCM (Aus), F&P (DK), (FI), EAR (Ru)
• RegionsWorldwide
• Relay OutputsYes
• Replacement Costn/a
• Sensitivity Evaluation Moden/a
• Sensor MaterialPlastic, Opaque Red
• ShapeRectangle
• Size198mm(W) x 150mm(H) x 41mm(D)
• Spare Partssupport.uk@vanderbiltindustries.com
• Supply Voltage9.5 ~ 14 VDC
• Tamper ProtectionYes
• TitleSPCE452.100 Expander.8 relays,backtamp
• Type CommentsV54542-F107-A100
• Type NameV54542-F107-A100
• URLvanderbiltindustries.com/
• Verificationn/a
• Videon/a
• Walking Speedn/a
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts10
• Warranty Duration UnitYears
• Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
• Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
• Weight0.400 kg
