SPC6350.320-L1 Intrusion CP, G5

445
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

03/10/2022

Download BIM

Add to collection

Available for:

Vanderbilt`s SPC6350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (16 on-board), 512 outputs (12 on-board), 32 system keypads, 64 doors, 32 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface.

The system is expandable with wireless receivers and supports up to 120 wireless detectors (mixed with wired zones).

The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/object-user-guide
Accessibility Performancen/a
AccessoriesSubstantial list of accessories including Keypads, Expanders, Detectors. See full list here. https://shop.vanderbiltindustries.com/international/intrusion/systems/spc/?p=1
Additionaln/a
Air Humidityn/a
Anti Maskn/a
Assembly CodeD5030800
Asset TypeFixed
AudioAudio and Video Verification. Up to 60 sec. pre / 60 sec. post audio recording
BIM Object NameVanderbilt_IntrusionControlPanel_SPC6350320L1
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialMetal, Paint Finish, White, Matte
CategoryIntrusion Control Panel
Classification NameUniclass2015
Classification ValuePr_75_30_30_03
Code Performancen/a
Collision Spacen/a
ColorRAL 9003 (signal white)
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
DescriptionVanderbilt`s SPC6350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (16 on-board), 512 outputs (12 on-board), 32 system keypads, 64 doors, 32 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 120 wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.
Detection Characteristics Rangen/a
DisplayNo
Documentation Certificateswww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vanderbilt-spc6350-320-l1/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470816
Ecology CertificatesRoHS, REACH http://intranet.vanderbiltindustries.com/publish/Environmental_Compliance_Statement/Vanderbilt%20International%20-%20Environmental%20Compliance%20Statement%20-%2024-07-20.pdf
EnvironmentIndoor
EOL ResistorDual 4K7 (default), other resistor combinations selectable
Expected Life0
Features- On board Ethernet - Multi Lingual support - EN50131 compliant - 50136 communications - Long Battery capacity - Front and back tamper - Definable Schedules - Cause and effect engine - Access control functions - Audio and Video Verification
Finishn/a
Graden/a
Housing Protectionn/a
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsN/A
Interface2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)
KeynoteW
LanguagesEnglish German French Spanish Swedish Italian Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialMetal housing (1.5 mm mild steel)
Metadatan/a
Microwaven/a
ModelSPC6350.320-L1
Model NumberV54541-C118-A100
Model ReferenceSPC6350.320-L1
MountingWall
NBS DescriptionAccess control units
NBS Noten/a
NBS Object NameVanderbilt - Access control units
NBS Office Master Tagn/a
NBS Reference90-75-05/430
Nominal Depth157 mm
Nominal Height664 mm
Nominal Length498 mm
Number Of On Board Relays4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current)
Number Of On Board Zones16
Operating CurrentMax. 415 mA at 12 VDC (all relays activated
Operating Temperature0 ~ +40 °C
Outputsn/a
Pet Immunityn/a
Production Year2022
Rangen/a
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), NF A2P (FR), SBSC (SE), F&P (DK), FG (No), (FI), SES (CH), EAR (Ru)
RegionsWorldwide
Relay OutputsYes
Replacement Costn/a
Sensitivity Evaluation Moden/a
ShapeRectangle

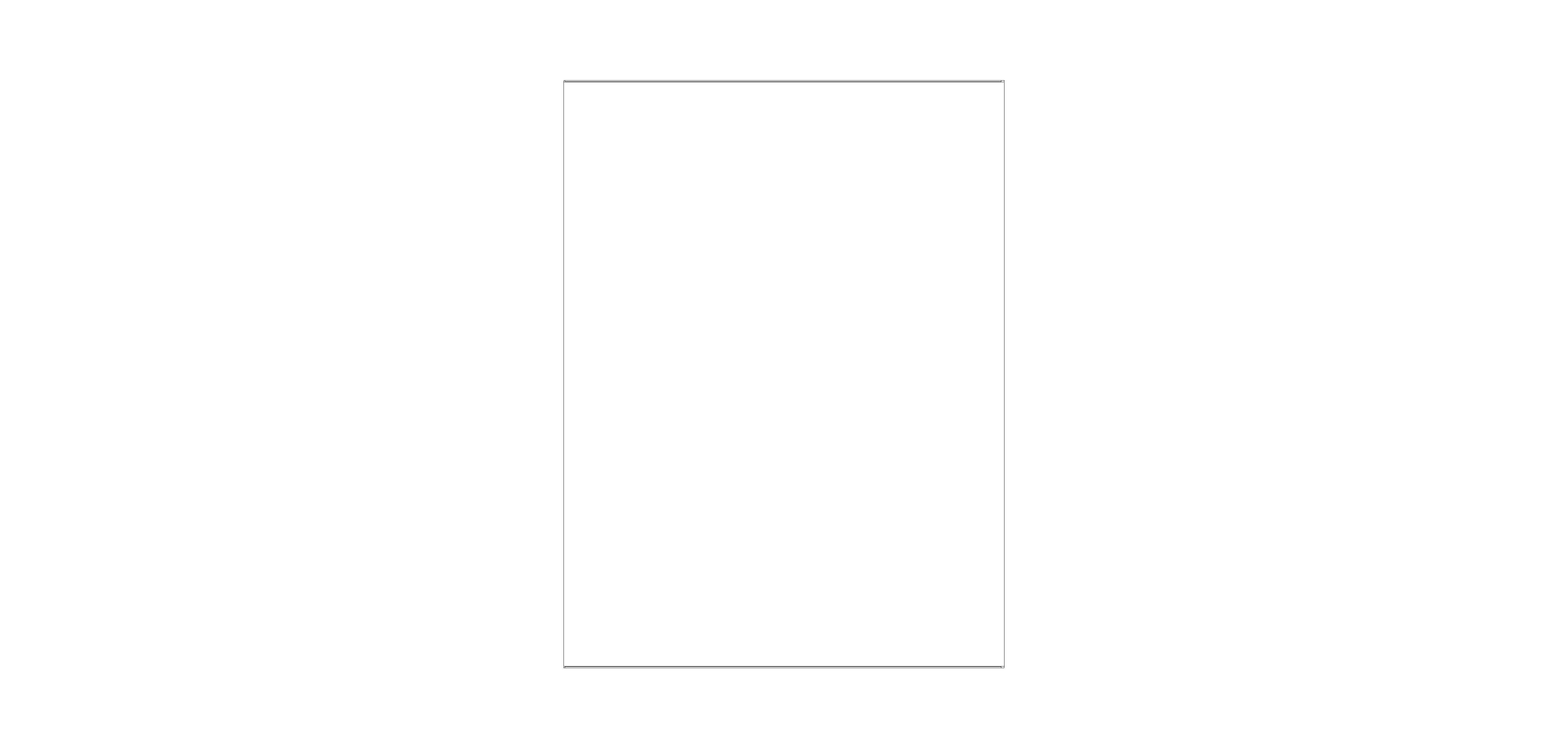

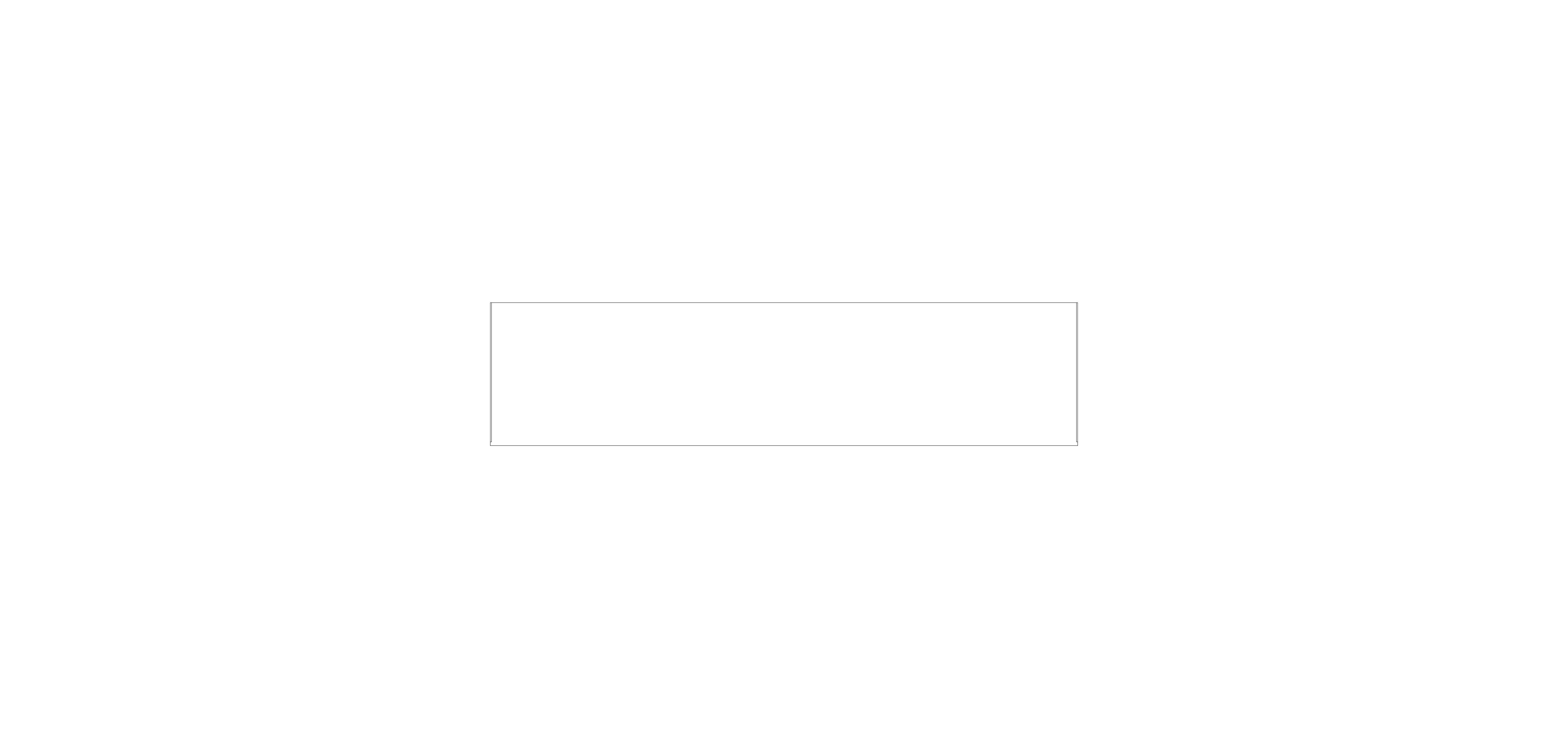

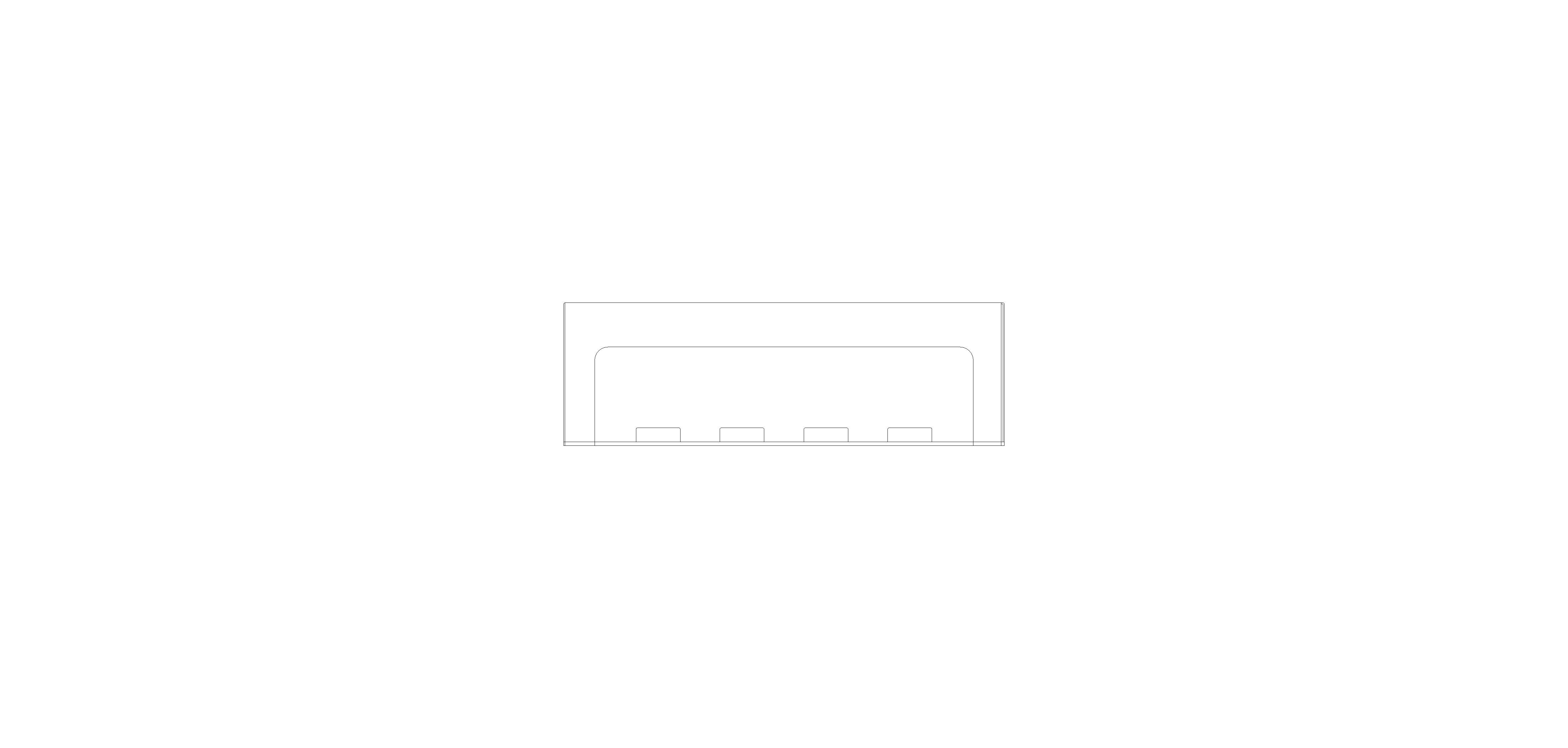

Size498mm(W) x 664mm(H) x 157mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage230 VAC, + 10%/ -15%, 50 Hz
Tamper ProtectionYes
TitleSPC6350.320-L1 Intrusion CP, G5
Type CommentsV54541-C118-A100
Type NameV54541-C118-A100
URLvanderbiltindustries.com/
Verification32 verification zones. 16 verification zones with max. 4 IP-cameras and 16 audio devices.
VideoAudio and Video Verification. Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)
Walking Speedn/a
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight18,6 kg (housing incl. cover), 11,5 kg (housing without cover)
