ECOTURN Photon Mono Basin Mixer (PHO-100FW/SB-CP)

Object metadata

• _Authorsales@vado.com
• _Authorized Bybimstore
• _Bim Spec Guid1
• _BS Bible Version17
• _Created Bywww.vado.com/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/vado-pho-100fw-sb-cp/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NameVADO_BasinMixer_ECOTURN_(PHO-100FW-SB-CP)_Chrome
• Classification NameUniclass 2015
• Classification ValuePr_40_20_87_96
• Code Performancen/a
• ColorChrome
• Constituentsn/a
• Created Bysales@vado.com
• Created On2023-01-23T09:00:00
• Default Elevation1219 mm
• DescriptionPhoton Mono Basin Mixer
• Documentation Certificateswww.bimstore.co/products/vado-pho-100fw-sb-cp/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/vado-pho-100fw-sb-cp/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/vado-pho-100fw-sb-cp/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/vado-pho-100fw-sb-cp/document/maintenance-information

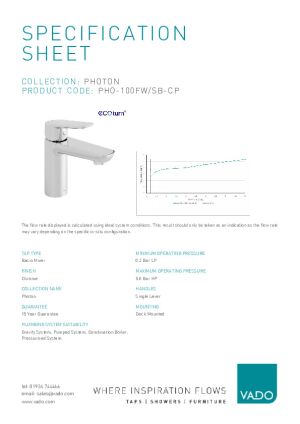

• Documentation Technicalwww.bimstore.co/products/vado-pho-100fw-sb-cp/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finishn/a
• Flow Rate Maximum5.1 l/m at 3 bar pressure
• FormBasin mixer
• Graden/a
• Ifc Export AsIfcValveType
• Ifc Export TypeFAUCET
• KeynoteN13
• Manufacturersales@vado.com
• Manufacturer NameVADO
• MaterialBrass
• Minimum Operating Pressure0.2 bar LP
• ModelPhoton Mono Basin Mixer
• Model NumberPHO-100FW/SB-CP
• Model ReferenceECOTURN
• NBS DescriptionWashbasin manual water supply sets
• NBS Noten/a
• NBS Object NameVADO - Washbasin manual water supply sets
• NBS Office Master Tagn/a
• NBS Reference45-35-70/371
• Nominal Depth0 mm
• Nominal Height160 mm
• Nominal Length160 mm
• Pipe Connector Diameter10 mm
• Production Year2023
• Referenced StandardWRAS Approved
• Replacement Costn/a
• Shapen/a
• Size160 x 160 mm
• Spare Partssales@vado.com
• Tap MaterialVADO_Chrome
• Type CommentsPHO-100FW/SB-CP
• Type NamePhoton Mono Basin Mixer
• URLwww.vado.com/photon-pho-100fwsb-cp
• Warranty Description15 Year
• Warranty Duration Labor0
• Warranty Duration Parts15
• Warranty Duration UnitYears
• Warranty Guarantor Laborguarantee@vado.com
• Warranty Guarantor Partsguarantee@vado.com
