Tyneham Heat Pump - HP 14kw to 18kw

Description

- Commercial air source heat pump for low carbon heating
- Single unit with the refrigeration cycle contained within the outdoor unit
- Inverter controlled compressor to accurately match the heat demand
- Low global warming potential due to the use of R32 refrigerant
- Highly efficient with co-efficiency of performance (COP) rating up to 4.85
- Suited to larger installations - cascade systems to achieve higher output

Object Data

1 Revision

Last Updated

28/11/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

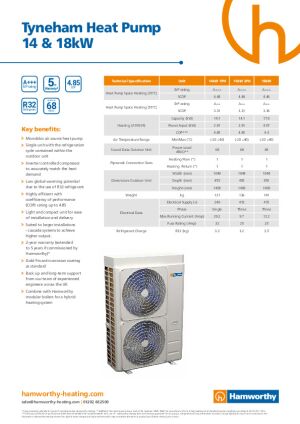

Product Literature

Technical Data Sheet

Object metadata

_Authortechnical@hamworthy-heating.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bytechnical@hamworthy-heating.com
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BIM Object NameHamworthyHeating_HeatPump_Tyneham_HP14to18
Classification NameUniclass2015
Classification ValuePr_70_60_37
Clearance Front1500 mm
Clearance Left400 mm
Clearance Rear400 mm
Clearance Right500 mm
Clearance Top500 mm
Code ArticleAA090927
Code Performancen/a
Colorn/a
Constituentsn/a
Copyright©2022 Hamworthy. All rights reserved.
Created Bytechnical@hamworthy-heating.com
Created On2022-11-01T09:00:00
Depth455 mm
DescriptionR32 14 kW Heat Pump
Documentation Certificateswww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/installation-guide
Documentation Literaturewww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/product-literature
Documentation Maintenancewww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/tyneham-heat-pump-hp-14kw-to-18kw/document/technical-data-sheet
Duration UnitYears
Energy Label Available On Our SitesA+++/A++
Expected Life20
FamilyCollective Heat Pump
Featuresn/a
Finishn/a
Frequency50 Hz
Graden/a
Height1409 mm
Hydraulic Return25 mm
Hydraulic Supply25 mm
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerTypeEnum
KeynoteT32
Length1044 mm
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
Materialn/a
Maximum Power Absorbed6700 W
ModelTyneham 14 kW
Model NumberTyneham 14 kW
Model ReferenceTyneham 14 kW
NBS Descriptionn/a
NBS Noten/a
NBS Object NameHamworthy Heating - Heat pumps
NBS Office Master Tagn/a
NBS Referencen/a
NetworkThree-phase + N + G
Nominal Depth455 mm
Nominal Height1409 mm
Nominal Length1044 mm
Production Year2022
Product Page Linkwww.hamworthy-heating.com/Products/Heat-pumps
Product Warranty5
Protection SignIP24
Referenced Standardn/a
Refrigerant Charge3.2
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partstechnical@hamworthy-heating.com
Spare Parts LinkHamworthy Heating commercial boilers and heating systems (hamworthy-heating.com)
Supply Voltage400 V
Type CommentsTyneham 14 kW
Type NameTyneham 14 kW
Unloaded Weight136
URLwww.hamworthy-heating.com/Products/Heat-pumps/Tyneham-air-source-heat-pump
Warranty Description5 Years
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@hamworthy-heating.com
Warranty Guarantor Partstechnical@hamworthy-heating.com
