Two Part Domestic Drain 150mm with Inlet - Tile / Resin / Concrete

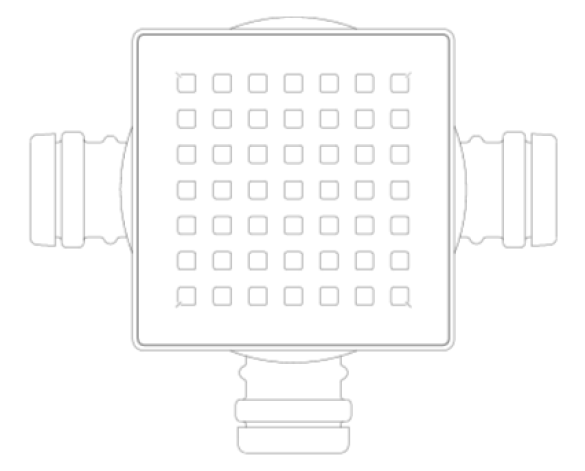

  • Image of Two Part Domestic Drain 150mm with Inlet - Tile / Resin / Concrete

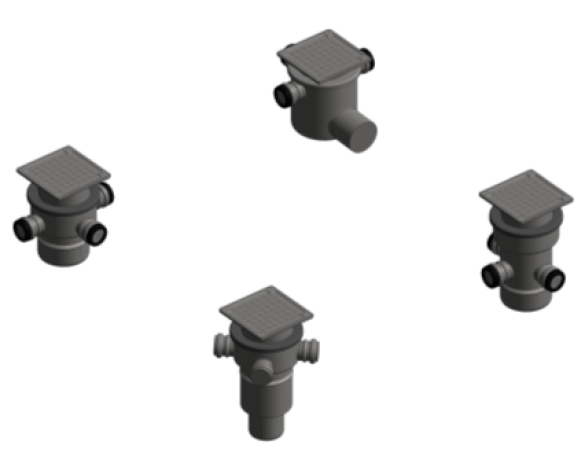

  • Image of Two Part Domestic Drain 150mm with Inlet - Tile / Resin / Concrete
  • Image of Two Part Domestic Drain 150mm with Inlet - Tile / Resin / Concrete
  • Image of Two Part Domestic Drain 150mm with Inlet - Tile / Resin / Concrete
  • Views 18.1k
  • Comments 0
  • Rating3 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/11/2020

Available for:
  • Logo: Autodesk Revit

Floor Drain Two Part, series 111/151/155 with side inlets.

This Download Contains the BLÜCHER® drain for height adjustable concrete/tiled/resin floors with a stainless steel Square 145mm, brushed grating. Flow rate up to 1.7 ltr/sec.

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

  • Horizontal and vertical outlet 40, 50, 75 and 110 mm
  • Series 111 / 151 / 155
  • Screw locking
  • 3 side inlets, 32 / 40 or 50 mm
  • Upper part allows for 10° tilt.
  • Made from acid-pickled stainless steel AISI 304 / EN 1.4301.
  • Designed in accordance with EN1253.

Key Component Features:

  • 360 degree Lower Part
  • User adjustable visibilities
  • Automated product codes
  • Height adjustable
  • User selectable Watertrap
  • User selectable Filter Basket
  • Pre-selected concrete cut out / base concrete slab option for installation purpose

The side outlets are “open”, download the generic plug with this files to close the connectors off.

Products: 111.300.075, 151.300.075, 151.300.110, 111.303.075, 151.303.110, 155.300.110
