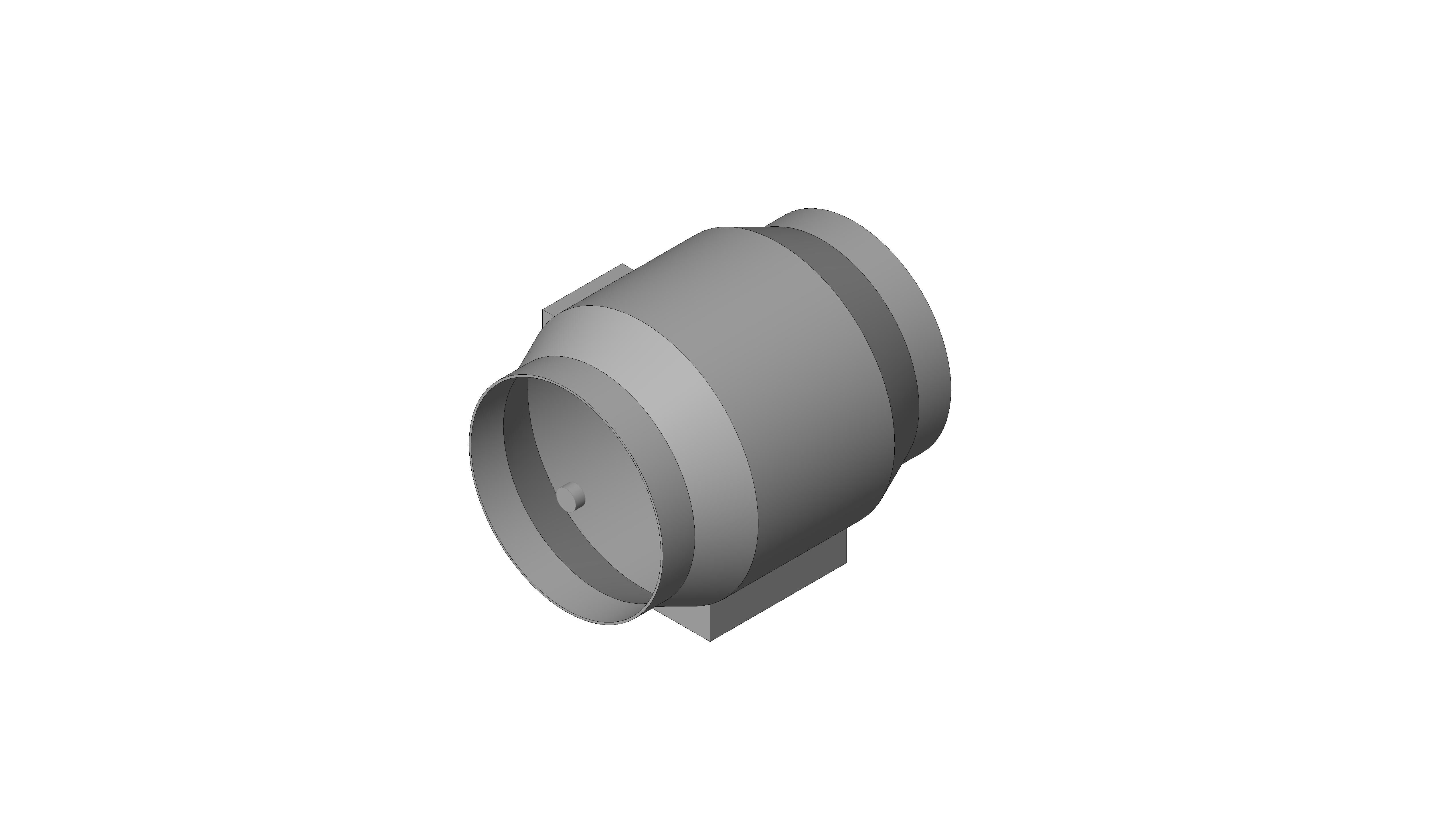

Turbo

Object metadata

• _Authortechnicalsupport@blauberg.co.uk
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created ByBlauberg UK
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/turbo/document/object-user-guide
• Accessibility Performancen/a
• Asset TypeFixed
• BIM Object NameBlauberg_MechanicalEquipment_Turbo
• CAT0Yes
• CAT1Yes
• CAT2Yes
• Certificationby Manifacturer
• Classification NameUniclass2015
• Classification ValuePr_30_59_96
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Bytechnicalsupport@blauberg.co.uk
• Created On2021-09-22T09:00:00
• D100 mm
• DescriptionInline mixed-flow fan
• Documentation Certificateswww.bimstore.co/products/turbo/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/turbo/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/turbo/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/turbo/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/turbo/document/technical-data-sheet
• Duration UnitYears
• EC MotorNo
• Expected Life0
• Featuresn/a
• Finishn/a
• Flow Max245.0 m³/h
• Flow Min180.0 m³/h
• Graden/a
• HH150 mm
• HH249 mm
• HH398 mm
• Ifc Export AsIfcEnergyConversionDeviceType
• Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRHANDLER
• Ingress Protection RatingIPX4
• Injection60.00 °
• L882 mm
• LL1151 mm
• LL2120 mm
• LL365 mm
• LL441 mm
• LL643 mm
• LL798 mm
• ManufacturerBlauberg UK
• Manufacturer NameBlauberg UK
• Mass1.75 kg
• Materialn/a
• Maximum Unit Current0 A
• Maximum Unit Power25 W
• Minimum Unit Current0 A
• Minimum Unit Power23 W
• ModelTurbo 100
• Model Number100
• Model Reference100
• Motor IP RatingIPX4
• NBS DescriptionWall Venting Products
• NBS Object NameBlauberg UK - Wall Venting Products
• NBS Office Master Tagn/a
• NBS Reference90-45-30/340
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• PC123 mm
• PE103 mm
• Production Year2021
• R149 mm
• R298 mm
• R349 mm
• Referenced Standardn/a
• Replacement Costn/a
• RR331 mm
• RR412 mm
• Service Zone148 mm
• Service Zone 1216 mm
• Service Zone 2303 mm
• Shapen/a
• Sizen/a
• Sound Pressure Level At 3m DBA(Min/Max)27/32
• Spare Partsn/a
• Type CommentsInline mixed-flow fan
• Type NameTurbo 100
• URLblaubergventilatoren.de/en/product/turbo-100
• Variable Speed DriveNo
• Voltage230 V
• W500 mm
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
• WW150 mm
• WW252 mm
